QTH Lamp Power Supply, 600-1000 W, Power, Current, Intensity, RS-232/USB
$4,483
In Stock
In Stock
QTH Lamp Power Supply, 45-250 W, Power, Current, Intensity, RS-232/USB
$3,010
In Stock
In Stock

Features

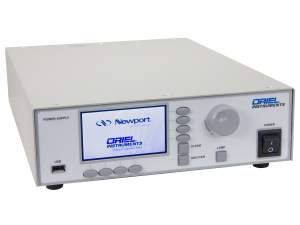

User Interface with Large LCD Display

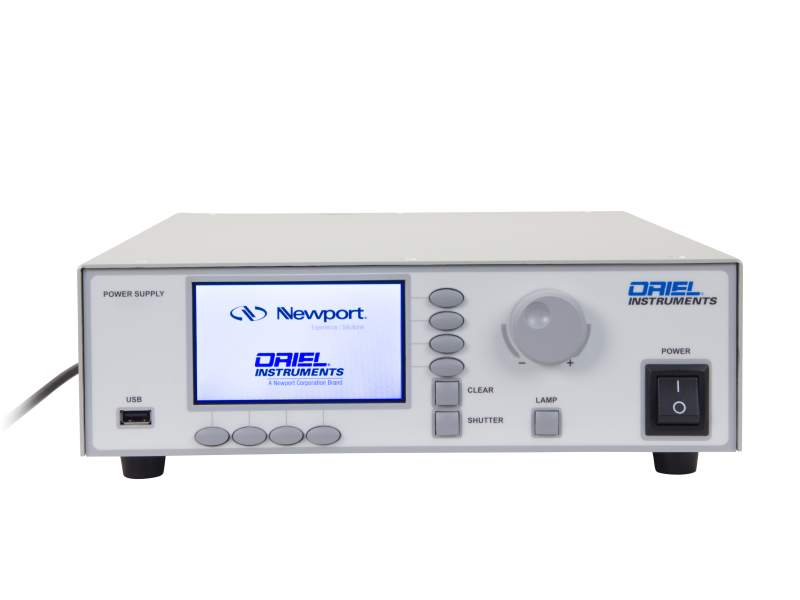

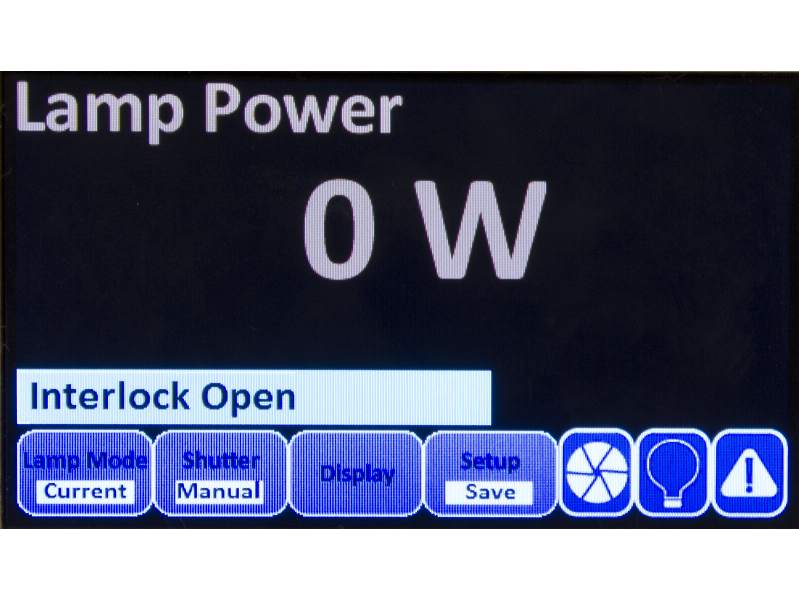

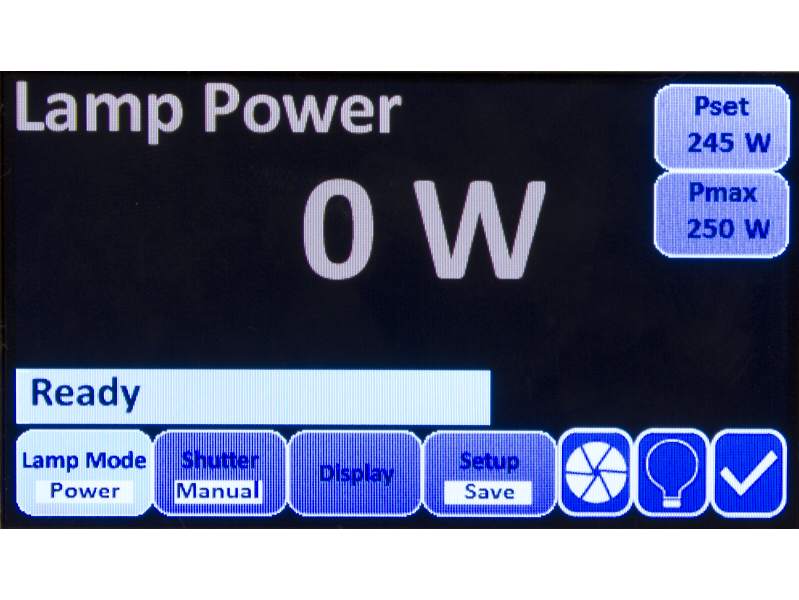

A power switch and all manually controllable features of the OPS model power supplies are accessible from the front panel. Four horizontal push buttons each activate a horizontal menu that allows for configuring of lamp operation mode, shutter, display mode, and setup with the help of a corresponding vertical menu that is activated as well. These functions are conveniently displayed and easily navigated by the LCD display on the front panel of the power supply.

Constant Current, Power, and Intensity Control Modes

The OPS Series power supplies allow the lamp to be operated in power, current, and intensity control modes. There is very little difference in the short term output stability when operating a QTH lamp in constant current or constant power mode. However, the differences appear as the lamp ages. Even with a stable power supply, deposits on the inside of the lamp envelope are visible as the lamp filament degrades, changing the electrical characteristics of the lamp. In Power Mode, the lamp is operated at a constant power setting. As the voltage cannot be changed, the current is raised or lowered to maintain the power at the same level. As the lamp ages, the radiant output decreases. As an IR emitter ages, its resistance may double. However, the lamp life is prolonged. In Current Mode, the lamp is operated at a constant current setting. As the voltage cannot be changed, the power is raised or lowered to maintain the current at the same level. As the lamp ages, the power is increased. This results in greater optical output which to some extent may help compensate for a darkening lamp envelope. However, the lamp life is reduced due to the increase in power. Intensity Mode requires the use of the LIK-LMP light intensity controller kit (details below), also made by Oriel Instruments. When operating in the lamp in Intensity Mode, the user can adjust the Flux Set parameter until the desired output intensity of the lamp is attained. When the desired Flux Set has been established, the user can adjust the Flux Calibration Factor (Flux Cal) setting to change the displayed Lamp Intensity on the LCD screen. Adjusting the Flux Calibration Factor does not change current/power supplied to the lamp or its output intensity. Only the Lamp Intensity displayed on the LCD screen is changed. A photodetector calibrated to NIST or other widely recognized standard is often used to establish a Flux Set. Then, the LIK-LMP is substituted in place of the calibrated detector, and the Flux Calibration Factor is adjusted to output the response of the calibrated detector during operation of the lamp. This saves the user both the cost and inconvenience of returning a photosensor to a metrology lab for re-calibration, that would otherwise be required had the calibrated sensor been used during lamp operation.

Integrated Shutter Control and Timer Features

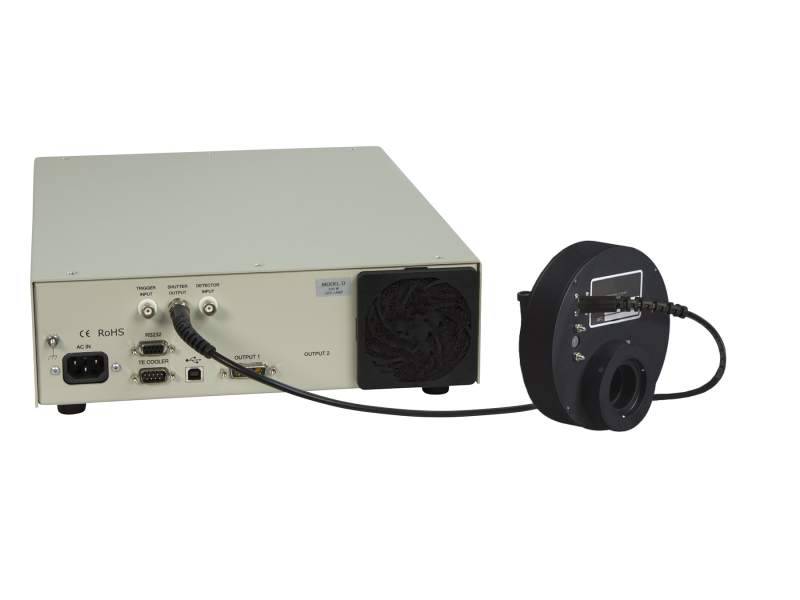

The shutter control feature of the OPS model power supply is useable in power, current, and intensity control modes. Any shutter which responds by opening or closing when receiving a TTL signal can be controlled by the OPS Power Supplies. This includes the low-cost TTL shutter characteristic of Oriel model 71445 and the shutters designed into the Oriel Solar Simulators. A BNC connector is located on the rear panel of the power supply to output these TTL signals to the electronic shutter. The shutter can be manually opened or closed by pressing the SHUTTER button on the front panel of the power supply. RS-232 or USB control of the shutter is possible as well. Utilizing the OPS Power Supply's shutter control feature enables Timed exposure control mode. The exposure or open time of the shutter and number of repeat cycles is set by the user. Exposure times can be paused and resumed at will or reset to 0 in the middle of an exposure with the easy to use push buttons on the front panel.

Configuration Settings

The OPS model power supplies are capable of storing up to four Setups. These Setups consist of lamp operation mode with relevant parameter limits (power, current, flux, etc.) and timing preferences for shutter and dosage control. This allows a user to easily recall previous testing parameters to create a repeatable setup. With 1 s resolution, the OPS Model Power Supply is also capable of logging the hours of operation has been in use to allow the user to be aware of when the lamp’s end of lifetime should be.

Safety Interlock Prevents Accidental Exposure

Newport’s Oriel Power Supplies have a safety interlock feature which must be satisfied before the power supply will power the lamp and which, if broken during operation, will disable the power supply. Overheating of the housing or accidental opening of the door will automatically shut down the power supply.
