Multi-Axis Picomotor™ Piezo Optical Device Alignment Stages

Products
Specifications
Features
Accessories
Resources
Contact Us

Overview

Multi-axis kinematic alignment stages increase the utility of our popular device alignment stages by motorizing each of the axes. The addition of Picomotor™ actuators to each stage allows remote high-resolution (<30 nm) adjustment of various combinations of X, Y, Z, Θx, and Θy.

4-axis, 5-axis, and 6-axis versions
Picomotor piezo actuators with <30 nm resolution
Easily align modulators and isolators

See All Features

Products

Compare	Model	Compatibility	rankScore	Axes of Travel	Thread Type	Availability	Price	Brand
8071 Motorized XYθxθy Tilt Aligner, 3 mm, 8°, 8/32 $4,154 In Stock	8071 Motorized XYθxθy Tilt Aligner, 3 mm, 8°, 8/32	IMPERIAL	1.0	X, Y, θx, θy	8-32	In Stock	$4,154	New Focus
8071-M Motorized XYθxθy Tilt Aligner, 3 mm, 8°, M4 $4,154 2 Weeks	8071-M Motorized XYθxθy Tilt Aligner, 3 mm, 8°, M4	METRIC	1.0	X, Y, θx, θy	M4	2 Weeks	$4,154	New Focus
8081 Motorized XYZθxθy Tilt Aligner, 3 mm, 8°, 1/4-20 $4,695 In Stock	8081 Motorized XYZθxθy Tilt Aligner, 3 mm, 8°, 1/4-20	IMPERIAL	1.0	X, Y, Z, θx, θy	8-32 and 1/4-20	In Stock	$4,695	New Focus
8081-M Motorized XYZθxθy Tilt Aligner, 3 mm, 8°, M6 $4,695 In Stock	8081-M Motorized XYZθxθy Tilt Aligner, 3 mm, 8°, M6	METRIC	1.0	X, Y, Z, θx, θy	M4 and M6	In Stock	$4,695	New Focus
8082 Motorized Tilt Aligner, XYZθxθy, 3 mm Linear, 8 Degree, 1/4-20 Thread $4,647 In Stock	8082 Motorized Tilt Aligner, XYZθxθy, 3 mm Linear, 8 Degree, 1/4-20 Thread	IMPERIAL	1.0	X, Y, Z, θx, θy	8-32 and 1/4-20	In Stock	$4,647	New Focus
8082-M Motorized Tilt Aligner, XYZθxθy, 3 mm Linear, 8 Degree, M6 Thread $4,695 In Stock	8082-M Motorized Tilt Aligner, XYZθxθy, 3 mm Linear, 8 Degree, M6 Thread	METRIC	1.0	X, Y, Z, θx, θy	M4 and M6	In Stock	$4,695	New Focus
8095 Motorized XYZθxθyθz Aligner, 3 mm, 4°, 1/4-20 $5,201 In Stock	8095 Motorized XYZθxθyθz Aligner, 3 mm, 4°, 1/4-20	IMPERIAL	1.0	X, Y, Z, θx, θy, θz	1/4-20	In Stock	$5,201	New Focus
8095-M Motorized Device Aligner, Wide, XYZθxθyθz, 3 mm, 4°, M6 $5,201 Show	8095-M Motorized Device Aligner, Wide, XYZθxθyθz, 3 mm, 4°, M6	METRIC	1.0	X, Y, Z, θx, θy, θz	M6	Show	$5,201	New Focus

Show All

Specifications

Models	8071	8081	8082	8095
Axes of Travel	X, Y, θx, θy	X, Y, Z, θx, θy	X, Y, Z, θx, θy	X, Y, Z, θx, θy, θz
Mechanism	Kinematic	Kinematic	Kinematic	Kinematic
Drive Type	Picomotor	Picomotor	Picomotor	Picomotor
Travel Range	3 mm	3 mm	3 mm	3 mm
Angular Range	8°	8°	8°	4°
Load Capacity	13 N	13 N	13 N	13 N
Minimum Incremental Motion	<30 nm	<30 nm	<30 nm	<30 nm
Angular Resolution	θ_x, θ_y≤0.7 µrad	θ_x, θ_y≤0.7 µrad	θ_x, θ_y≤0.7 µrad	θ_x, θ_y, θ_z≤0.2 µrad
Connector Type	6-pin Connectors (2)	6-pin Connectors (2)	6-pin Connectors (2)	4-pin Connectors (6)
Operating Temperature	10 to 40°C	10 to 40°C	10 to 40°C	10 to 40°C
Thread Type ¹	8-32	8-32 and 1/4-20	8-32 and 1/4-20	1/4-20

Notes:

-M metric versions feature metric threads.

Specifications

Models	8071	8081	8082	8095
Axes of Travel	X, Y, θx, θy	X, Y, Z, θx, θy	X, Y, Z, θx, θy	X, Y, Z, θx, θy, θz
Mechanism	Kinematic	Kinematic	Kinematic	Kinematic
Drive Type	Picomotor	Picomotor	Picomotor	Picomotor
Travel Range	3 mm	3 mm	3 mm	3 mm
Angular Range	8°	8°	8°	4°
Load Capacity	13 N	13 N	13 N	13 N
Minimum Incremental Motion	<30 nm	<30 nm	<30 nm	<30 nm
Angular Resolution	θ_x, θ_y≤0.7 µrad	θ_x, θ_y≤0.7 µrad	θ_x, θ_y≤0.7 µrad	θ_x, θ_y, θ_z≤0.2 µrad
Connector Type	6-pin Connectors (2)	6-pin Connectors (2)	6-pin Connectors (2)	4-pin Connectors (6)
Operating Temperature	10 to 40°C	10 to 40°C	10 to 40°C	10 to 40°C
Thread Type ¹	8-32	8-32 and 1/4-20	8-32 and 1/4-20	1/4-20

Notes:

-M metric versions feature metric threads.

Features

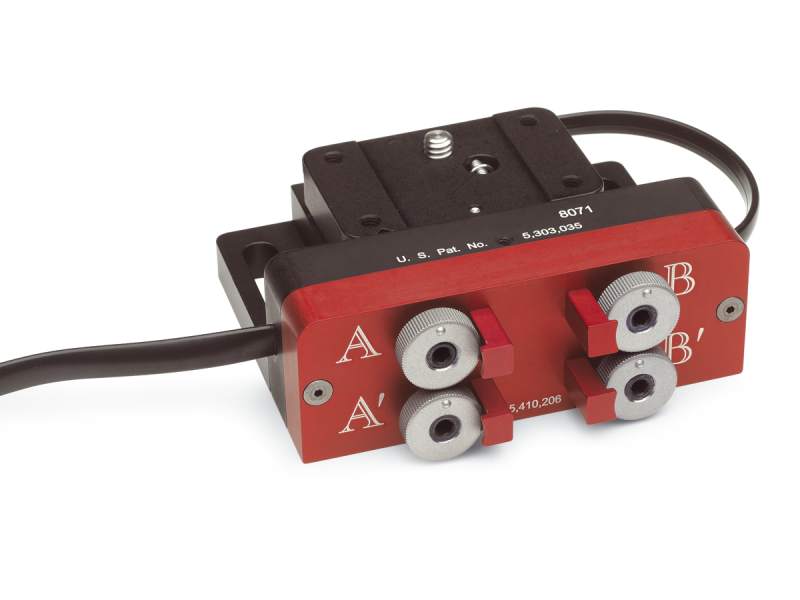

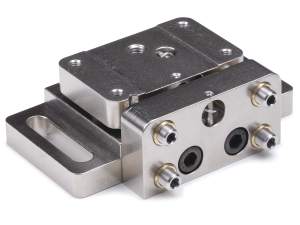

Four-Axis Tilt Aligner

The Model 8071 Four-Axis Tilt Aligner offers XYΘxΘy Picomotor adjustment and allows intuitive alignment of optical tubes or paths with an input and an output such as electro-optic or acousto-optic modulators or lenses. All motions are independent and connected to a single base, so you won’t induce coupled motion while making adjustments. This XYΘxΘy Picomotor Aligner is ideal for positioning modulators or isolators and for coupling light into waveguide devices. It is offered with English or metric tapped holes.

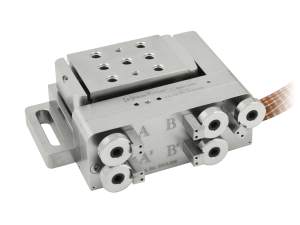

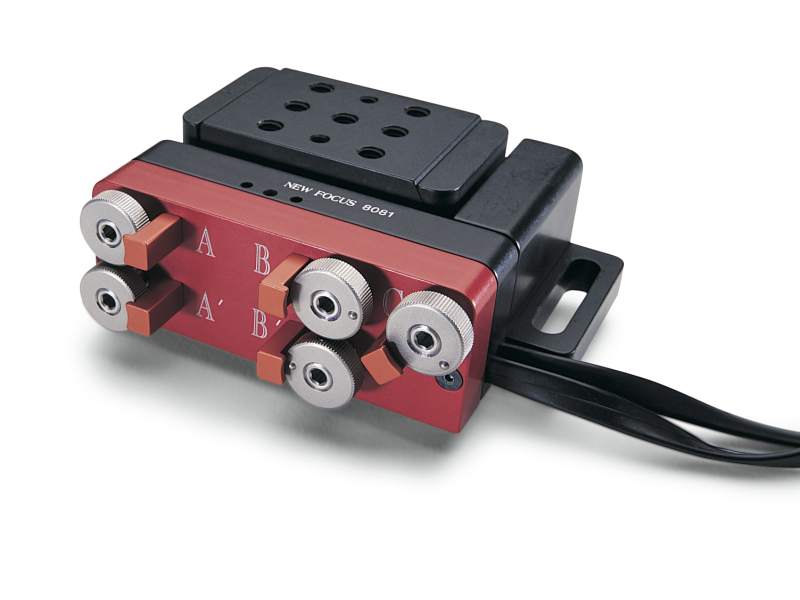

Five-Axis Tilt Aligner

The Model 8081 Five-Axis Tilt Aligner allows the same precise translation as the Four-Axis Aligner but adds Z adjustment along the optical axis to the single-component alignment stage. All motions are independent and connected to a single base, so you won’t induce coupled motion while making adjustments. This XYZΘxΘy Picomotor Aligner features a removable mounting platform and is ideal for positioning optical modulators or isolators and for coupling light into waveguide devices. It is offered with English or metric tapped holes.

Six-Axis Tilt Aligner

The Model 8095 six-axis aligner offers XYZΘxΘyΘz Picomotor adjustment making it ideal for semiconductor-wafer alignment. It is offered with English or metric tapped holes.

Picomotor Technology

These multi-axis kinematic alignment stages are equipped with Picomotor actuators which are ideal devices for fine-positioning and long-term stability. The Picomotor actuators have a less than 30 nm resolution with minimal backlash and maintain their position with no power applied. These features make the Picomotor actuators unique among motion-control devices and an ideal choice for typical set-and-hold applications.

Multi-axis Optic Positioning in a Compact Unit

Kinematic Device Alignment Stages combine the capabilities of multiple, stacked translation stages into a single stage with multiple actuators. These stages are designed to align a device or optic, such as an acousto-optic modulator, to a beam path, avoiding the added wobble of combining components for multi-axis positioning. These stages have all degrees of freedom needed to align one optical axis to another. The five-axis stages provide additional control of the focus and the six-axis stage provides roll. Each degree of freedom has one actuator for motion, such that two actuators provide translation when moved equal amounts, while one actuator's motion provides the tilt about the bisecting axis. Rotations of the mounting plate around its center, then, arise from turning two actuator screws in opposite directions.

Move Your Optic or Isolator Instead of Beam

Our multi-axis stages are designed for applications where precise positioning and high stability are required. Shown here is a typical application of aligning an optical modulator to a laser beam with our four-axis device alignment stage.
