Mounting Plate Kit, Optical Table, 8742 and 8743-CL Controller/Driver
Mounting Plate Kit, Optical Table, 8742 and 8743-CL Controller/Driver
Model: 8745-MTG-KIT
Product Series Overview

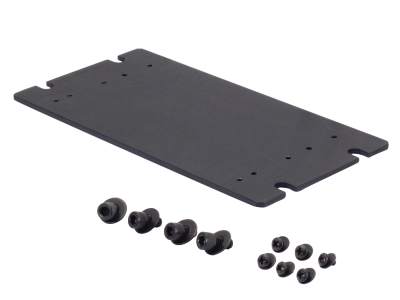

Picomotor Motion Controller AccessoriesThe 8745-MTG-KIT includes the mounting plate along with 1/4-20 screws for the 874X Controller/Driver to be securely fastened to a non-metric optical table surface. The mounting plate allows the controller/driver to be mounted either horizontally or vertically.
Resources & Downloads
Literature
8742_Datasheet(866 kB, PDF) 8743-CL Datasheet(503 kB, PDF)
Drawings & CADs
8745-MTG-KIT.pdf(104.3 kB, PDF)
