Mirror Mount Fiber Optic Adapters
Mirror Mount Fiber Optic Adapters

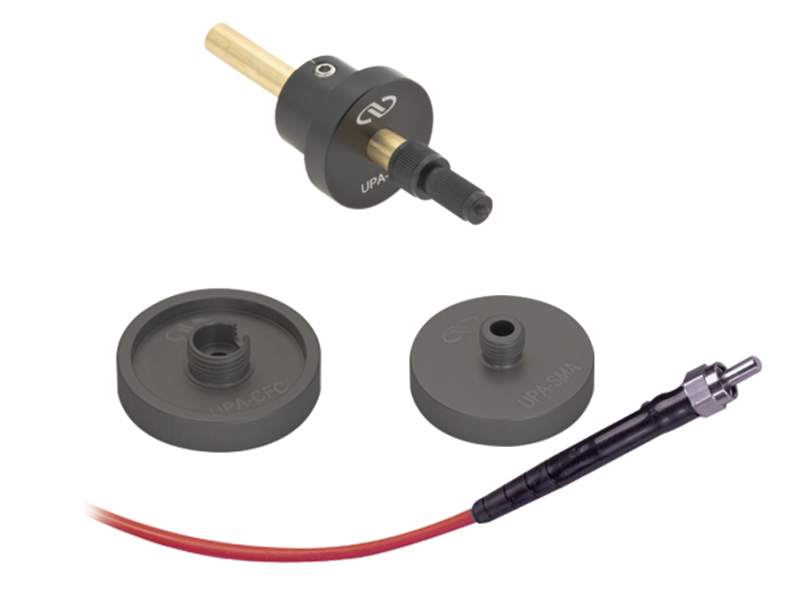

These fiber optic adapters allow users to quickly adapt fiber optic components with standard mounts.
- SMA, FC, FCA adapters for 25.4 mm mounts
- Fiber chuck adapter for 25.4 mm mounts
- Versatile and easy to use See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | UPA-CFCFiber Adaptor, FC, 1 in. Dia. I/F, 0.20 thick | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | UPA-FCAFiber Adaptor, FCA, 1 in. Dia. I/F, 0.20 thick | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | UPA-SMAFiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | UPA-FCFiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Fiber Chuck Adapter
The UPA-FC adapts standard 0.25 in. diameter fiber chucks to 1 in. Optic Mounts. It secures the fiber chuck with a single set screw and has a reference mark for use with the degree scale on the 561-RFC (shown), fiber chuck rotation mount.

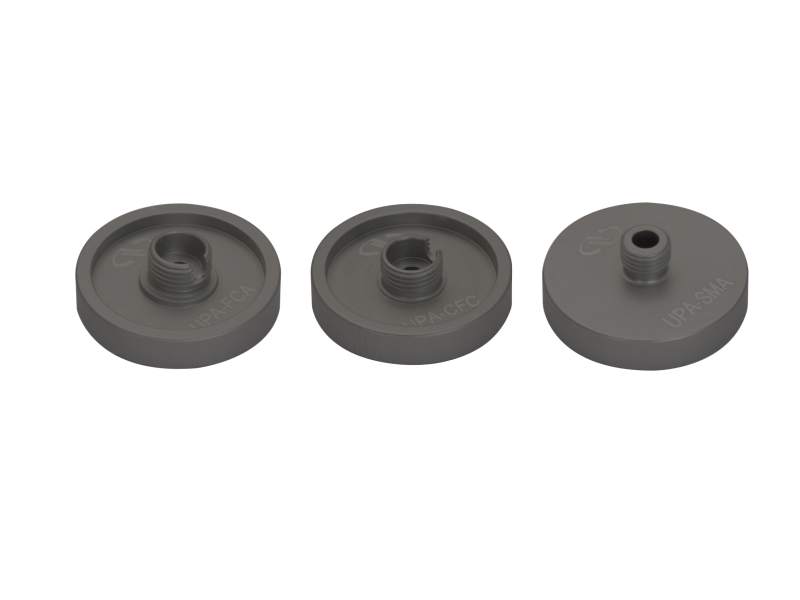

SMC, FC, FCA Adapters
These fiber optic adapters hold connectorized fibers having SMA, FC, or FCA terminations. They are designed to fit into mirror mounts, lens mounts or any other mount that can hold a 25.4 mm diameter optic.
Compatible with 1-in.Mounts

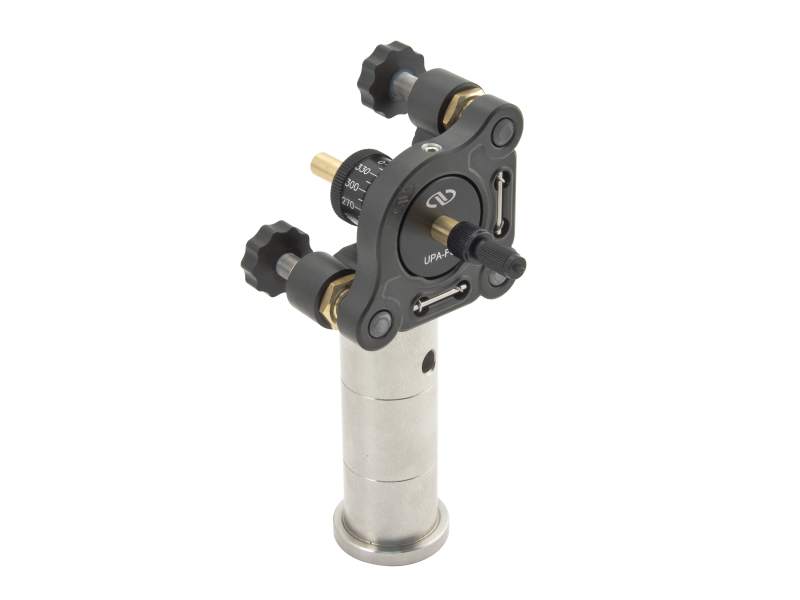

All of the UPA series fiber adapters are compatible with 1-in. diameter mirror mounts. Shown here is the Suprema® SX100-F2KN-254 mirror mount holding a bare fiber using the UPA-FC fiber chuck adaptor and the 561-RFC fiber chuck.
Accessories
Fiber Chucks
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FPH-DJFiber Chuck, Delrin-Jawed, 300-1000 micron Fiber | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | FPH-JFiber Chuck, Teflon Lined, 125-250 micron Fiber | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | FPH-SFiber Holder, 80–200 micron Fiber | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | FPH-SRStrain Relief, Bare Fiber, Delrin Jaws | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 561-RFCFiber Chuck Rotation Mount, 561 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Fiber Patch Cables
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-MBB-C-3FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 3 m, FC. |

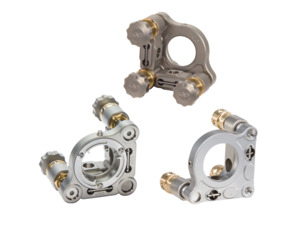

Compatible 1-in. Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | U100-A2KMirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9807Mirror Mount, Classic, Center, 1.0 in., 3 Knobs | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LH-1DBMirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | HVM-1iMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SU100-F2KMirror Mount, Suprema®, 1.0 in, Two 100 TPI Locking Knob Actuators | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Fiber Aligners
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9016NFFive-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9095Five-Axis Fiber Launcher, Flexure Design, Bare | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9091Optical Fiber Positioner, XYZθXθY, Singlemode, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | FPR-2AFiber Optic Positioner, XYZθxθyθz, Bare, FPH-S,FPH-J, or FPH-DJ | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
