Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32

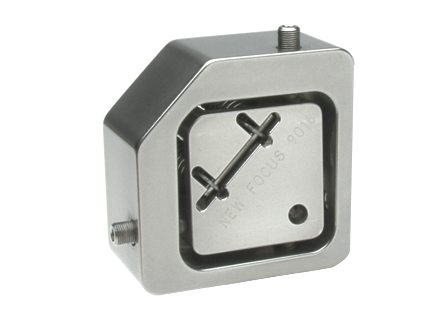

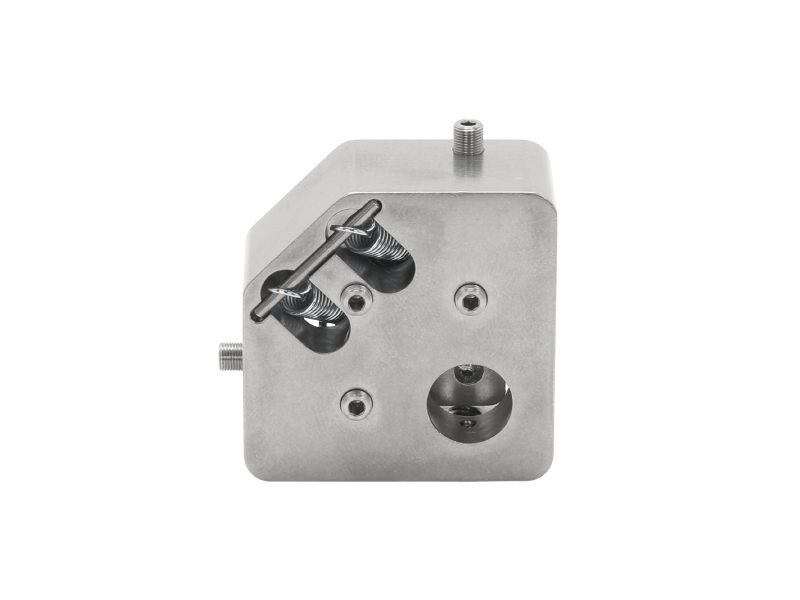

The 9016NF Tiny Fiber Positioner is similar to our Model 9091 single-mode-fiber positioner. It achieves superior stability by mounting a single stage within a solid base and following pure kinematic principles to move the stage. Five degrees of freedom are obtained with minimal slop or error. Perfect for applications where you need precision but don't have a lot of space. 8-32 mounting thread.
Resources & Downloads
2D Product Drawings
9016c-Drawing(189.7 kB, PDF)
