Overview

These multimode positioners utilize the compact flexure mechanism to offer two- or five-axis control of positioning in with a minimal, post-mounted design. Five-axis positioners are available in a miniature, space-saving design, and all positioners provide 4.4 µm resolution per 5° turn in XY.

Two- or five-axis control of motion available
Flexure motion positioning aligns multimode fibers easily
Five-axis positioners in a miniature design saves space

See All Features

Products

Showing 5 of 5 total products

Compatibility:

Show entries

Search:

Compare	Model		Axes of Travel	Fiber Type	Travel Range	Optical Axis Height	Availability	Price	Brand
9051 XY Fiber Launcher, Flexure Design, Bare, 8-32 $310.00 In Stock	9051 XY Fiber Launcher, Flexure Design, Bare, 8-32	1.0	X, Y	Multimode	3 mm	25.4 mm	In Stock	$310.00	New Focus
9051-M XY Fiber Launcher, Flexure Design, Bare, M4 $310.00 In Stock	9051-M XY Fiber Launcher, Flexure Design, Bare, M4	2.0	X, Y	Multimode	3 mm	25.4 mm	In Stock	$310.00	New Focus
9095 Five-Axis Fiber Launcher, Flexure Design, Bare $467.00 In Stock	9095 Five-Axis Fiber Launcher, Flexure Design, Bare	3.0	X, Y, Z, θx, θy	Multimode	3 mm	25.4 mm	In Stock	$467.00	New Focus
9016NF Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32 $653.00 In Stock	9016NF Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32	4.0	X, Y, Z, θx, θy	Multimode	3 mm	9.6 mm	In Stock	$653.00	New Focus
9016-M Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, M4 $653.00 In Stock	9016-M Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, M4	5.0	X, Y, Z, θx, θy	Multimode	3 mm	9.6 mm	In Stock	$653.00	New Focus

Showing 1 to 5 of 5 entries

Previous1Next

Specifications

Search:

Models	9051 Model: 9051 XY Fiber Launcher, Flexure Design, Bare, 8-32 $310.00 In Stock See Full Product Details Product Series Overview Multimode Fiber Positioners	9051-M Model: 9051-M XY Fiber Launcher, Flexure Design, Bare, M4 $310.00 In Stock See Full Product Details Product Series Overview Multimode Fiber Positioners	9095 Model: 9095 Five-Axis Fiber Launcher, Flexure Design, Bare $467.00 In Stock See Full Product Details Product Series Overview Multimode Fiber Positioners	9016NF Model: 9016NF Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32 $653.00 In Stock See Full Product Details Product Series Overview Multimode Fiber Positioners	9016-M Model: 9016-M Five-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, M4 $653.00 In Stock See Full Product Details Product Series Overview Multimode Fiber Positioners
Axes of Travel	X, Y	X, Y	X, Y, Z, θx, θy	X, Y, Z, θx, θy	X, Y, Z, θx, θy
Travel Range	3 mm	3 mm	3 mm	3 mm	3 mm
Angular Range			8 ° - θ_x, θ_y	5 ° - θ_x, θ_y	5 ° - θ_x, θ_y
Fiber Type	Multimode	Multimode	Multimode	Multimode	Multimode
Optical Axis Height	25.4 mm	25.4 mm	25.4 mm	9.6 mm	9.6 mm
Thread Type	8-32	M4	8-32 (M4) CLR	8-32	M4
Sensitivity	X,Y: 0.88 µm	X,Y: 0.88 µm	X,Y: 0.88 µm Z: 0.88 µm θx,θy: 4.4 arcsec	X,Y: 0.88 µm Z: 0.88 µm θx,θy: 14.3 arcsec	X,Y: 0.88 µm Z: 0.88 µm θx,θy: 14.3 arcsec

Showing 1 to 7 of 7 entries

Features

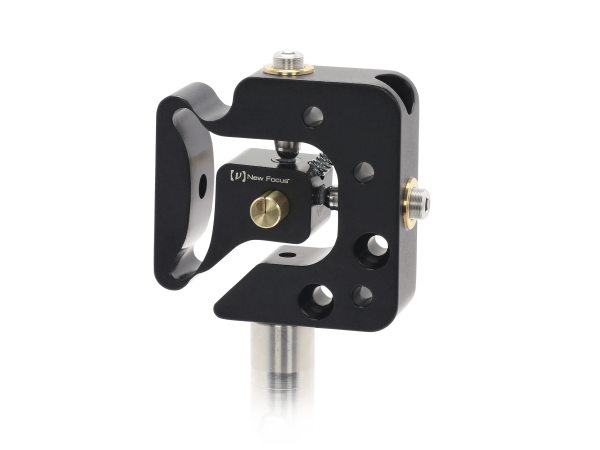

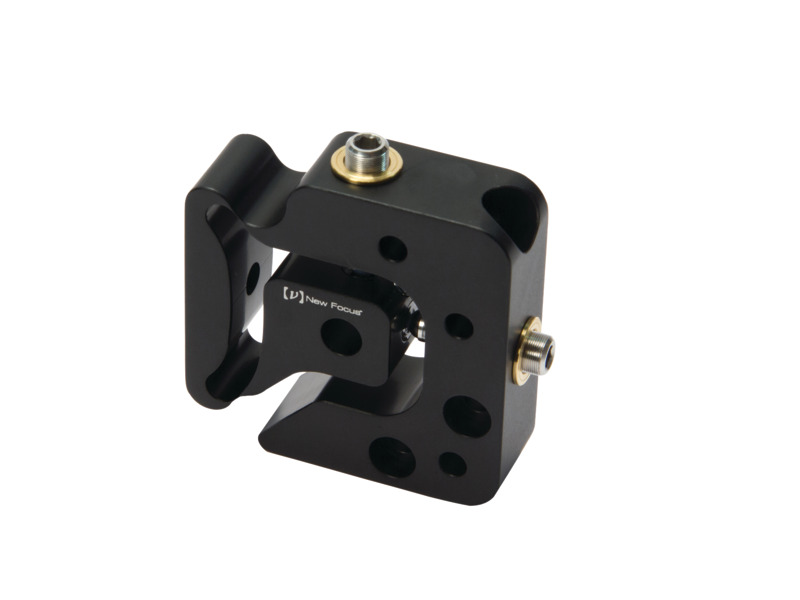

Flexure Design for Smooth and Reliable XY Positioning

The model 9051 XY fiber launcher’s unique ﬂexure design doesn't rely on bearings to provide smooth, stictionless motion when coupling light from free-space into multimode fibers. Each axis of motion has 0.125 in. ( 3 mm) of range and provides 4.4 µm resolution per 5° turn of the positioning screw, tightened by an Allen key. The positioner can be mounted to an optical post or pedestal riser, as well as a flat surface using a threaded 8-32 hole (or M4 for metric versions). A nylon-tipped setscrew secures the fiber chuck for alignment. The Model 9092 coupler body is compatible with this positioner for coupling to microscope objectives.

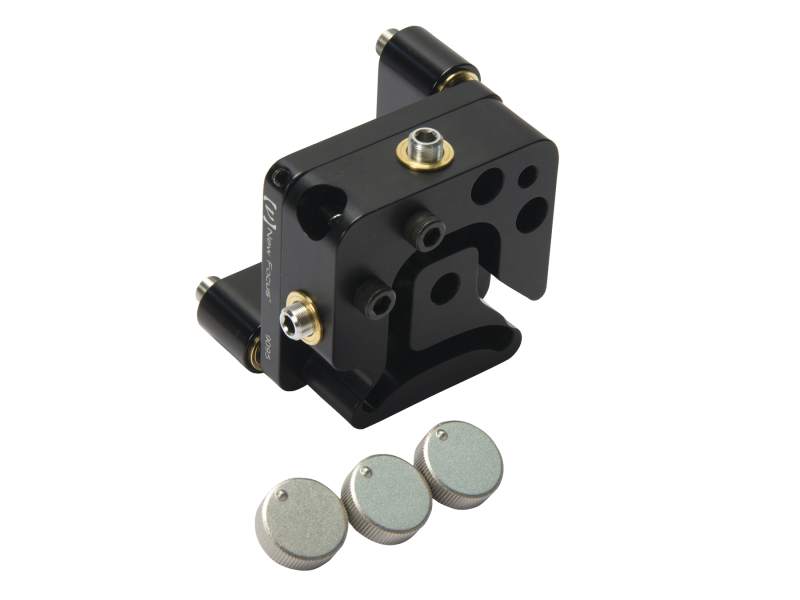

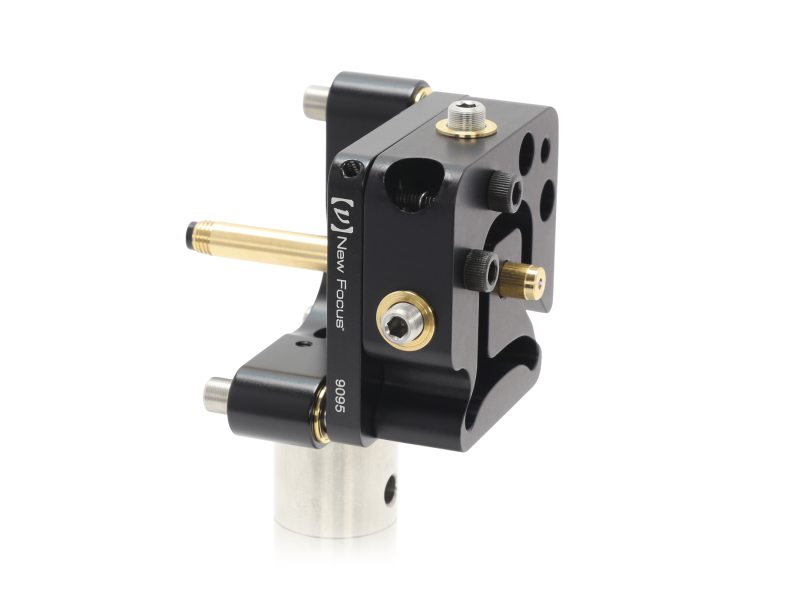

Fiber Launcher Provides Five-axis Alignment Control

The model 9095 free-space to Multimode Fiber Launcher combines the Model 9051 XY fiber positioner with a modified Model 9807 mirror mount to offer a cost-saving, five-axis multimode-fiber launcher. The mirror mount contributes tip, tilt, and (from their coupling) Z translation for fully granular alignment control. The additional axes each have an 8° range of motion.

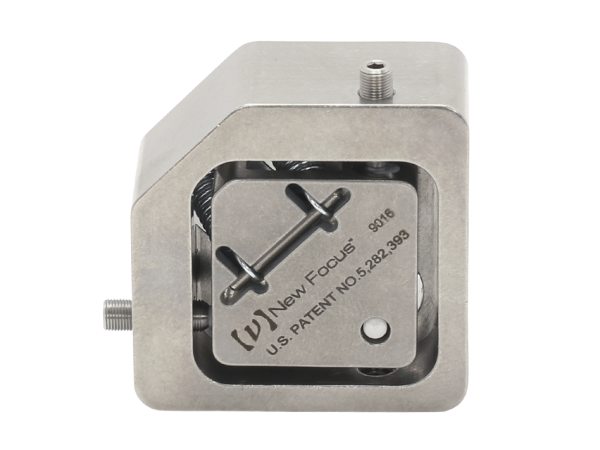

Tiny Multimode Fiber Positioner with Five Degrees of Freedom

The model 9016NF Tiny Fiber Positioner uses a flexure design to provide smooth motion to fiber alignment for its five degrees of freedom. Using a similar architecture to our Model 9091 Single-Mode-Fiber positioner, this single-unit component provides the same 4.4 µm resolution per 5° with a compact design to fit in confined spaces. The components mounts to optical pedestals and posts with a threaded mounting hole, available with either 8-32 threads or M4 threads.
