9095 Five-Axis Fiber Launcher

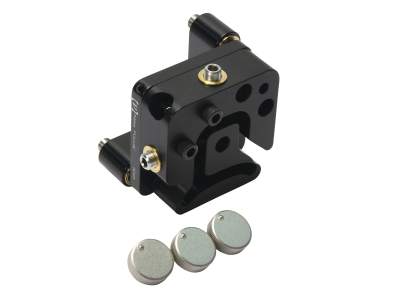

Five-Axis Fiber Launcher, Flexure Design, Bare

Model: 9095

$467.00

In Stock

Compare

Add to List

Product Series Overview

Multimode Fiber Positioners

The 9095 Optical Fiber Launcher combines our Model 9051 XY fiber positioner with a modified Model 9807 mirror mount, resulting in an inexpensive five-axis multimode-fiber launcher with 4.4-μm resolution. The mirror mount contributes tilt and Z translation to the X-Y motion of the flexure mount, resulting in a total of five degrees of freedom.

Specifications

Technical Specs

Axes of Travel

X, Y, Z, θx, θy
Fiber Type

Multimode
Travel Range

3 mm
Optical Axis Height

25.4 mm

Angular Range

8 ° - θ_x, θ_y
Sensitivity

X,Y: 0.88 µm
Z: 0.88 µm
θx,θy: 4.4 arcsec
Thread Type

8-32 (M4) CLR

Axes of Travel

X, Y, Z, θx, θy
Fiber Type

Multimode
Travel Range

3 mm
Optical Axis Height

25.4 mm

Angular Range

8 ° - θ_x, θ_y
Sensitivity

X,Y: 0.88 µm
Z: 0.88 µm
θx,θy: 4.4 arcsec
Thread Type

8-32 (M4) CLR

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9095b-Drawing (113 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
FPH-S Fiber Holder, 80–200 micron Fiber	UNIVERSAL	In Stock	$102.00
FPH-S-2.5 Fiber Holder, 80–200 micron Fiber, Extended	UNIVERSAL	In Stock	$102.00
FPH-DJ Fiber Chuck, Delrin-Jawed, 300-1000 micron Fiber	UNIVERSAL	2 Weeks	$122.00
FPH-J Fiber Chuck, Teflon Lined, 125-250 micron Fiber	UNIVERSAL	In Stock	$122.00
