Fiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts

Fiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts

Model: UPA-FC

$27.00

In Stock

Compare

Add to List

Product Series Overview

Mirror Mount Fiber Optic Adapters

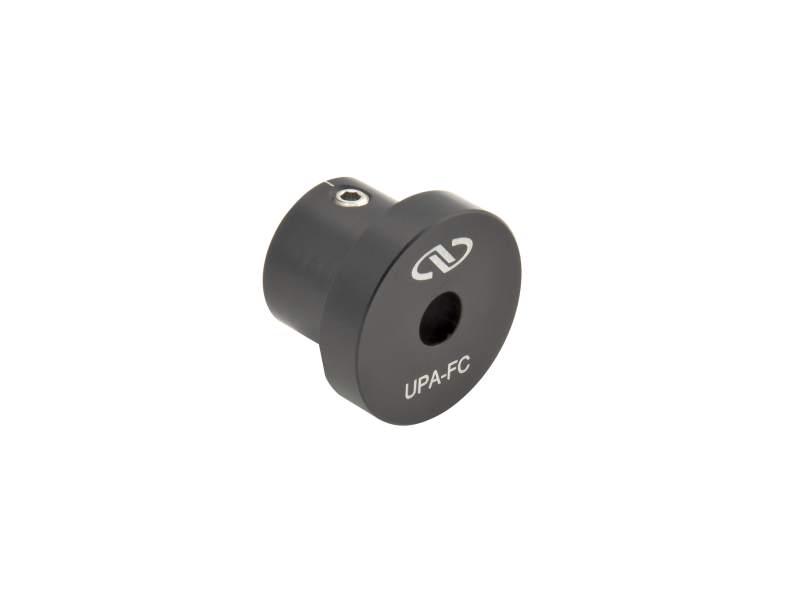

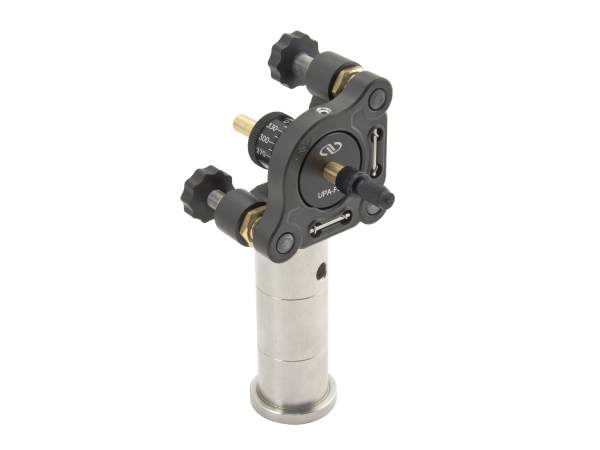

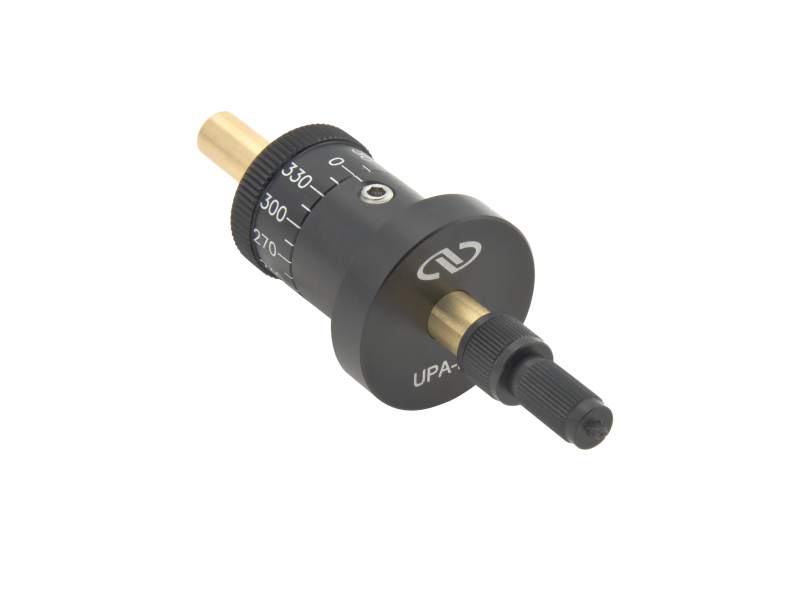

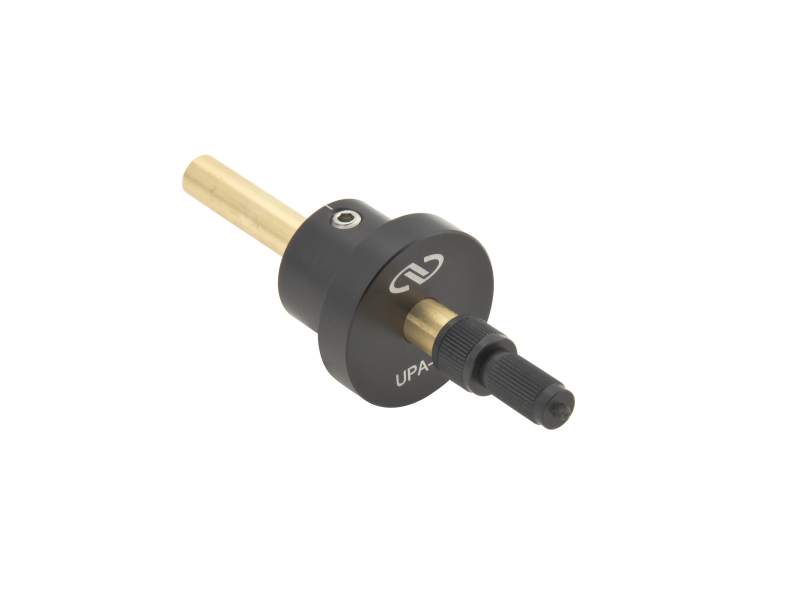

The UPA-FC adapts standard 0.25 in. diameter fiber chucks to 1 in. Optic Mounts. It is designed to fit into mirror mounts, lens mounts or any mount that can hold a 1 in. diameter optic. It secures the fiber chuck with a single set screw and has a reference mark for use with the degree scale on the 561-RFC, fiber chuck rotation mount.

Specifications

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA-FC-327 (95.5 kB, PDF)

Other

UPA-FC_RoHS2021.pdf (680.9 kB, PDF)
