Compare Model Drawings, CAD & Specs Availability Price
Compact Cable Clamp, FPH Series
$80
In Stock
In Stock
Fiber Chuck, SMA Connectorized Fiber
$223
In Stock
In Stock
Fiber Chuck, FC Connectorized Fiber
$230
In Stock
In Stock
Fiber Chuck, ST Connectorized Fiber
$212
In Stock
In Stock
Fiber Chuck, LC Connectorized Fiber
$212
2 Weeks
2 Weeks
Fiber Chuck, SC Connectorized Fiber
$212
In Stock
In Stock
Fiber Chuck, Delrin-Jawed, 300-1000 micron Fiber
$95
In Stock
In Stock
Fiber Chuck, Teflon Lined, 250 micron Fiber and Smaller
$95
In Stock
In Stock
Fiber Holder, 80–200 micron Fiber
$80
In Stock
In Stock
Optical Fiber Chuck, Photonic Crystal Fiber
$57
In Stock
In Stock
Fiber Holder, 80–200 micron Fiber, Extended
$80
In Stock
In Stock
Strain Relief, Bare Fiber, Delrin Jaws
$30
In Stock
In Stock

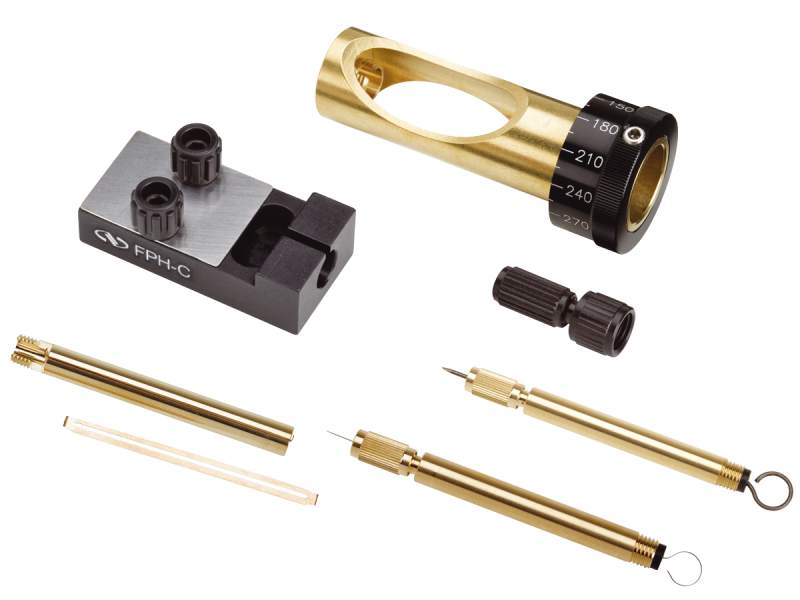

Features

Fiber Chucks for 80 µm to 1 mm Diameter Bare Fibers

Fiber chucks in this series are made to easily attach and terminate bare optical fibers for mounting and coupling to optical systems. Models FPH-S and FPH-S-2.5 hold 80-200 micron diameter optical fibers using a unique, stress free spring-leaf assembly. FPH-J is a Teflon lined chuck for optical fibers < 250 µm in diameter. Model FPH-DJ is a Delrin-Jawed chuck, suitable for larger fibers between 300 µm to 1 mm diameter.

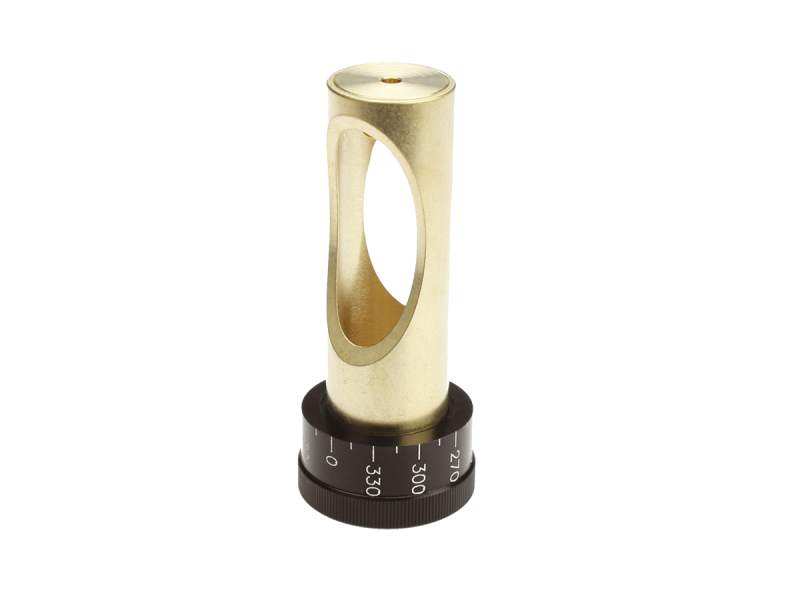

Fiber Holders for a Variety of Connectorized Fiber Mounts

Newport offers fiber holders for a variety of connectorized holder types. Models FPH-CA3, FPH-CA4, FPH-CA6, FPH-CA8, and FPH-CA9 are compatible with SMA, FC, ST, LC, and SC connectors, respectively.

Accessories for Optimal Fiber Coupling

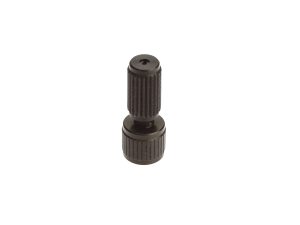

A strain relief boot, model FPH-SR, is available to provide support between a bare fiber and the terminating chuck. Once connectorized, the FPH-C Cable Clamp is compatible with FPH Series chucks and holders. It slips over the end of the fiber holder to grip the cable and relieve any stress applied to the fiber by the weight of the cable.
