Compare Model Drawings, CAD & Specs Center Wavelength FWHM Minimum Peak Transmission Availability Price
Optical Filter, Mercury Line, 25.4 mm, 253.7±3 nm Center, 11±3nm FWHM
$369
In Stock
253.7 nm 11±3 nm 12%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 313.0±3 nm Center, 11±3nm FWHM
$369
In Stock
313.0 nm 11±3 nm 12%
In Stock

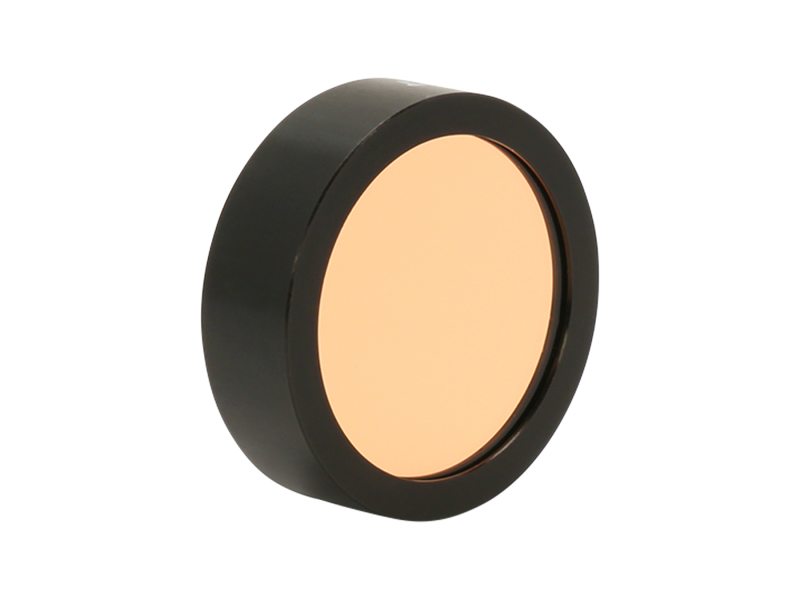

Optical Filter, Mercury Line, 25.4 mm, 334.1±2 nm Center, 12±2nm FWHM
$369
In Stock
334.1 nm 12±2 nm 35%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 365.0±2 nm Center, 12±2nm FWHM
$369
In Stock
365.0 nm 12±2 nm 30%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM
$161
In Stock
404.7 nm 10±2 nm 40%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 435.8±2 nm Center, 10±2nm FWHM
$161
In Stock
435.8 nm 10±2 nm 45%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 546.1±2 nm Center, 10±2nm FWHM
$140
In Stock
546.1 nm 10±2 nm 50%
In Stock
Optical Filter, Mercury Line, 25.4 mm, 577.0±2 nm Center, 10±2nm FWHM
$140
In Stock
577.0 nm 10±2 nm 50%
In Stock

Specifications

  • Type
    Mercury Line Bandpass Filter
  • Size
    Ø25.4 mm
  • Surface Quality
    80-50 scratch-dig
  • Size Tolerance
    +0 mm/-0.8 mm
  • Center Wavelength Tolerance
    ±2 nm

Features

Scribed and Laminated Construction

Scribed and laminated soft coating construction is a commonly used construction for bandpass and edge filters. Optical filter components are coated onto separate substrate plates. These plates are then scribed to remove the film symmetrically around the required specified active film areas of the optical filters to be produced from the plate. The scribed plates are subsequently laminated together with a moisture resistant epoxy. A glass-epoxy-glass seal is formed in the scribed areas forming the best possible barrier to moisture penetration. Filters are cut through the scribed area to their finished size using diamond cutting tools. Additional moisture barriers may be applied to the cut filters if necessary to achieve extended life requirements.
