Overview

Our Flip-up filter holder lets you quickly insert or remove ﬁlters in your experiment. Flip the ﬁlter up when you need it, and then snap it out of the way.

Effortlessly move filters in and out of beam path

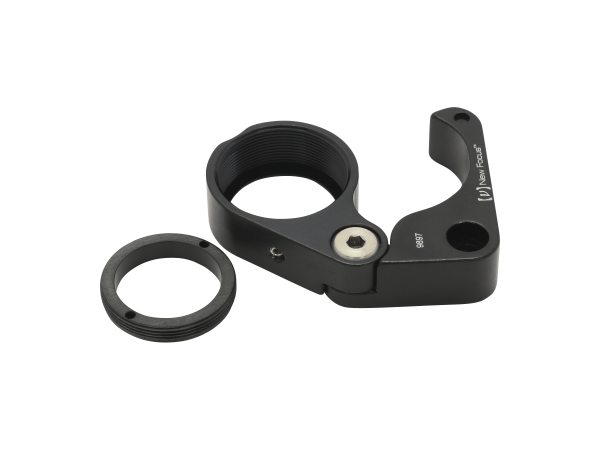

Optic held by set screw or retaining ring
Infinitely stackable to enable wide-range attenuation
Holds both thin and thick optics

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Type	Optic Diameter	Thread Type	Drive Type	Availability	Featured Item	Price		Brand
		9897 Optical Filter Holder, Flip-Up™, 1 in. Diameter Filters, 8-32 $128 3 Weeks	9897 Optical Filter Holder, Flip-Up™, 1 in. Diameter Filters, 8-32	IMPERIAL	0.0	1.0	0.0		0.0	Flip Up Filter Holder	25.4 mm	8-32	Manual	3 Weeks		$128		New Focus
		9897-M Optical Filter Holder, Flip-Up™, 25.4 mm Diameter Filters, M4 $128 In Stock	9897-M Optical Filter Holder, Flip-Up™, 25.4 mm Diameter Filters, M4	METRIC	0.0	1.0	0.0		0.0	Flip Up Filter Holder	25.4 mm	M4	Manual	In Stock		$128		New Focus

Show All

Features

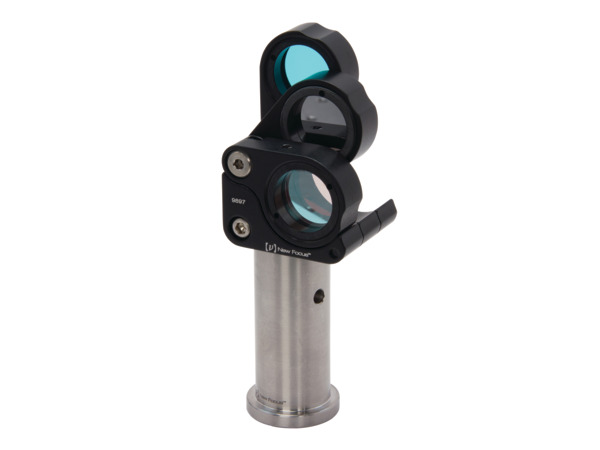

Stack Any Number of Filters

Stacking any number of Flip-up mounts is easy with a screw and nut. Each filter can be individually flipped into and out of the beam path.

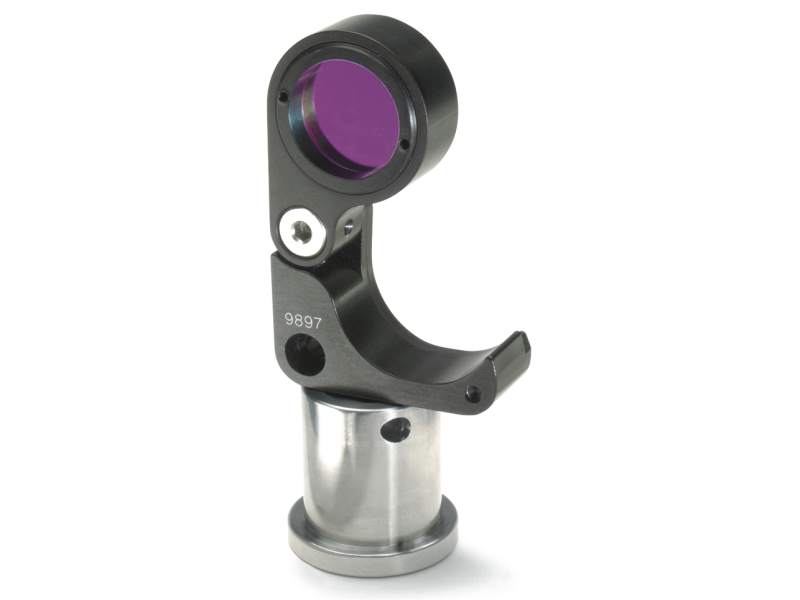

Filters Aligned to Post

In the up position, this mount locates the optic directly in line with and 2.0 in. (50.8 mm) above the mounting post so your filters are perfectly aligned with the rest of your optical system without needing adaptor plates.
