Compare Model Drawings, CAD & Specs Availability Price
9151-M
Pedestal Periscope Kit, 255 mm Height, 25.4 mm Mirrors, Metric
$622
In Stock
 9151-M Pedestal Periscope Kit, 255 mm Height, 25.4 mm Mirrors, Metric
In Stock
 $622
9151NF
Pedestal Periscope Kit, 10.1 in. Height, 1 in. Mirrors, English
$622
In Stock
 9151NF Pedestal Periscope Kit, 10.1 in. Height, 1 in. Mirrors, English
In Stock
 $622

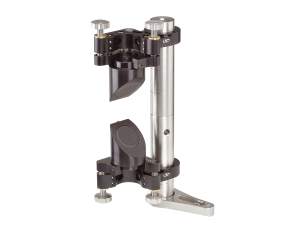

9173
Pedestal Periscope Kit, Valu, 10.6 in. Height, 1 in. Mirrors, English
$510
In Stock
 9173 Pedestal Periscope Kit, Valu, 10.6 in. Height, 1 in. Mirrors, English
In Stock
 $510
9173-M
Pedestal Periscope Kit, Valu, 270 mm Height, 25.4 mm Mirrors, Metric
$510
In Stock
 9173-M Pedestal Periscope Kit, Valu, 270 mm Height, 25.4 mm Mirrors, Metric
In Stock
$510

Features

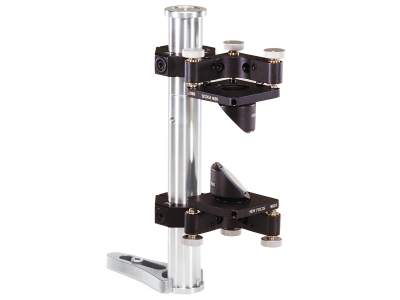

Kits to Build Complete Periscope System

Each periscope kit houses two 1 inch reflecting surfaces, sold separately, to alter a beam path horizontally, either raising or lowering of the beam axis height, and includes all of the following: two 6 in. tall optical pedestals for sturdy mounting, two of our pedestal clamps to adjust mirror height, two Space-Saving Mirror Mounts, two 45° adapters, and a clamping fork.

Fine Angular and Height Adjustments

The included mirror mounts feature our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames, ensuring superior stability and precise repeatable adjustment. 3-axis adjustment provides both fine angular and height adjustment.
