Pedestal Periscope Kit, 255 mm Height, 25.4 mm Mirrors, Metric

Model: 9151-M

$592

In Stock

Compare

Add to List

Product Series Overview

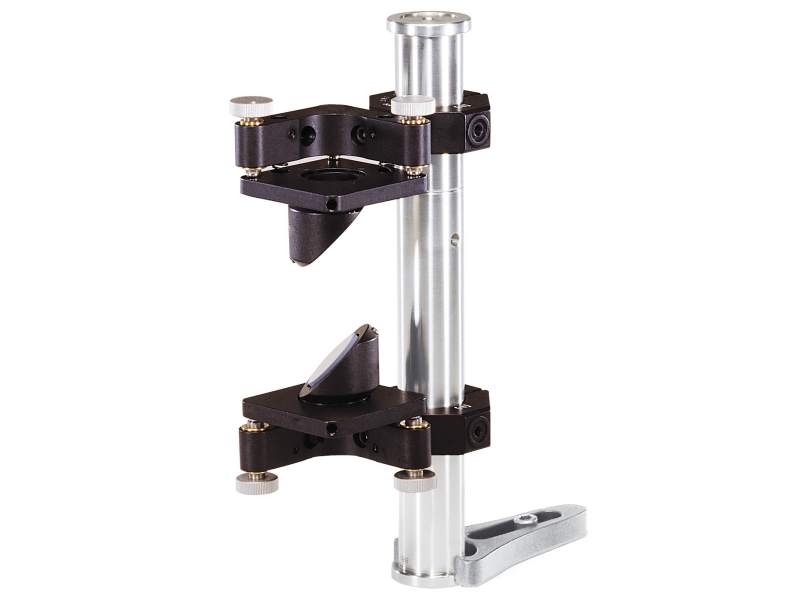

Beam Splitting Periscopes

The 9151-M Pedestal Periscope kit includes all the mechanical parts necessary to easily build your periscope - all you need to add are the 25.4 mm mirrors. Each periscope kit includes two 6 in.-tall pedestals for sturdy mounting, two of our pedestal clamps to adjust the mirror to any height, two center mounts, and a holding fork. We also include two 45° adapters, which simplify alignment by letting you center the beam on both mirrors. Metric threads

Specifications

Technical Specs

Type

Periscope Kit
Angular Range

4°
Sensitivity

4.4 arc sec

Optic Diameter

25.4 mm
Optical Axis Height

58 - 255 mm

Type

Periscope Kit
Angular Range

4°
Sensitivity

4.4 arc sec

Optic Diameter

25.4 mm
Optical Axis Height

58 - 255 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9151b-Drawing (89.7 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price

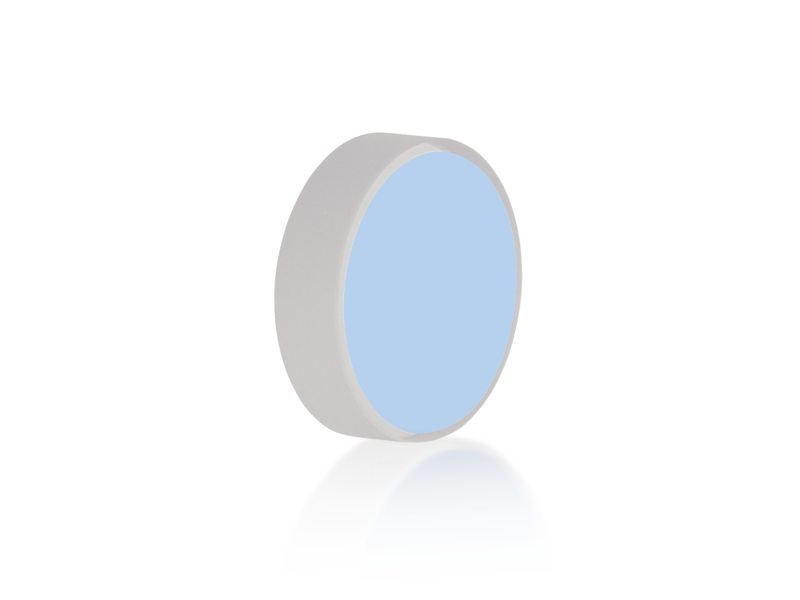

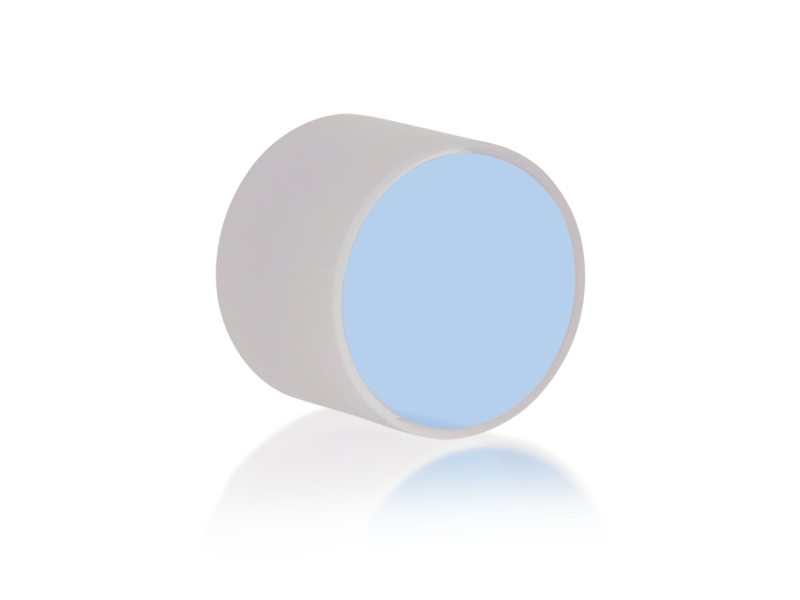

5100NF UV Dielectric Mirror, 1.0 in. Diameter, 300-550 nm	UNIVERSAL	In Stock	$203
5121 VIS Dielectric Mirror, 2.0 in. Diameter, 450-700 nm	UNIVERSAL	Contact Us	$316
5120 UV Dielectric Mirror, 2.0 in. Diameter, 300-550 nm	UNIVERSAL	In Stock	$482
5101 VIS Dielectric Mirror, 1.0 in. Diameter, 450-700 nm	UNIVERSAL	Show	$133
5102 NIR Dielectric Mirror, 1.0 in. Diameter, 700-900 nm	UNIVERSAL	Show	$137

Similar

Description	Compatibility	Avail.	Price
9151NF Pedestal Periscope Kit, 10.1 in. Height, 1 in. Mirrors, English	IMPERIAL	3 Weeks	$592
BSD-2A Pedestal Periscope, 6.1-in.(156-mm) Max Height, 1-in. Mirrors, English	IMPERIAL	In Stock	$587

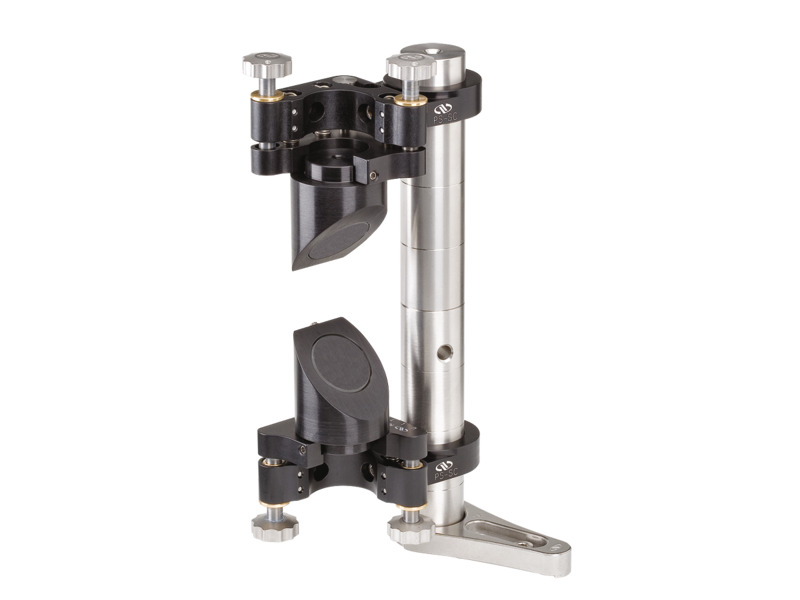

M-BSD-2A Pedestal Periscope, 156 mm Max Height, 25.4 mm Mirrors, Metric	METRIC	2 Weeks	$587
