Compare Model Drawings, CAD & Specs Availability Price
SBX013AR.10
Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 12.7 mm EFL, 245-440nm
$237
In Stock
 SBX013AR.10 Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 12.7 mm EFL, 245-440nm
In Stock
 $237
SBX016AR.10
Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 25.4 mm EFL, 245-440nm
$237
In Stock
 SBX016AR.10 Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 25.4 mm EFL, 245-440nm
In Stock
 $237
SBX018AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 20.0 mm EFL, 245-440nm
$237
In Stock
 SBX018AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 20.0 mm EFL, 245-440nm
In Stock
 $237
SBX019AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 25.4 mm EFL, 245-440nm
$237
In Stock
 SBX019AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 25.4 mm EFL, 245-440nm
In Stock
 $237
SBX020AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 32.0 mm EFL, 245-440nm
$237
Contact Us
 SBX020AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 32.0 mm EFL, 245-440nm
Contact Us
 $237
SBX022AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 50.2 mm EFL, 245-440nm
$237
In Stock
 SBX022AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 50.2 mm EFL, 245-440nm
In Stock
 $237
SBX025AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 75.6 mm EFL, 245-440nm
$237
In Stock
 SBX025AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 75.6 mm EFL, 245-440nm
In Stock
 $237
SBX028AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 100 mm EFL, 245-440nm
$185
In Stock
 SBX028AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 100 mm EFL, 245-440nm
In Stock
 $185
SBX031AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, 245-440nm
$177
In Stock
 SBX031AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, 245-440nm
In Stock
 $177
SBX034AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 200 mm EFL, 245-440nm
$175
In Stock
 SBX034AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 200 mm EFL, 245-440nm
In Stock
 $175
SBX037AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 250 mm EFL, 245-440nm
$175
In Stock
 SBX037AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 250 mm EFL, 245-440nm
In Stock
 $175
SBX040AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 500 mm EFL, 245-440nm
$175
In Stock
 SBX040AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 500 mm EFL, 245-440nm
In Stock
 $175
SBX043AR.10
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 1000 mm EFL, 245-440nm
$175
In Stock
 SBX043AR.10 Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 1000 mm EFL, 245-440nm
In Stock
 $175
SBX049AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 50.2 mm EFL, 245-440nm
$564
In Stock
 SBX049AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 50.2 mm EFL, 245-440nm
In Stock
 $564
SBX052AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 75.6 mm EFL, 245-440nm
$608
In Stock
 SBX052AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 75.6 mm EFL, 245-440nm
In Stock
 $608
SBX055AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 100 mm EFL, 245-440nm
$419
In Stock
 SBX055AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 100 mm EFL, 245-440nm
In Stock
 $419
SBX058AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 150 mm EFL, 245-440nm
$419
In Stock
 SBX058AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 150 mm EFL, 245-440nm
In Stock
 $419
SBX061AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 200 mm EFL, 245-440nm
$362
In Stock
 SBX061AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 200 mm EFL, 245-440nm
In Stock
 $362
SBX064AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 250 mm EFL, 245-440nm
$345
In Stock
 SBX064AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 250 mm EFL, 245-440nm
In Stock
 $345
SBX067AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 500 mm EFL, 245-440nm
$345
In Stock
 SBX067AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 500 mm EFL, 245-440nm
In Stock
 $345
SBX070AR.10
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 1000 mm EFL, 245-440nm
$345
In Stock
 SBX070AR.10 Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 1000 mm EFL, 245-440nm
In Stock
 $345

Specifications

  • Lens Shape
    Bi-Convex (Double Convex)
  • Lens Material
    UV Fused Silica
  • Antireflection Coating
    245-440 nm
  • Coating Type
    UV Multilayer
  • Coating Code
    AR.10
  • Damage Threshold
    2 J/cm2, 10 nsec pulses, 10 Hz at 355 nm
  • Surface Quality
    20-10 scratch-dig
  • Surface Flatness
    λ/2
  • Surface Accuracy, Irregularity
    λ/8
  • Surface Accuracy, Power
    1.5 λ
  • Centration
    ≤3 arc min
  • Chamfers
    0–0.8 mm face width
  • Chamfers Angle/Tolerance
    45° ±15°, typical
  • Focal Length Tolerance
    ±1 %
  • Diameter Tolerance
    +0/-0.1 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Clear Aperture
    ≥central 90% of diameter
  • Cleaning
    See How to Clean Optics

Features

UV Fused Silica Substrates for UV, Laserline & Broadband Applications

UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. For more information, refer to our optical materials Technical Note

Precision Bi-Convex Lens Surfaces

Our precision UV Fused Silica double-convex lenses are polished to tight tolerances minimizing wavefront distortion. Tight surface quality tolerances minimize scatter and unwanted diffraction effects. These lenses have a 20-10 scratch-dig surface quality, and a λ/8 surface irregularity. For more information, refer to the optical surfaces technical note.

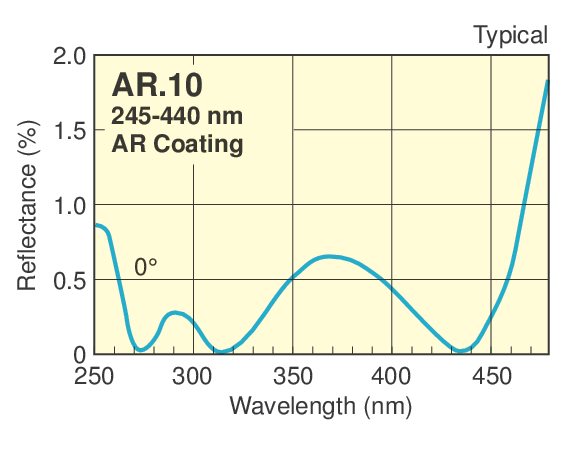

Ultraviolet Antireflection Coating

Our AR.10 broadband multilayer antireflection coating markedly improves the transmission efficiency of UV lenses in the 245 to 440 nm ultraviolet region.

Standardized Bi-Convex Focal Lengths

Standard effective focal lengths on our double-convex lenses provide a systematic approach allowing for lenses of different sizes and materials to be interchanged without requiring other changes to your optical system.

Bi-Convex Lens Shape for Focusing

Bi-Convex lenses are the best choice when the object and image are at equal or near equal distance from the lens. When the object and image distance are equal (1:1 magnification), not only is spherical aberration minimized, but also coma, distortion, and chromatic aberration are identically canceled due to the symmetry. Bi-convex lenses function similarly to plano-convex lenses in that they have a positive focal length, and focus parallel rays of light to a point. Both surface are spherical and have the same radius of curvature, thereby minimizing spherical aberration. As a guideline, bi-convex lenses perform within minimum aberration at conjugate ratios between 5:1 and 1:5. Outside this magnification range, plano-convex lenses are usually more suitable.

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter LH-A-GRP
A-Line™ Lens Mounts		 LT_Series_group_update
LT Series Lens Tubes		 OM-multi_axis_lens_pos-S
LP Series Lens Positioners		 optics-cage-plus-S
Optics Cage Plus Series
76.2 mm (M-) LH-3A N/A N/A N/A
50.8 mm (M-) LH-2A
LH-2N		 LT20-05
LT20-10
LT20-20
LT20-30		 LP-2A
LP-2A-XY
LP-2A-XYZ		 N/A
38.1 mm (M-) LH-1.5A LT20 lens tube with
LH-2R1.5 adapter		 LP-2 lens positioner with
LPLH-1.5T adapter		 N/A
25.4 mm (M-) LH-1A
LH-1N
LH-1XY
LH-1TZ-A
LH-1TZ		 LT10-05
LT10-10
LT10-20
LT10-30		 LP-1A
LP-1A-XY
LP-1A-XYZ		 OC1-LH1-S
OC1-LH1
OC1-LH1-TZ
OC1-LH1-XY
OC1-LH1-XYA
OC1-LH1-XYC
OC1-LH1-XYZ
12.7 mm (M-) LH-0.5A
LH-05N		 LT05-05
LT05-10		 LP-05A
LP-05A-XY
LP-05A-XYZ		 N/A
6.35 mm LH-05DB with
LH-50R25 adapter		 LT05 lens tube with
LH-50R25 adapter		 LP-05 lens positioner with
LPLH-25T adapter		 N/A

For non-standard sizes not listed above, check out our variable size lens mounts.
