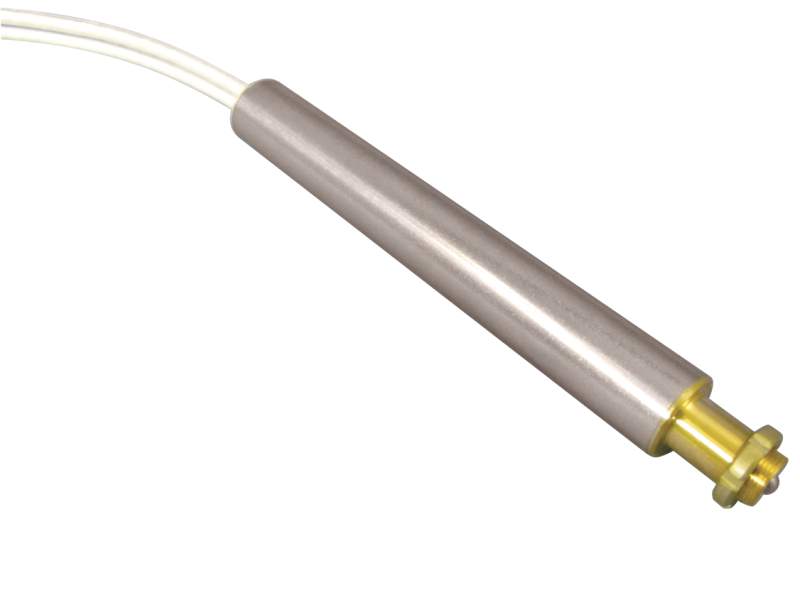

Motorized Actuator, Miniature, 12 mm Travel, Vacuum Compatible

Technical Specs

  • Push Force
    30 N
  • Travel Range
    12 mm
  • Minimum Incremental Motion
    0.10 µm
  • Maximum Speed
    0.2 mm/s
  • Accuracy, Typical
    ±2.2 µm
  • Accuracy, Guaranteed
    ±4.0 µm
  • Bi-directional Repeatability (Typical)
    ±0.15 µm
  • Bi-directional Repeatability, Guaranteed
    ±1.25 µm
  • Uni-directional Repeatability (Typical)
    ±0.10 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.50 µm
  • Drive Screw Pitch
    0.5 mm
  • Reduction Gear
    1:256
  • Origin
    Optical, at lower limit
  • Origin Repeatability
    ±2 µm
  • Limit Switches
    Optical switches, both ends
  • Cable Length
    3 m
  • Connector Type
    DB25 - Male
  • Vacuum Compatibility
    10-6 hPa
  • Power Consumption
    5 W
  • Weight
    0.35 kg
  • MTBF
    10000 h (25N load, 10% duty cycle)
  • RoHS
    Compliant
  • Maximum Power Consumption
    10 W
  • Compatible XPS-RL Driver Module
  • Compatible XPS-D Driver Module
  • ESP301 Compatibility
    Yes
  • SMC100 Compatibility
