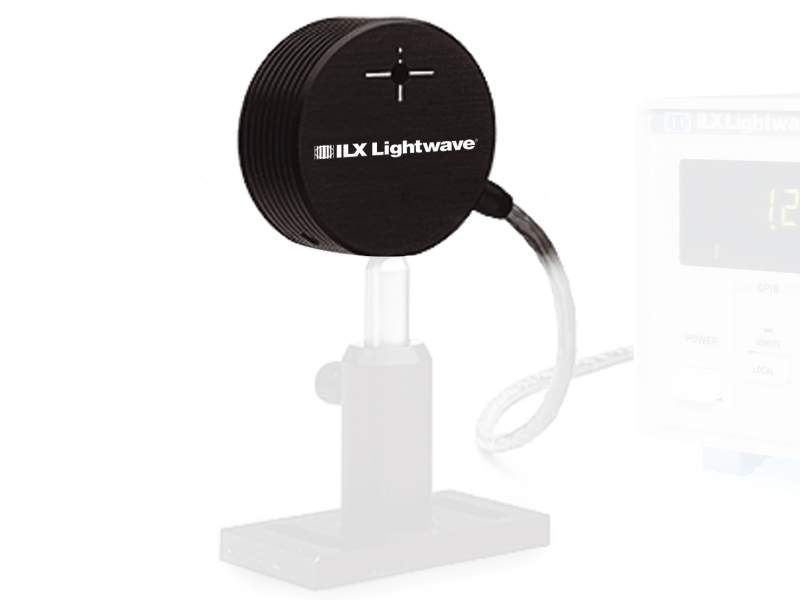

Optical Power and Wavelength Measurement Head, 10 W, 830 to 1100 nm, Silicon

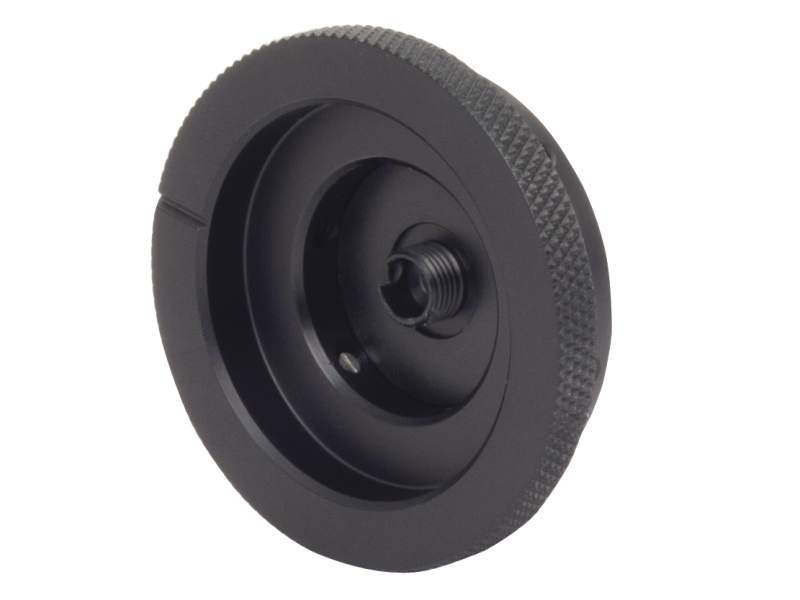

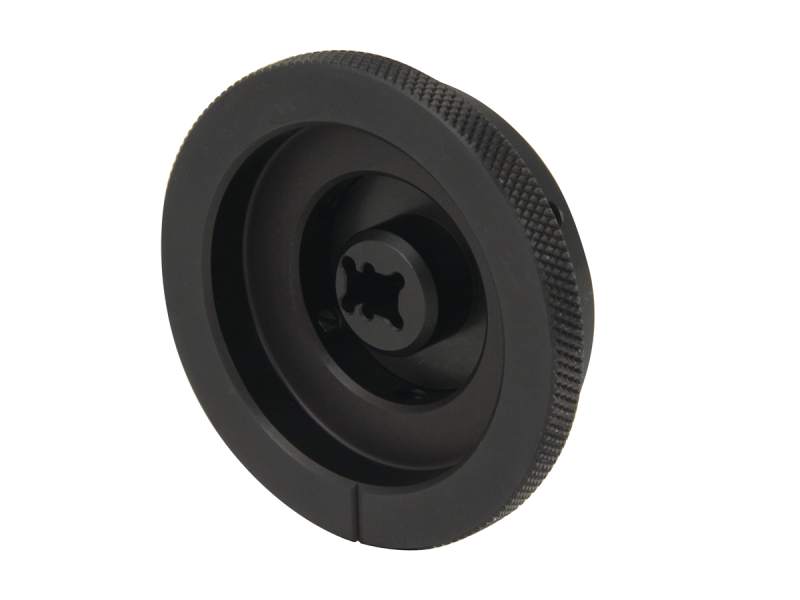

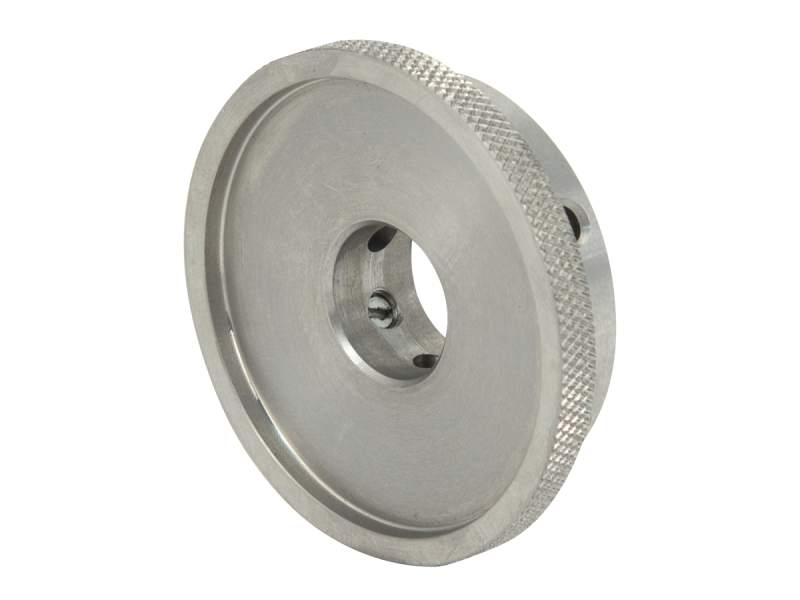

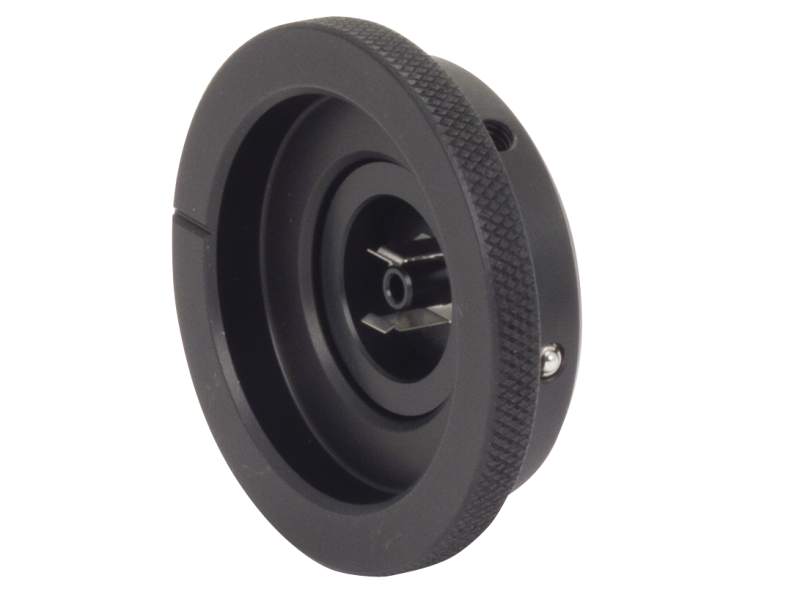

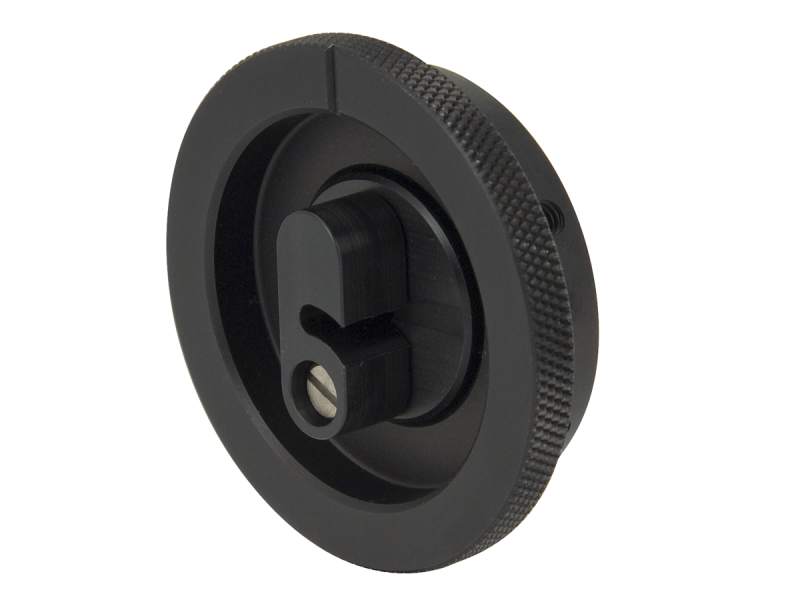

The OMH-6790B Optical Power and Wavelength Measurement Head is an integrating sphere based measurement head compatible with the OMM-6810B Optical Power and Wavelength Meter. The OMH-6790B is developed specifically for pump laser diodes with better wavelength measurement accuracy, low polarization dependent response, and the ability to make either connectorized or bare fiber measurements. It measures optical power up to 10W over a wavelength range of 830-1100nm. The OMH-6790B also has the unique ability to measure the wavelength of the source with an NIST traceable accuracy of ±0.2nm. Interchangeable fiber optic adapters allow the OMH-6790B Optical Power and Wavelength Measurement Head to be compatible with a wide range of connectors including FC, SC, LC, bare FC ferrule, and bare fiber.

Note: FC adapter not included with measurement head.

Optical Meter Required and Sold Separately
