Platform Optical Mount, 12.7 mm, ±11° Hex Adjustment, M3
Model: MM-050-HEX-M
Product Series Overview

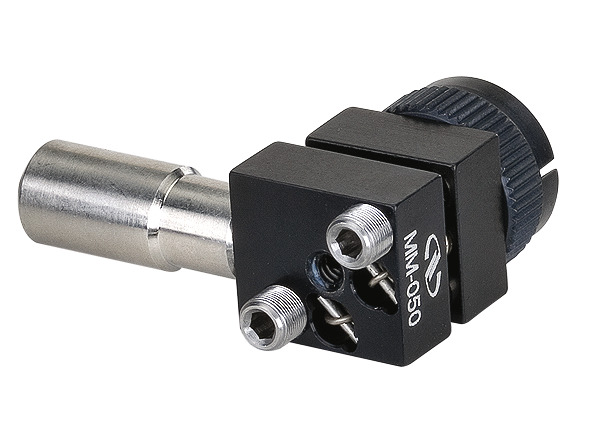

Hex-Driven Miniature Platform Mirror MountsThe MM-050-HEX-M Miniature Metric Platform Optical Mount provides a stable mounting platform for 12.7 mm diameter mirrors. It uses two 100-TPI threaded hex-key adjusters for a ±11° range. The M-MM-050 includes an adaptor for 12.7 mm mirrors and a 0.31 inch diameter mounting post which has M3 threaded hole in one end and M4 threaded hole in the other end.
Horizontal or Vertical Mounting
Both MM-HEX and P100-P series can be post mounted as a horizontal tip/tilt platform using the threaded hole in the center or a vertical mount using the threaded hole on the side.
U50-P ULTIMA platform mounts can also be mounted horizontally with adapter
Allen-Key Adjustment
Allen-key adjustments screws are used in the miniature platform mounts to save space and prevent unintended adjustment. For long-term stability, U50-PL and U50-PL1 feature a flexure lock built into the mount body, which exerts a tangential force on the screw to prevent rotation.
Dedicated Mirror Adapters
Newport's Platform Mounts are complimented by a set of mirror cup adapters. The Mirror Cup Adapters are compatible with ULTIMA series and P100-P miniature platform mounts. They attach to the face of the platform mount through the 1/4-in. hole in the center of the platform and are locked in place by a set screw from the side. The Horizontal Adaptors attach to the mounting holes on an optical mount, providing a mechanism to convert the ULTIMA Platform Mounts to a post-mounted horizontal platform for mounting prisms, cube beamsplitters, or other components.
Specifications
- MechanismKinematic
- Optic Diameter12.7 mm
- Platform Size12.7 x 12.7 mm
- Number of Actuators2
- Actuator LocksNo
- Adjustment Screw Thread100 TPI
- θx, θy
- 23.9 arc sec
- Angular Range±11°
- MaterialAnodized Aluminum
- Allen-Key, non-locking
- Platform ThreadM3 THD
- Mounting HolesM3 THD
Resources & Downloads
Other
MM-050-HEX-M RoHS Certificate(278.9 kB, PDF)
