Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, M4
Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, M4
Model: M-PS-45-SUP-C
Product Series Overview

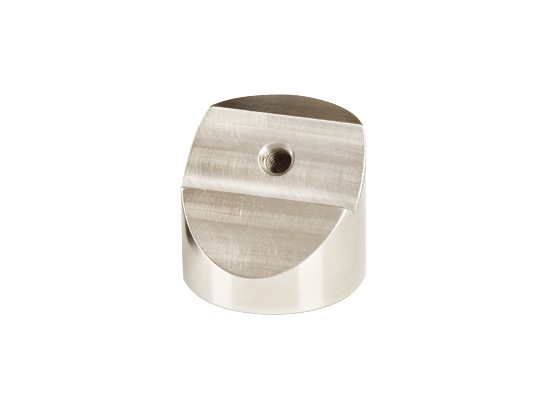

45-Degree Mirror Mount AdaptersThe M-PS-45-SUP-C Pedestal Adaptor allows Suprema® Series mounts which have a counterbored clear mounting hole, like the SS100-F2H, to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor therefore has a 45-degree mounting hole which has been threaded for M4 cap-head screws. The M-PS-45-SUP-C is designed so that it locates the Suprema mount's mirror both on the post center line and 50.8 mm above the base. The base of the adaptor has an M4 thread for mounting to Metric PS-series posts.
