Compare Model Drawings, CAD & Specs Type Thread Type Material Diameter Availability Price
Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema® Mount, M4
$33
In Stock
45 Degree Adaptor M4 Stainless Steel 25.4 mm
In Stock
Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, M4
$33
In Stock
45 Degree Adaptor M4 Stainless Steel 25.4 mm
In Stock
Pedestal Adaptor, 45 Degree, Threaded, U100 ULTIMA® Mounts, 8-32
$22
In Stock
45 Degree Adaptor M4 Aluminum 25.4 mm
In Stock
Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema® Mount, 8-32
$33
In Stock
45 Degree Adaptor 8-32 Stainless Steel 25.4 mm
In Stock
Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, 8-32
$33
In Stock
45 Degree Adaptor 8-32 Stainless Steel 25.4 mm
In Stock
Pedestal Adaptor, 45 Degree, Threaded, U100 ULTIMA® Mounts, 8-32
$22
In Stock
45 Degree Adaptor 8-32 Aluminum 25.4 mm
In Stock

Features

Angle Adapters in Multiple Versions

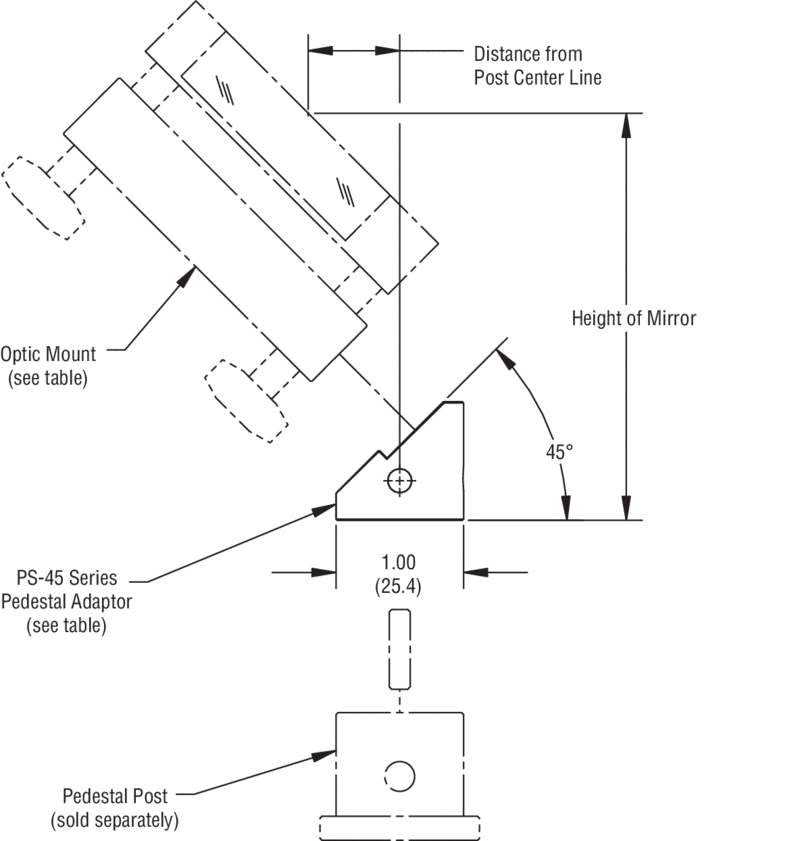

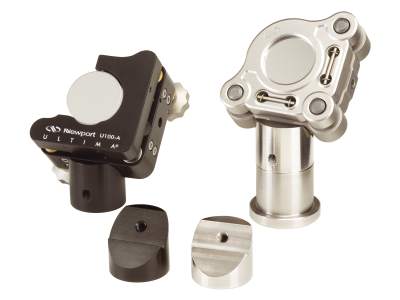

Pedestal Post Adaptors enable the mounting of optical components at a fixed 45-degree angle. There are six different combinations of features available for these adapters, including the metric versions of each. The PS-45-SUP and PS-45-SUP-C models are stainless steel, designed to hold any of the 1-inch Suprema mounts with a centered 8-32 (M4) threaded mounting hole (i.e. SN100-F) or a clearance hole, respectively. Model PS-45-ULT is aluminum with a black anodized finish, designed to hold any of the 1-inch ULTIMA Clear Quadrant mounts. All of these Pedestal Post Adaptors position the optic 2 in. (50.8 mm) above center and feature a cross-drilled through hole for leveraged tightening to the pedestal posts. These adapters are also compatible with a variety of other 8-32 mounted components.

Model Hole at The Bottom Hole for Mirror Mounts Compatible Mirror Mounts
(M-) PS-45-ULT 8-32 (M4) Thd 8-32 (M4) Thd ULTIMA Mounts
(M-) PS-45-SUP 8-32 (M4) Thd 8-32 (M4) Thd Suprema Mounts w/ Clearance Mounting Hole
(M-) PS-45-SUP-C 8-32 (M4) Thd 8-32 (M4) C'bored Suprema Mounts w/ Threaded Mounting Hole
