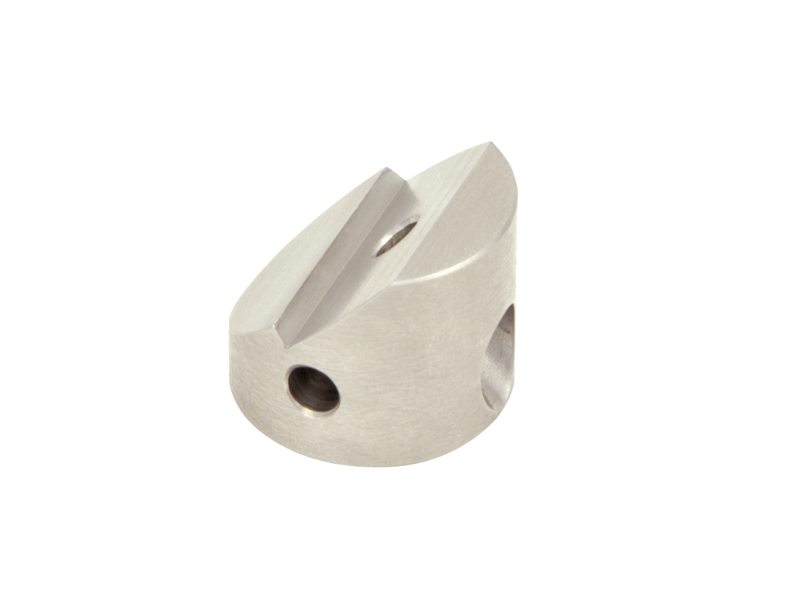

Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema^® Mount, M4

The M-PS-45-SUP Pedestal Adaptor allows Suprema^® Series mounts which have a threaded mounting hole, like the M-SN100-F2K, to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor therefore has a 45-degree clearance hole which has been counterbored for 8-32 (M4) cap-head screws from the back side. The M-PS-45-SUP is designed so that it locates the Suprema mount's mirror both on the post center line and 2.0 in. (50.8 mm) above the base. The base of the adaptor has an M4 thread for mounting to Metric PS-series posts.
