Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Model: PS-45-ULT
Product Series Overview

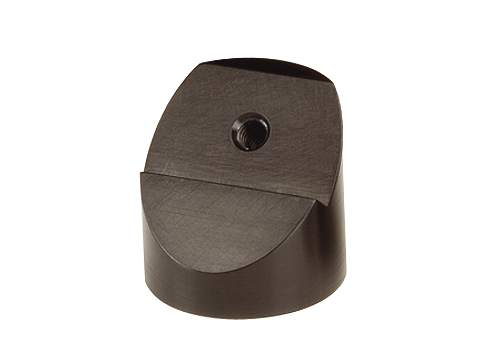

45-Degree Mirror Mount AdaptersThe PS-45-ULT Pedestal Adaptor allows ULTIMA® Series mirror mounts to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor has a 45-degree mounting hole which has been threaded for 8-32 cap-head screws. When used with a U100 mount, the center of the mirror will be aligned with the post center line and 2.0 in. above the base. The base of the adaptor has an 8-32 thread for mounting to English PS-series posts.
Resources & Downloads
2D Product Drawings
ASSY 45 DEG ULTIMA CATALOGUE(206.5 kB, PDF)
Other
PS-45-ULT RoHS Certificate(279 kB, PDF) PS-45-ULT_RoHS2021.pdf(682.2 kB, PDF)
