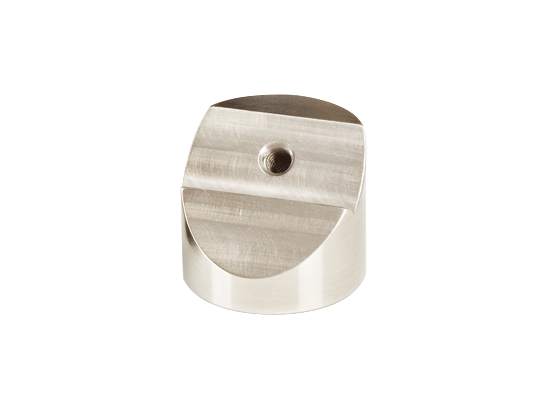

Pedestal Adaptor, 45 Degree, Threaded, Suprema^® Clearance Mount, 8-32

Model: PS-45-SUP-C

$40

In Stock

Compare

Add to List

Product Series Overview

45-Degree Mirror Mount Adapters

The PS-45-SUP-C Pedestal Adaptor allows Suprema^® Series mounts which have a counterbored clear mounting hole, like the SS100-F2H, to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor therefore has a 45-degree mounting hole which has been threaded for 8-32 cap-head screws. The PS-45-SUP-C is designed so that it locates the Suprema mount's mirror both on the post center line and 2.0 in. above the base. The base of the adaptor has an 8-32 thread for mounting to English PS-series posts.

Specifications

Technical Specs

Type

45 Degree Adaptor
Thread Type

8-32
Material

Stainless Steel

Diameter

25.4 mm

Type

45 Degree Adaptor
Thread Type

8-32
Material

Stainless Steel

Diameter

25.4 mm
