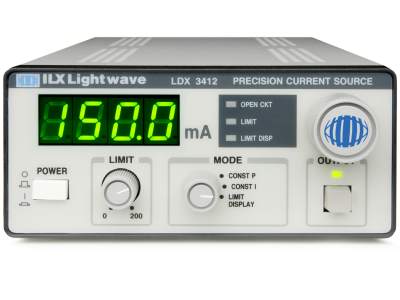

Laser Diode Driver, Entry Level, 200mA, 6V, 220 VAC
The LDX-3412 Precision Laser Diode Driver provides an entry level solution for general purpose current control of laser diodes and LEDs. This instrument delivers a stable, low-noise output in both constant current and constant power operating modes and offers the ILX Lightwave® proven protection and safety features to protect your laser diode or LED. A greater level of protection is provided with the instrument's unique voltage source/constant current output stage design.

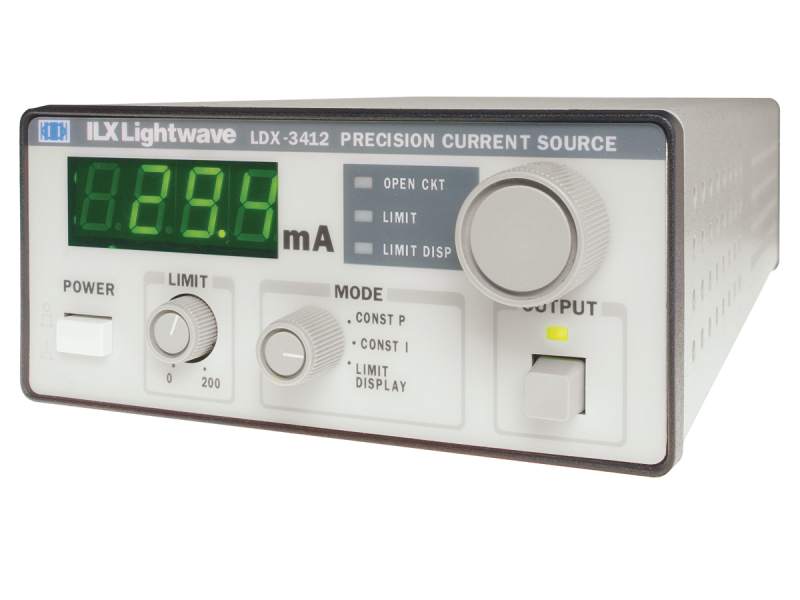

The LDX-3412 Laser Diode Driver is easy to operate with an intuitive front panel and a highly visible LED display. For many applications, the LDX-3412 offers the right features at the right price.
We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.
Specifications
- Laser Current0.2 A
- Laser Drive RequirementLess Than 1 A
- Laser Compliance Voltage6 V
- Temperature Coefficient<100 ppm FS/°C
- Computer InterfacesNone
- Power Requirements220 VAC
- Laser Current Resolution100 µA
- Laser Current Accuracy±0.2 mA
- Laser Output Noise/Ripple Low Bandwidth2 µA
- Current Output 1 h Stability<50 ppm
- Photodiode Current Range20-2000 µA
- Photodiode Reverse Bias0-5 V
- Connector TypeDB9
- Display Type3.5 digit Green LED
Resources & Downloads
Application Notes
Protecting Your Laser Diode(2.3 MB, PDF)
Technical Notes
Typical Output Noise of an LDX-3412(96 kB, PDF) Typical Output Drift of an LDX-3412(111 kB, PDF)
Manuals
LDX-3412 Laser Diode Drivers User's Manual(832.9 kB, PDF)
Literature
LDX-3412 Laser Diode Driver Brochure(259.3 kB, PDF) Pinout Diagrams for CC-305S and CC-505S Cables(88.5 kB, PDF)
