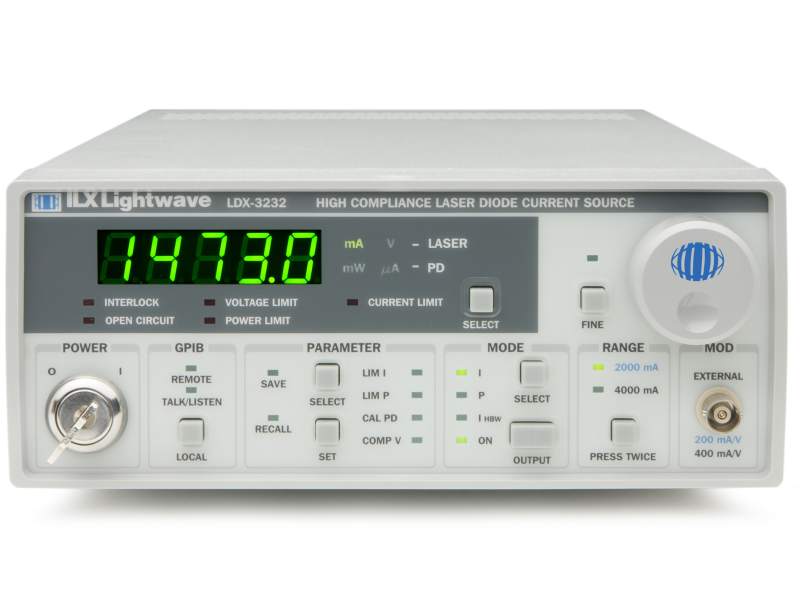

Laser Diode Driver, Precision, 4A, 15V, GPIB, 120 VAC

Technical Specs

  • Laser Current
    4 A
  • Laser Drive Requirement
    1 to 10 A
  • Laser Compliance Voltage
    15 V
  • Temperature Coefficient
    <50 ppm FS/°C
  • Computer Interfaces
    GPIB
  • Power Requirements
    120 VAC
  • Laser Current Resolution
    80 µA
  • Laser Current Accuracy
    ±0.05% FS
  • Laser Output Noise/Ripple Low Bandwidth
    20 µA
  • Laser Output Noise/Ripple High Bandwidth
    40 µA
  • Noise/Ripple (rms)
    20 µA
  • Transfer Function
    400 mA/V
  • Current Output 24 h Stability
    <40 ppm FS
  • Current Output 1 h Stability
    <20 ppm FS
  • External Modulation High Bandwidth
    DC to 250 kHz
  • External Modulation Low Bandwidth
    DC to 10 kHz
  • Forward Voltage Accuracy
    ±2.5%
  • Forward Voltage Resolution
    60 mV
  • Monitor Current Accuracy
    ±4 µA
  • Monitor Current Range
    5 to 10000 µA
  • Photodiode Current Accuracy
    ±0.004% of FS
  • Photodiode Current Range
    0 to 10000 µA
  • Photodiode Reverse Bias
    0 to 5 V
  • Display Type
    5-digit Green LED
