Motorized Half Gimbal System, SR50 Series Rotation Stage

SR50 Stage Based Half Gimbal Systems

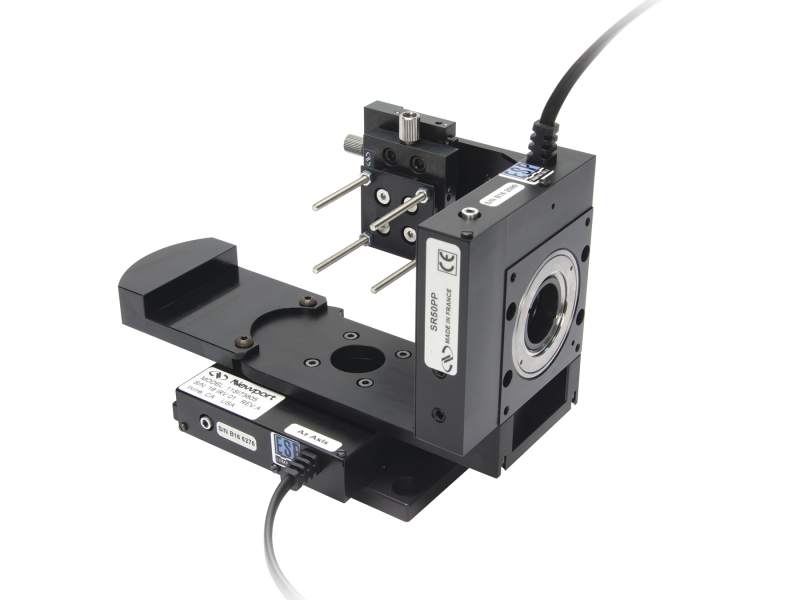

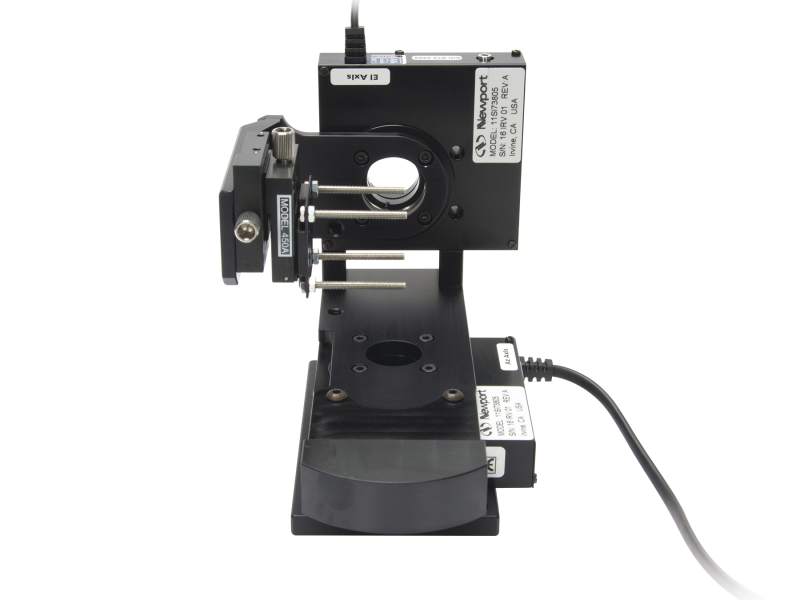

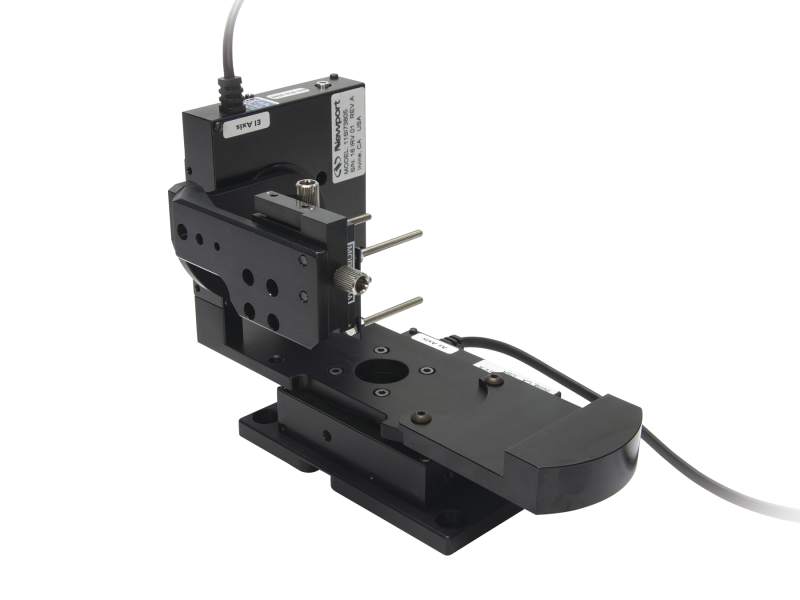

The HG-SR50 is our smallest gimbal based on standard SR50 rotation stages. It is ideally suited for simulation of small sensors. The travel range can either be full 360° or less (limited via software). Two motor options are available: stepper and DC. The system is compatible with SMC100, ESP301 and XPS series controllers.

Contact Inside Sales Support team to discuss application requirements and get a quote.

Specifications

Technical Specs

Travel Range
Az: ±90°
El: ±60°
Accuracy, Typical
±15 mdeg
Accuracy, Guaranteed
±30 mdeg
Bi-directional Repeatability, Typical
±15 mdeg
Bi-directional Repeatability, Guaranteed
±25 mdeg
Resolution
0.001°

Minimum Incremental Motion
4.0 mdeg
Maximum Speed
4°/sec
Load Capacity
5 N (system)

Travel Range
Az: ±90°
El: ±60°
Accuracy, Typical
±15 mdeg
Accuracy, Guaranteed
±30 mdeg
Bi-directional Repeatability, Typical
±15 mdeg
Bi-directional Repeatability, Guaranteed
±25 mdeg
Resolution
0.001°

Minimum Incremental Motion
4.0 mdeg
Maximum Speed
4°/sec
Load Capacity
5 N (system)

Resources & Downloads

Manuals

SR50 Rotation Stage User's Manual(1.2 MB, PDF)

Literature

Gimbal Brochure(3.2 MB, PDF)

2D Product Drawings

HG-SR50(49.3 kB, PDF)
