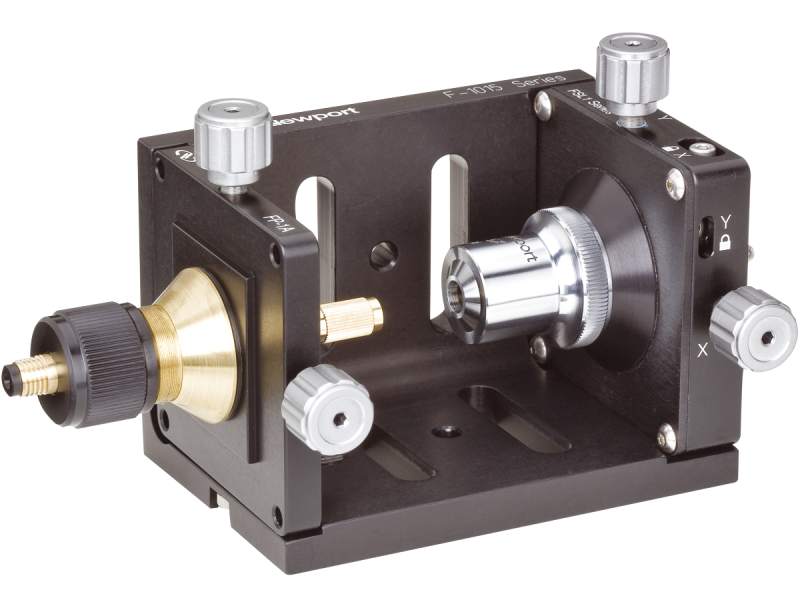

The F-1015 Precision Single-Mode Fiber Coupler uses a steering lens to achieve 0.1 micron resolution in a compact package. This coupler is very easy to use. An input iris assists in centering the laser beam. The beam passes through a steering lens, which is mounted in a precision X-Y translation assembly with 100 pitch adjustment screws. An objective lens focuses the beam on the fiber core. Translating the steering lens causes a second-order translation of the focused beam across the fiber end-face, providing 0.1 micron beam positioning resolution with negligible changes of incident angle at the fiber face. For use with free-space laser, operating in the visible wavelength range, the F-1015 has a steering lens with a multilayer dielectric AR coating and a M-20X Microscope Objective. The effective focal length is 9 mm. This coupler is constructed of anodized aluminum and are sold without fiber chucks. The FPH-J four-jaw fiber chuck with Teflon liner for fibers less than 250 microns in diameter, and the FPH-DJ Delrin-jawed chuck for fibers 250 microns to 1 mm in diameter are the bare fiber chucks of preference. The FPH-S and FPH-S-2.5 slotted fiber chucks can also be used.
Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
---|---|---|---|---|---|---|---|---|
![]() |
FPH-S Fiber Holder, 80–200 micron Fiber | UNIVERSAL |
In Stock
![]() |
$102.00 |
|
|||
![]() |
FPH-S-2.5 Fiber Holder, 80–200 micron Fiber, Extended | UNIVERSAL |
In Stock
![]() |
$102.00 |
|
|||
![]() |
FPH-J Fiber Chuck, Teflon Lined, 125-250 micron Fiber | UNIVERSAL |
1 Week
![]() |
$122.00 |
|
|||
![]() |
FPH-DJ Fiber Chuck, Delrin-Jawed, 300-1000 micron Fiber | UNIVERSAL |
1 Week
![]() |
$122.00 |
|
Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
---|---|---|---|---|---|---|---|---|
![]() |
F-915 Fiber Coupler, Five-Axis, Bare Singlemode Fibers | UNIVERSAL |
In Stock
![]() |
$1,366.00 |
|
|||
![]() |
F-925 Optical Fiber Coupler, GRIN Lens, Bare Fibers | UNIVERSAL |
In Stock
![]() |
$672.00 |
|
|||
![]() |
F-1015LD Singlemode Fiber Coupler, F-LA22 for Laser Diodes | UNIVERSAL |
In Stock
![]() |
$2,370.00 |
|
|||
![]() |
F-92-C1 Optical Fiber Coupler, GRIN Lens, Connectorized Fibers | UNIVERSAL |
In Stock
![]() |
$638.00 |
|
|||
![]() |
F-915T Fiber Coupler, Multimode, Bare Fiber Positioner | UNIVERSAL |
In Stock
![]() |
$707.00 |
|
Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
---|---|---|---|---|---|---|---|---|
![]() |
F-SA Optical Fiber, Singlemode, 488-633 nm, 0.10-0.14 NA | UNIVERSAL |
In Stock
|
$11.60/meter |
|
|||
![]() |
F-SF Optical Fiber, Singlemode, 830-980 nm, 0.10-0.14 NA. | UNIVERSAL |
In Stock
|
$5.50/meter |
|
|||
![]() |
F-SMF-28 Optical Fiber, Singlemode, 1310/1550 nm, 0.14 NA | UNIVERSAL |
In Stock
![]() |
$1.30/meter |
|
|||
![]() |
F-SBC Optical Fiber, Singlemode, 1310/1550 nm, Bend Insensitive | UNIVERSAL |
In Stock
|
$12.00/meter |
|
