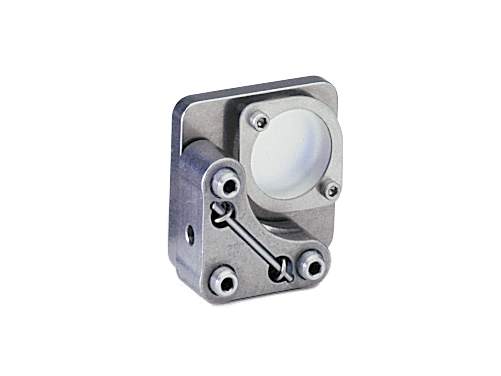

The 9871-K-V Vacuum Compatible Tiny Corner Mirror Mount with retaining plate is our most compact mount for applications where space is truly tight. Designed with the same mechanical principles as our larger classic mounts, it offers over 2 mm of pure translation and ±4° of tilt for 0.5 inch (12.7 mm) diameter optics. It has 6-80 adjustment screws and #2 (M2) clearance holes for mounting. All our Tiny mounts come standard without knobs. If you need knobs to adjust these mounts in your experiment, you can order our Model 9365 Tiny knobs.
M-UMR5.16Linear Stage, Double-Row Ball Bearing, 16 mm Travel, M3, M4 and M6
METRIC
In Stock
$346.00
M-UMR8.25Linear Stage, Double-Row Ball Bearing, 25 mm Travel, M4 and M6
METRIC
In Stock
$447.00
M-PS-1Optical Pedestal, 25.4 mm Height, 25.4 mm Diameter, M4 Thread
METRIC
In Stock
$29.00
M-PS-2Optical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4 Thread
METRIC
In Stock
$31.00
M-PS-3Optical Pedestal, 76.2 mm Height, 25.4 mm Diameter, M4 Thread
METRIC
In Stock
$35.00
9871-K-V - Drawings & CAD
Additional CAD file downloads are not available for this product.
9871-K-V - Drawings
Additional drawings are not available for this product.
