High-Energy Pinhole, Molybdenum, 50 µm, 900 Series
High-Energy Pinhole, Molybdenum, 50 µm, 900 Series
Model: 900PH-50
Product Series Overview

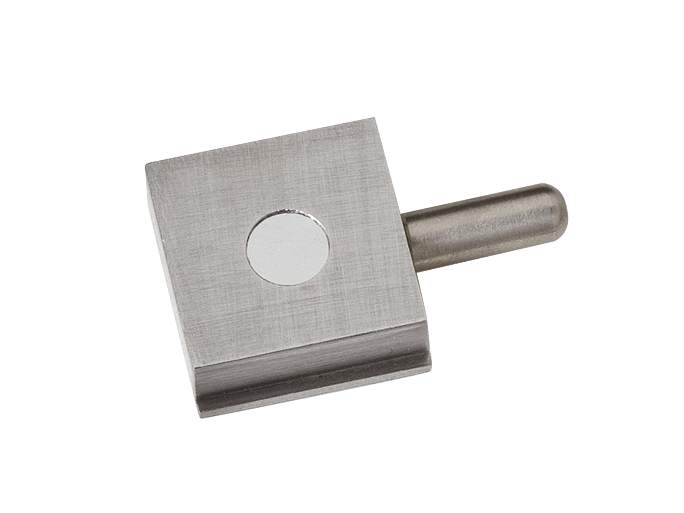

900 Series High Energy Mounted Molybdenum PinholesThe 900PH-50 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 50 ± 5 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is mounted for use with our Model 900 spatial filter.
Resources & Downloads
Other
900PH-50 RoHS Certificate(264.3 kB, PDF) 900PH-50_ROHS2-2021.pdf(279.9 kB, PDF)
2D Product Drawings
900P-MNT DWG.pdf(207 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 910PH-50High-Energy Pinhole, Molybdenum, 50 µm, 0.875-20 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PH-50High-Energy Pinhole, Molybdenum, 50 µm, Unmounted | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 900PH-SETHigh-Energy Pinhole Set, Molybdenum, 5, 10, 15, 25, 50 µm | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| PH-SETHigh-Energy Pinhole Set, Molybdenum, Unmounted | |||||
 | 910PH-SETHigh-Energy Pinhole Set, Molybdenum, 0.875-20 Thread |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-900Spatial Filter, Three-Axis, Metric | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 900Spatial Filter, Three-Axis | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 900P-MNTHigh Energy Pinhole Mount, Requires Unmounted Pinhole | FREE 2-day shipping on thousands of products on Newport.com Learn More |
