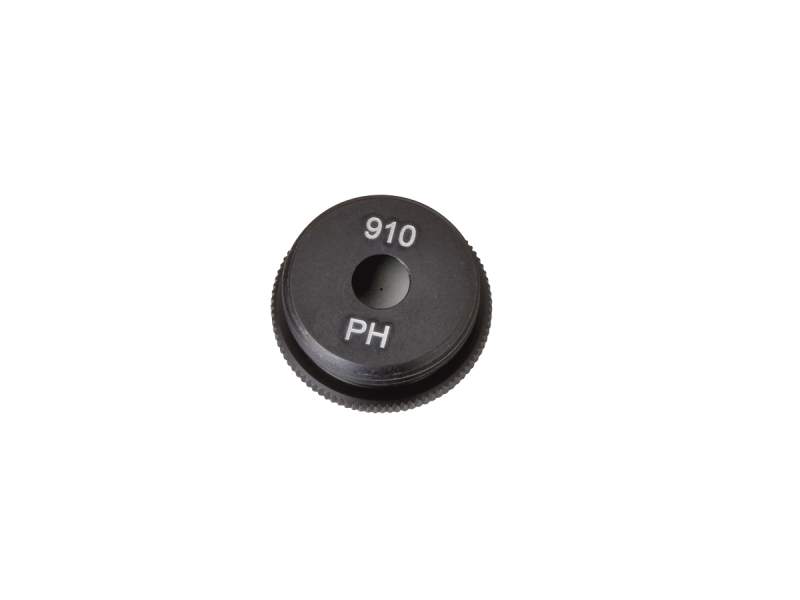

High-Energy Pinhole Set, Molybdenum, Unmounted

High-Energy Pinhole Set, Molybdenum, Unmounted

Model: PH-SET

$484

In Stock

Compare

Add to List

Product Series Overview

High Energy Unmounted Molybdenum Pinholes

The PH-SET Unmounted Pinhole Set includes one of each size unmounted pinhole, including: PH-5, PH-10, PH-15, PH-25, and PH-50.

Specifications

Technical Specs

Type

Pinhole Set
Mounting

Unmounted
Material

Molybdenum
Diameter

9.525 mm
Diameter Tolerance

±0.125 mm

Damage Threshold

75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness

15.24 µm
Use

910P-MNT or 900P-MNT Pinhole Mounts

Type

Pinhole Set
Mounting

Unmounted
Material

Molybdenum
Diameter

9.525 mm
Diameter Tolerance

±0.125 mm

Damage Threshold

75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness

15.24 µm
Use

910P-MNT or 900P-MNT Pinhole Mounts

Resources & Downloads

Other

PH-SET RoHS Certificate (261.2 kB, PDF)

Related Products

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		PH-10 High-Energy Pinhole, Molybdenum, 10 µm, Unmounted	UNIVERSAL		In Stock	$107
		PH-15 High-Energy Pinhole, Molybdenum, 15 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-40 High-Energy Pinhole, Molybdenum, 40 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-1.0 High-Energy Pinhole, Molybdenum, 1 µm, Unmounted	UNIVERSAL		In Stock	$158
		PH-75 High-Energy Pinhole, Molybdenum, 75 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-100 High-Energy Pinhole, Molybdenum, 100 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-20 High-Energy Pinhole, Molybdenum, 20 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-25 High-Energy Pinhole, Molybdenum, 25 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-50 High-Energy Pinhole, Molybdenum, 50 µm, Unmounted	UNIVERSAL		In Stock	$90
		PH-5 High-Energy Pinhole, Molybdenum, 5 µm, Unmounted	UNIVERSAL		In Stock	$113
		PH-30 High-Energy Pinhole, Molybdenum, 30 µm, Unmounted	UNIVERSAL		In Stock	$90

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		910P-MNT High-Energy Pinhole, Requires Molybdenum Pinhole, 0.875-20 Thread, 910A Series	UNIVERSAL		In Stock	$70
		910A Spatial Filter, Compact, Five-Axis, XY θxθy 100TPI, Z 80TPI	UNIVERSAL		In Stock	$1,024
		900P-MNT High Energy Pinhole Mount, Requires Unmounted Pinhole	UNIVERSAL		In Stock	$119
		900 Spatial Filter, Three-Axis	IMPERIAL		In Stock	$1,266
		M-900 Spatial Filter, Three-Axis, Metric	METRIC		In Stock	$1,266
