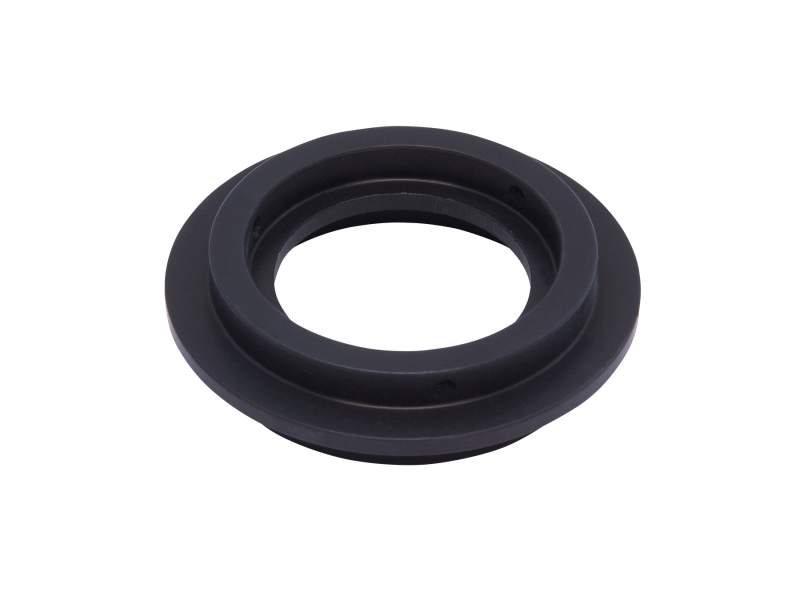

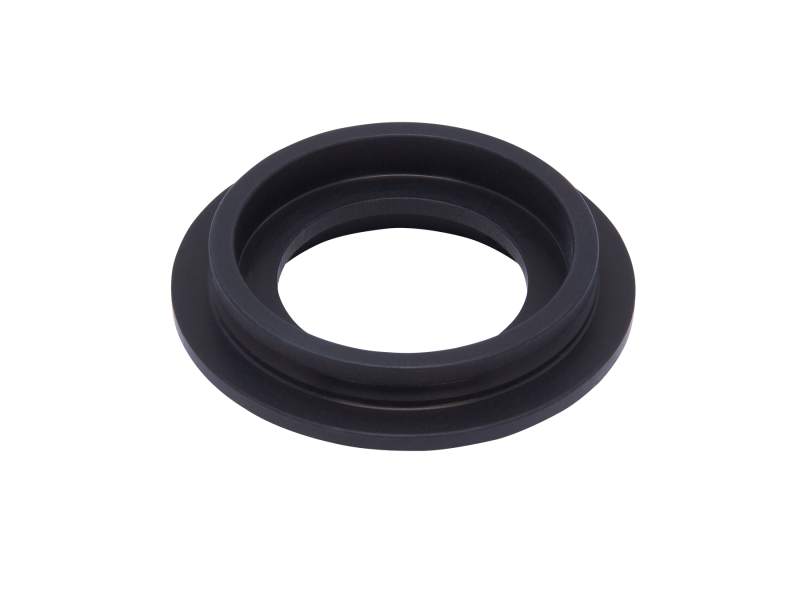

Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female

The 66292 Flange Step Down Adapter has a 2 Inch Series male flange on one end and a 1.5 Inch Series Female flange on the other. It allows you to take advantage of our wider selection of 1.5 Inch Series accessories. Keep in mind that there will be power loss from a collimated beam due to the reduction in clear aperture from 1.9 to 1.3 inch. If the beam is focused, the step down can be made without power loss. You can then re-collimate the beam with a 1.5 Inch Series secondary focusing lens assembly.

Specifications

Technical Specs

Type
Step Down Adaptor
Flange Series Size
2 & 1.5 Inch
Flange Type
Set Screw

Type
Step Down Adaptor
Flange Series Size
2 & 1.5 Inch
Flange Type
Set Screw

Resources & Downloads

2D Product Drawings

LS-221a(567.8 kB, PDF)
