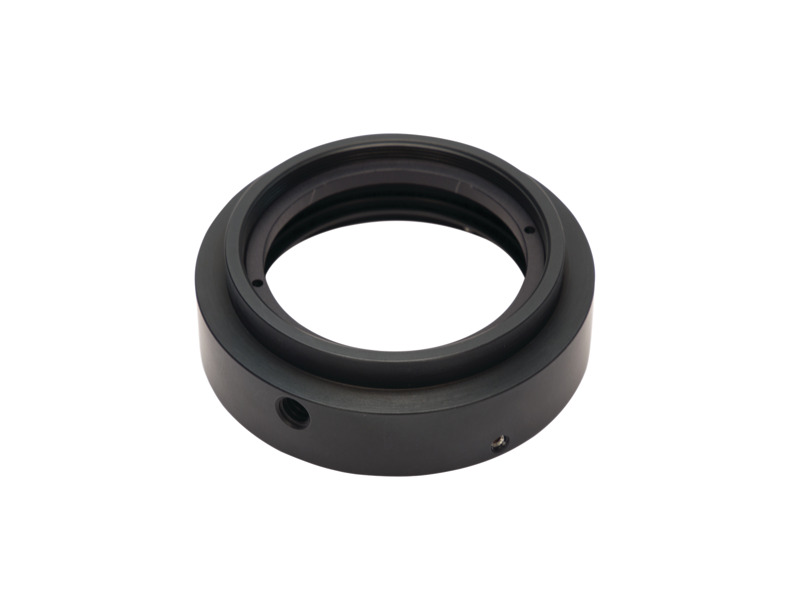

Flanged Lens Holder, 2.0 in. Diameter, 2 Inch Series Flange

Flanged Lens Holder, 2.0 in. Diameter, 2 Inch Series Flange

Model: 6222

$105

Compare

Add to List

Product Series Overview

Flanged Lens Holders and Cells

The 6222 Flange Mounted Cell is a simple lens holder with a 2 Inch Series female-flange on one end and a male-flange on the other. It holds 2 inch (50.8 mm) diameter optics. It is ideal for holding optical accessories at the input or output of our light sources, monochromators and other flanged instruments. This set screw model couples to male-flanged components via three set screws, and is light tight.

Specifications

Technical Specs

Type

Flanged Lens Holder
Flange Series Size

2 Inch
Flange Type

Set Screw

Diameter

50.8 mm
Thread Type

1/4-20

Type

Flanged Lens Holder
Flange Series Size

2 Inch
Flange Type

Set Screw

Diameter

50.8 mm
Thread Type

1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LS-218a (646.2 kB, PDF)
