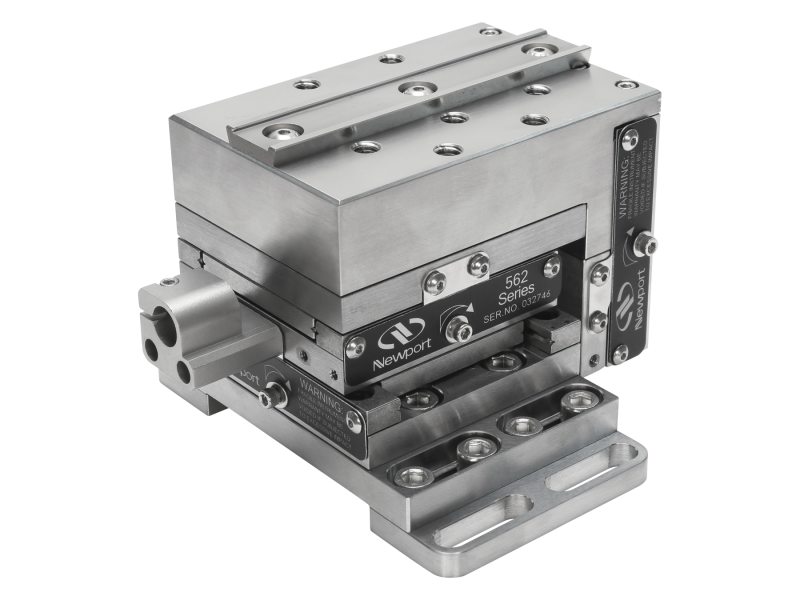

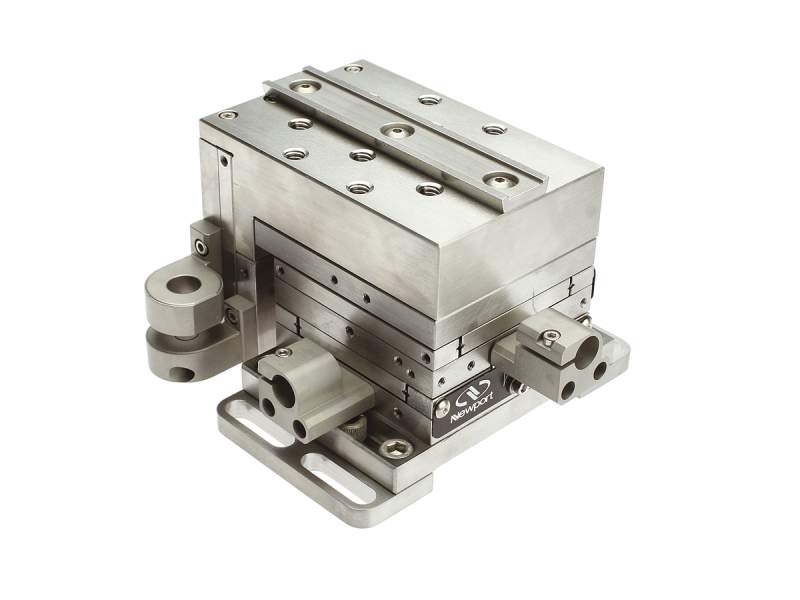

Fiber Alignment Stage, ULTRAlign, Right-Handed, 13 mm XYZ Travel, 8-32 and 1/4-20

Technical Specs

  • Stage Type
    Right-Handed
  • Axes of Travel
    XYZ
  • Travel Range X, Y, Z
    13 mm, 13 mm, 13 mm
  • Thread Type
    8-32 and 1/4-20
  • Load Capacity
    156 N
  • Angular Deviation
    <100 µrad
  • Optical Axis Height
    98.4 mm
