Intermediate Adaptor Plate, Round, Φ105 mm, PI86.02 Series

Model: 338296

$110

In Stock

Compare

Add to List

Product Series Overview

Intermediate Adaptor Plates, PI Series

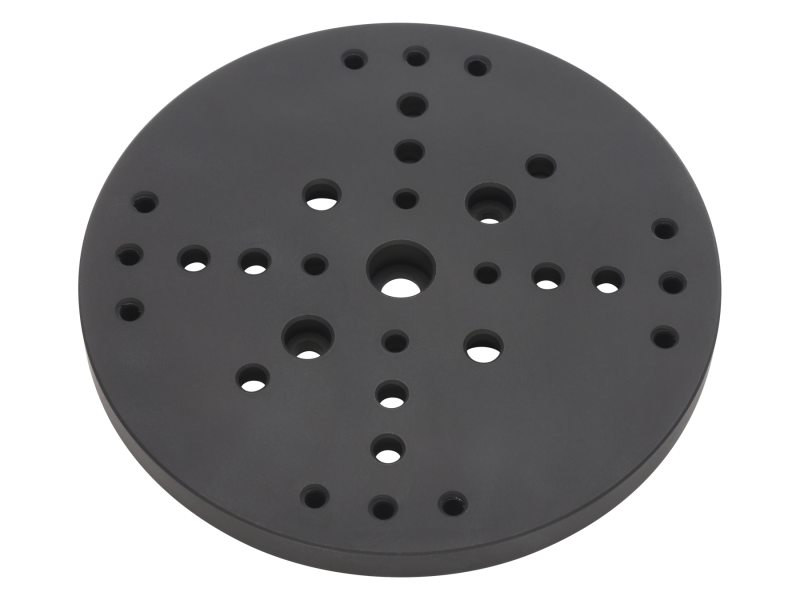

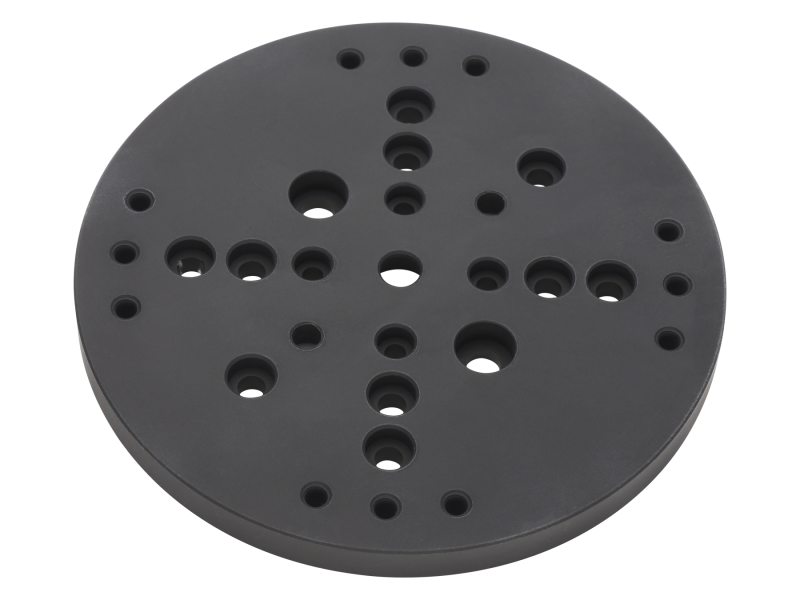

The 338296 Round Intermediate Adaptor Plate is 105 mm in diameter and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.

Specifications

Technical Specs

Type

Intermediate Adaptor Plate
Dimensions

Ø105 mm
Material

Aluminum

Use

UMR and UTR Stages

Type

Intermediate Adaptor Plate
Dimensions

Ø105 mm
Material

Aluminum

Use

UMR and UTR Stages
