Intermediate Adaptor Plate, 120 x 120 mm Square, PI120 Series

Model: 338285

$103

In Stock

Compare

Add to List

Product Series Overview

Intermediate Adaptor Plates, PI Series

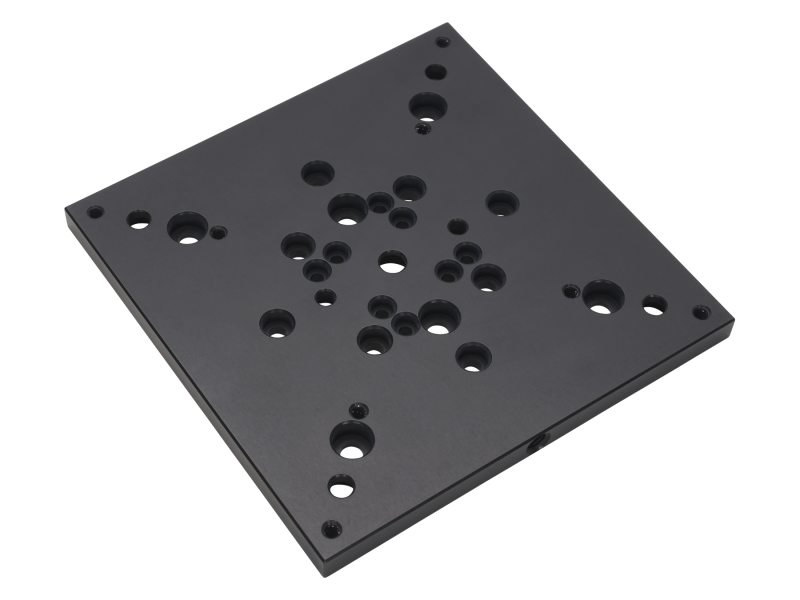

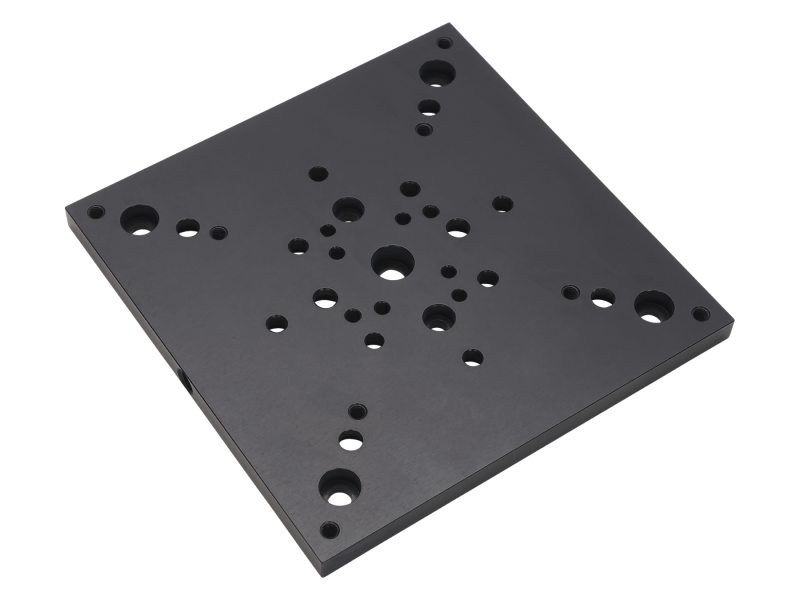

The 338285 Square Intermediate Adaptor Plate is 120 x 120 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR12 stages.

Specifications

Technical Specs

Type

Intermediate Adaptor Plate
Dimensions

120 x 120 mm
Material

Aluminum

Use

UMR and UTR Stages

Type

Intermediate Adaptor Plate
Dimensions

120 x 120 mm
Material

Aluminum

Use

UMR and UTR Stages
