Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.01 Series
Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.01 Series
Model: 338283
Product Series Overview

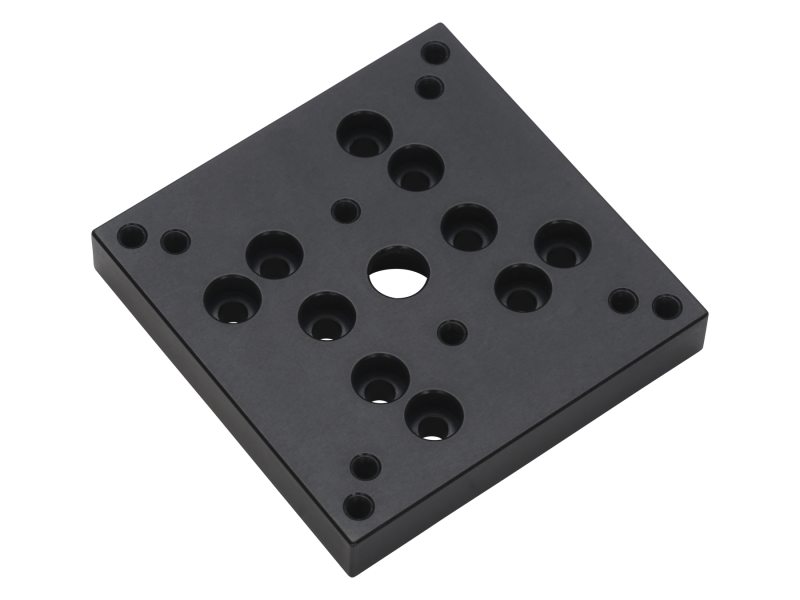

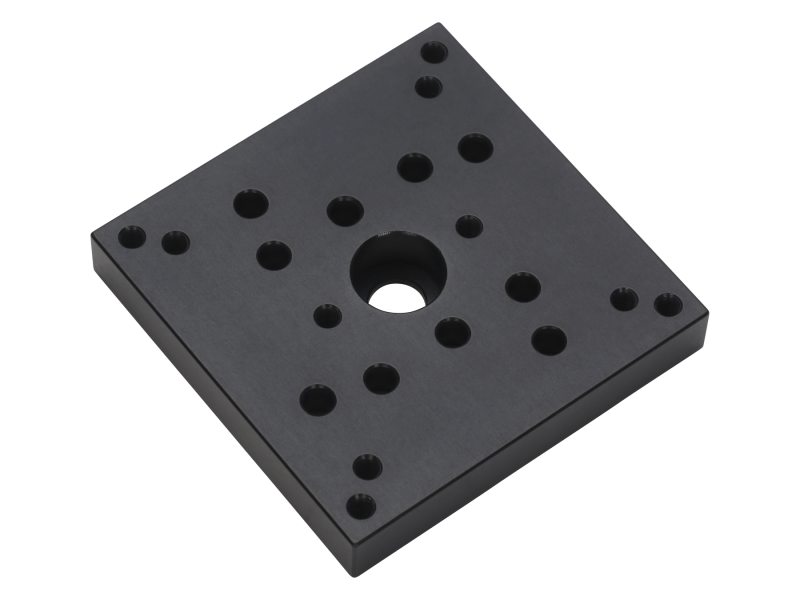

Intermediate Adaptor Plates, PI SeriesThe 338283 Square Intermediate Adaptor Plate is 50 x 50 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR5 stages.
Resources & Downloads
2D Product Drawings
PI50-01-S(93.6 kB, PDF)
