Cube Beamsplitter, Polarizing, 25.4 mm, 420-680 nm

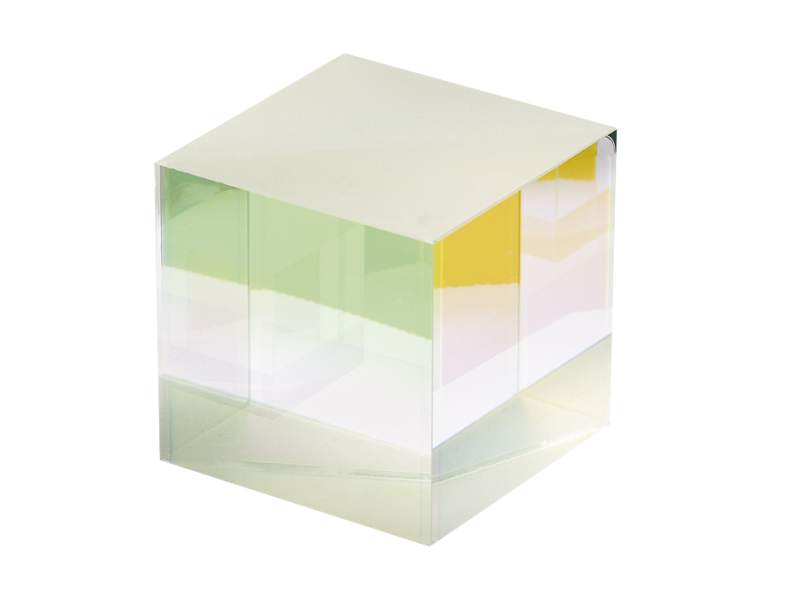

1.0 inch (25.4 mm) broadband polarizing cube beamsplitter

Cube Beamsplitter, Polarizing, 25.4 mm, 420-680 nm

Model: 10FC16PB.3

$469

In Stock

Compare

Product Series Overview

Broadband Polarizing Cube Beamsplitters

The 10FC16PB.3 Broadband Polarizing Cube Beamsplitter provides efficient polarization for use with multiple or tunable sources. The 25.4 mm cube polarizer consists of a pair of precision right-angle prisms carefully cemented together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for a 420 to 680 nm wavelength range. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses.
An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 500:1, yet it averages 1000:1. This unique component provides all the benefits of a broadband polarizer in a standard cube configuration.

Specifications

Technical Specs

Wavelength Range
420-680 nm
Size
25.4 x 25.4 x 25.4 mm
Shape
Cube
Material
SF 2, NSSK grade
Coating Type
Broadband polarizing
Coating Code
PB.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±5°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.5% average
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >80%, >90% average
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >500:1, 1000:1 average
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
420-680 nm
Size
25.4 x 25.4 x 25.4 mm
Shape
Cube
Material
SF 2, NSSK grade
Coating Type
Broadband polarizing
Coating Code
PB.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±5°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.5% average
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >80%, >90% average
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >500:1, 1000:1 average
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics
