Medium Power Mercury-Xenon Light Sources

Compare	Model	Compatibility	rankScore		Lamp Wattage	Lamp Type	Condenser Type	F/#	Availability	Price	Brand
66485-200HX-R1 Light Source, Mercury-Xenon, 200 W, F/1 Asphere, Research Housing $9,250 6 Weeks	66485-200HX-R1 Light Source, Mercury-Xenon, 200 W, F/1 Asphere, Research Housing	UNIVERSAL	1.0	1.0	200 W	Hg(Xe)	Asphere	F/1	6 Weeks	$9,250	Oriel Instruments
66984-200HX-R1 Light Source, Mercury-Xenon, 200 W, F/1 Plano-Convex, Research Housing $8,810 6 Weeks	66984-200HX-R1 Light Source, Mercury-Xenon, 200 W, F/1 Plano-Convex, Research Housing	UNIVERSAL	1.0	2.0	200 W	Hg(Xe)	Two Element Plano-Convex	F/1	6 Weeks	$8,810	Oriel Instruments
66983-200HX-R15 Light Source, Mercury-Xenon, 200 W, F/1.5 Plano-Convex, Research Housing $8,810 6 Weeks	66983-200HX-R15 Light Source, Mercury-Xenon, 200 W, F/1.5 Plano-Convex, Research Housing	UNIVERSAL	1.0	3.0	200 W	Hg(Xe)	Plano-Convex	F/1.5	6 Weeks	$8,810	Oriel Instruments
66483-200HX-R22 Light Source, Mercury-Xenon, 200 W, F/2.2 Asphere, Research Housing $9,365 6 Weeks	66483-200HX-R22 Light Source, Mercury-Xenon, 200 W, F/2.2 Asphere, Research Housing	UNIVERSAL	1.0	4.0	200 W	Hg(Xe)	Asphere	F/2.2	6 Weeks	$9,365	Oriel Instruments
66477-200HXF-R1 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1 Asphere $9,890 6 Weeks	66477-200HXF-R1 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1 Asphere	UNIVERSAL	1.0	5.0	200 W	Hg(Xe), Ozone Free	Asphere	F/1	6 Weeks	$9,890	Oriel Instruments
66907-200HXF-R1 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1 2-Element Plano-Convex $9,915 6 Weeks	66907-200HXF-R1 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1 2-Element Plano-Convex	UNIVERSAL	1.0	6.0	200 W	Hg(Xe), Ozone Free	Two Element Plano-Convex	F/1	6 Weeks	$9,915	Oriel Instruments
66906-200HXF-R15 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1.5 Plano Convex $9,250 6 Weeks	66906-200HXF-R15 Light Source, Mercury-Xenon, 200 W Ozone Free, F/1.5 Plano Convex	UNIVERSAL	1.0	7.0	200 W	Hg(Xe), Ozone Free	Plano-Convex	F/1.5	6 Weeks	$9,250	Oriel Instruments
66475-200HXF-R22 Light Source, Mercury-Xenon, 200 W Ozone Free, F/2.2 Asphere $9,580 6 Weeks	66475-200HXF-R22 Light Source, Mercury-Xenon, 200 W Ozone Free, F/2.2 Asphere	UNIVERSAL	1.0	8.0	200 W	Hg(Xe), Ozone Free	Asphere	F/2.2	6 Weeks	$9,580	Oriel Instruments
66485-500HX-R1 Light Source, Mercury-Xenon, 500 W, F/1 Asphere, Research Housing $10,970 6 Weeks	66485-500HX-R1 Light Source, Mercury-Xenon, 500 W, F/1 Asphere, Research Housing	UNIVERSAL	1.0	9.0	500 W	Hg(Xe)	Asphere	F/1	6 Weeks	$10,970	Oriel Instruments
66984-500HX-R1 Mercury-Xenon Source, 500 W, F/1, 2 Element Plano-Convex, Research Housing $10,795 6 Weeks	66984-500HX-R1 Mercury-Xenon Source, 500 W, F/1, 2 Element Plano-Convex, Research Housing	UNIVERSAL	1.0	10.0	500 W	Hg(Xe)	Two Element Plano-Convex	F/1	6 Weeks	$10,795	Oriel Instruments
66983-500HX-R15 Mercury-Xenon Source, 500 W, F/1.5 Plano-Convex, Research Housing $10,220 6 Weeks	66983-500HX-R15 Mercury-Xenon Source, 500 W, F/1.5 Plano-Convex, Research Housing	UNIVERSAL	1.0	11.0	500 W	Hg(Xe)	Plano-Convex	F/1.5	6 Weeks	$10,220	Oriel Instruments
66483-500HX-R22 Light Source, Mercury-Xenon, 500 W, F/2.2 Asphere, Research Housing $10,860 6 Weeks	66483-500HX-R22 Light Source, Mercury-Xenon, 500 W, F/2.2 Asphere, Research Housing	UNIVERSAL	1.0	12.0	500 W	Hg(Xe)	Asphere	F/2.2	6 Weeks	$10,860	Oriel Instruments

Features

All Necessary Components for Lamp Operation Included

Each light source includes an arc lamp, appropriate socket adapter, lamp housing interconnection cable, power supply, and Research Lamp Housing. After a quick and easy assembly, the light source is ready for use and easily integrated into a user's setup. The lamp housings offered with these light source kits are capable of operating a variety of DC arc lamps. This allows the user to interchange lamps in their setup simply by replacing the lamp, socket adapter, and lamp housing interconnection cable (if necessary) in their lamp housing. It is recommended to confirm lamp compatibility prior to purchase.

Two 200 W Hg(Xe) Lamp Options

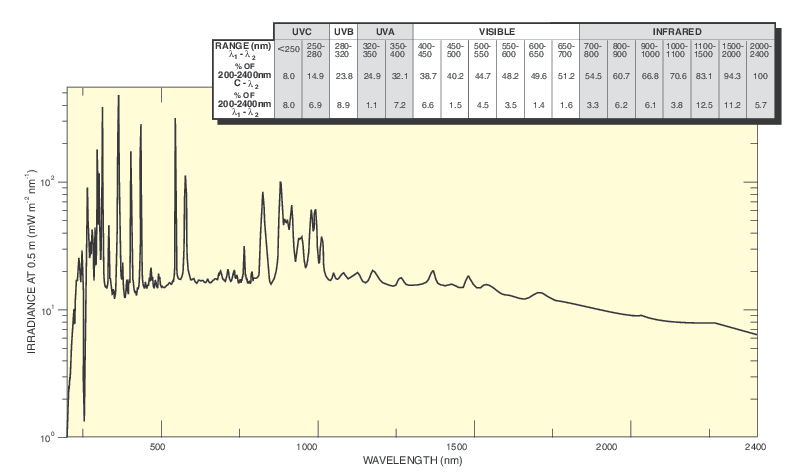

Hg(Xe) lamps combine the UV spectral lines of an Hg lamp with the IR spectral lines of a Xe lamp. For users that do not require wavelength output below 260 nm, the 6290 Ozone Free lamp is a good option. If an ozone producing lamp such as the 6291 must be used, it is important that the user to protected from UV radiation and ozone emission. In addition to wearing protecting clothing, eyewear, and gloves to protect from UV radiation, the lamp should also be operated in an environment with proper ventilation or outdoors to avoid exposure to ozone. If this operating environment is not possible, an Ozone Eater should be used.

500 W Hg(Xe) Lamp Option

The 66142 500 W Hg(Xe) arc lamp is an option when higher excitation power is required.

Oriel Research Arc Lamp Housing

All Oriel Research Arc Lamp Housings include a built-in ignitor board and rear reflector for optimum lamp performance. The rear reflector collects backscattering from the lamp that would otherwise be lost and approximately increases the output intensity by 60%. A built-in cooling fan maintains a safe operating temperature for the lamp. The user is protected from accidental exposure to UV radiation and electrical shock by the lamp housing's safety interlock, which disables ignition and power to the lamp if the housing door or lamp housing interconnection cable is not securely connected. These four lamp housing options differ in the condenser lens assembly mounted. Condenser lens assemblies differ in the type of lens used and F/#.

F/1 Two Element Plano Convex Lens Option

Light sources with the R1 suffix include the model 66902 light source housing which contains a two element Plano Convex lens configuration with an f-number of F/1.

F/1.5 Plano Convex Lens Option

Light sources with the R15 suffix include the model 66901 light source housing which contains an economical F/1.5 plano-convex lens.

F/1 Aspheric Lens Option

Light sources with the R1 suffix include the model 67005 light source housing offering an F/1 single element aspheric lens configuration. The front surface of an aspheric lens gradually changes in curvature from the center of the lens to the edge. This shape reduces spherical aberration more effectively than a plano-convex lens.

F/2.2 Aspheric Lens Option

Light sources with the R22 suffix include the model 67001 light source housing offering an F/2.2 single element aspheric lens configuration. The front surface of an aspheric lens gradually changes in curvature from the center of the lens to the edge. This shape reduces spherical aberration more effectively than a plano-convex lens. Higher f-number is suggested if a high quality collimated beam is needed from the output of the lamp housing.

High Stability Arc Lamp Power Supply

The 69911 power supply provided with these light sources is a highly regulated 500 W arc lamp power supply. Much of an arc lamp's stability in wavelength and output intensity is due to keeping the temperature and pressure of the gas inside the lamp's envelope as constant possible. The power supply provides highly stable voltage and current supply to the arc lamp, keeping the arc lamp's ripple to less than 0.5% rms while maximizing the lifetime of the lamp.

Simple Lamp Alignment Process

Due to small manufacturing differences between lamps, the rear reflector position and lamp position relative to the condenser lens must be adjusted when a new lamp is installed in the housing. Adjustment knobs located on the exterior of the lamp housing allow for optimum positioning of the lamp and rear reflector.

Arc Lamp Safety

Arc lamps may emit dangerous levels of UV radiation depending on their source type. Ensure that only authorized personnel are in the vicinity of the source, and wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves. Lighted UV warning signs, posted outside laboratory doors where UV sources are operating, can prevent accidental exposure. Newport also recommends using an electronic shutter to block the beam when the source is not in use but remains turned on. Alternatively, the beam can be safely contained by using beam tubes or fiber optic cables to deliver the light to a sample. It is recommended to vent the ozone that is produced by some lamp models to the outside or use an Ozone Eater.
