Precision Singlet Lens Sets

Available in either fused silica or N-BK7 materials, Newport's Precision Singlet Lens Sets can speed up assembly of complex optical setups and facilitate engineering prototype evaluation.

N-BK7 or UV grade fused silica substrates
Uncoated or AR coated optics
Master or introductory sets
Plano-convex, bi-convex, plano-concave, and bi-concave shapes,Easy to identify edge-marked product numbers
Conveniently organized in a protective hardwood case

See All Features

Show Filters:

Showing 10 of 22 total products

Compatibility:

Description	Compatibility	Antireflection Coating	Diameter	Quantity	Material	Price
20LKT-1-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, Uncoated	UNIVERSAL	Uncoated	50.8 mm	41	N-BK7	$3,822
20LKT-1AR.14-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	50.8 mm	41	N-BK7	$4,914
20LKT-1AR.16-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	50.8 mm	41	N-BK7	$5,314
20LKT-1AR.18-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	50.8 mm	41	N-BK7	$5,314
20LKT-2-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, Uncoated	UNIVERSAL	Uncoated	50.8 mm	20	N-BK7	$2,184
20LKT-2AR.14-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	50.8 mm	20	N-BK7	$2,715
20LKT-2AR.16-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	50.8 mm	20	N-BK7	$3,188
20LKT-2AR.18-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	50.8 mm	20	N-BK7	$3,188
LKIT-1-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	44	N-BK7	$1,639
LKIT-1AR.14-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	25.4 mm	44	N-BK7	$2,402

Show All

Features

Standard Optics Sets with Edge Marked Optics

Our standard optic sets include a wood case organized by part number and key optic information. Confusion in identifying optical components is eliminated with edge marked part numbers on every optic in the OptiSet™. All edge markings are impervious to standard optical cleaning solutions.

N-BK7 Master Sets

These lens sets provide a comprehensive selection of lens shapes and focal lengths in N-BK7 optical glass. Plano-convex and bi-convex lenses are provided with focal lengths from 19 to 1000 mm for the 25.4 mm set and 38.1-1000 mm for the 50.8 mm set. Focal lengths from -25 to -200 mm for the 25.4 mm set and -75 to -500 mm for the 50.8 mm set are provided in plano-concave and bi-concave lens shapes.

N-BK7 Introductory Sets

These lens sets provide a more economical selection of lenses that can be expanded upon special request. Like the N-BK7 Master Sets, the lenses in these sets are made from quality N-BK7 optical glass. All four basic shapes are included in this streamlined version of the Master Set.

Model	Plano-Convex	Bi-Convex	Plano-Concave	Bi-Concave
LKIT-1 Master	KPX076, KPX079, KPX082, KPX085, KPX088, KPX091, KPX094, KPX097, KPX100, KPX103, KPX106, KPX109, KPX112, KPX115, KPX118, KPX121, KPX124	KBX043, KBX046, KBX049, KBX052, KBX055, KBX058, KBX061, KBX064, KBX067, KBX070, KBX073, KBX076, KBX079, KBX082, KBX088	KPC028, KPC031, KPC034, KPC037, KPC040, KPC043	KBC031, KBC034, KBC037, KBC040, KBC043, KBC046
LKIT-2 Intro	KPX076, KPX079, KPX082, KPX088, KPX094, KPX100, KPX106, KPX112, KPX118, KPX124	KBX046, KBX052, KBX058, KBX064, KBX076, KBX082	KPC031, KPC040, KPC043	KBC046
20LKT-1 Master	KPX178, KPX181, KPX184, KPX187, KPX190, KPX193, KPX196, KPX199, KPX202, KPX205, KPX208, KPX211, KPX214, KPX217	KBX139, KBX142, KBX145, KBX148, KBX151, KBX154, KBX157, KBX160, KBX163, KBX166, KBX169, KBX172, KBX175, KBX178, KBX184	KPC064, KPC067, KPC070, KPC073, KPC076, KPC079	KBC070, KBC073, KBC076, KBC079, KBC082, KBC085
20LKT-2 Intro	KPX187, KPX193, KPX199, KPX202, KPX205, KPX208, KPX211, KPX214, KPX217	KBX139, KBX142, KBX148, KBX154, KBX160, KBX166, KBX178	KPC064, KPC070, KPC076	KBC085

UV Fused Silica Master Sets

These are comprehensive collections of 25.4 mm diameter UV grade fused silica lenses. Focal lengths range from 25.4 to 1000 mm in plano-convex and bi-convex lenses and -50 to -1000 mm in plano-concave and bi-concave lens shapes.

UV Fused Silica Introductory Sets

These sets contain more limited collections of UV grade fused silica lenses. They are economical selections of all four lens shapes that can be expanded upon special request.

Model	Plano-Convex	Bi-Convex	Plano-Concave	Bi-Concave
LKIT-FS1 Master	SPX016, SPX019, SPX022, SPX025, SPX028, SPX031, SPX035	SBX019, SBX022, SBX025, SBX028, SBX031, SBX034, SBX037, SBX040, SBX043	SPC016, SPC019, SPC022, SPC025, SPC028, SPC031, SPC034	SBC016, SBC019, SBC022, SBC025, SBC028, SBC031, SBC034
LKIT-FS2 Intro	SPX016, SPX019, SPX022, SPX025, SPX028, SPX031, SPX034	SBX016, SBX022, SBX025, SBX028	SPC025, SPC028, SPC034	SBC034

Antireflection Coatings

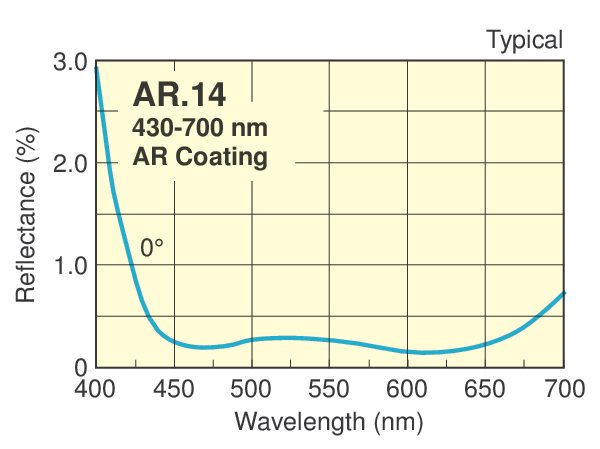

Antireflection coatings can significantly improve the transmission of a multi-element optical system. Any of our standard broadband AR coatings are available as lens set options. Laser line V-coatings are available on special request. See Broadband Multilayer Antireflection Coatings and Laser Line Antireflection V-Coatings for antireflection coating specifications.

-P Optics Sets with Laser Etched Optics

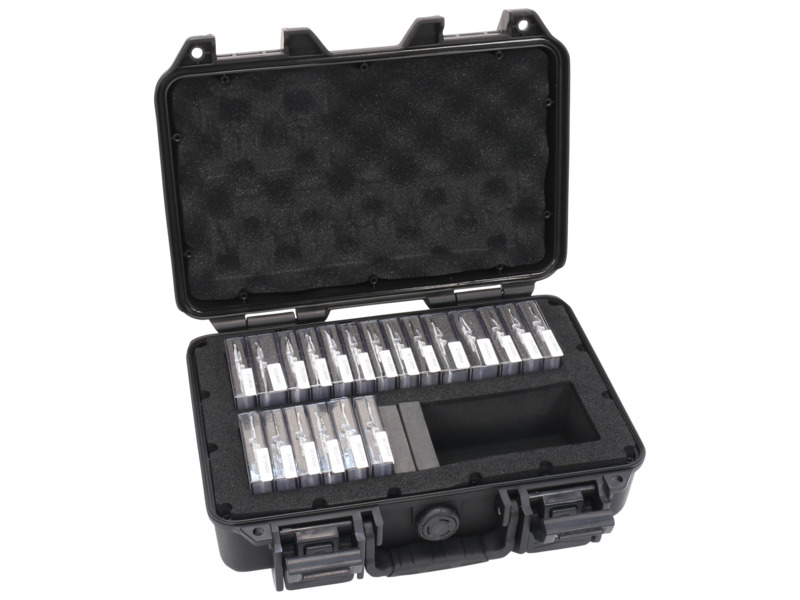

Our -P optic sets include a plastic carrying case with individual protective plastic cases for each optic marked with the part number and key optic information. Confusion in identifying optical components is eliminated with laser etched part numbers on the edge of every optic in the set.
