Compare Model Drawings, CAD & Specs Optic Diameter Adjustments Thread Type Optical Axis Height Material Availability Price
$110
In Stock
2.5-50.8 mm Fixed 8-32 50.8 mm Anodized Aluminum
In Stock

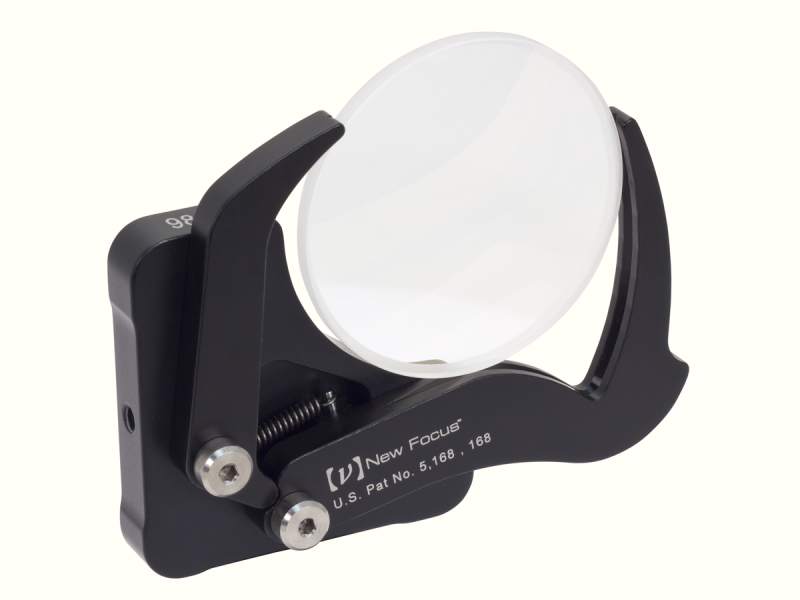

opti-claw self-centering lens mount shown with optical lens
$110
In Stock
2.5-50.8 mm Fixed M4 50.8 mm Anodized Aluminum
In Stock
$179
In Stock
2.5-50.8 mm Z θXθY 8-32 (M4) CLR 50.8 mm Anodized Aluminum
In Stock
$261
In Stock
1.5-16 mm Z θXθY 2-56 (M2) CLR 15.9 mm Stainless Steel
In Stock
$258
In Stock
1.5-16 mm Z θXθY 2-56 (M2) CLR 15.9 mm Stainless Steel
In Stock

Features

Automatically Self Centering

The self aligning movement of the of Opti-Claw's V-clamp keeps lenses on a common optical axis regardless of diameter.

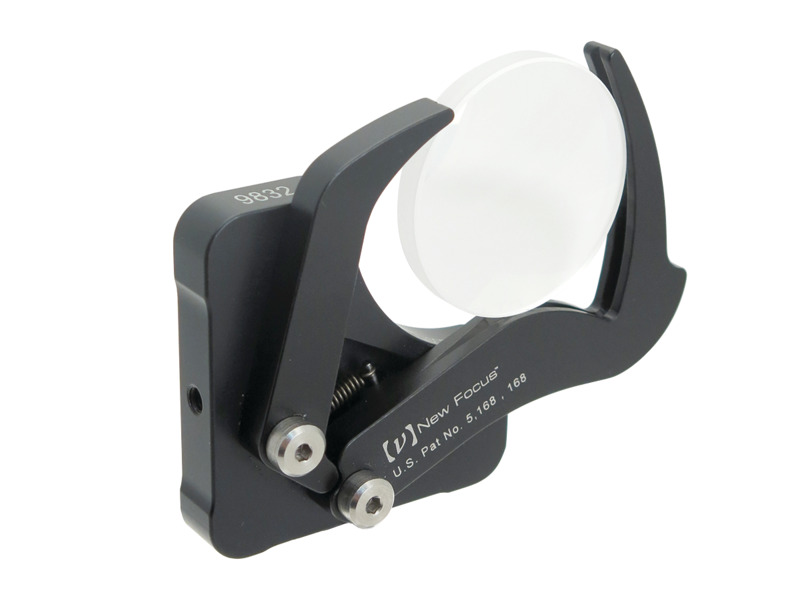

Tiny Opti-Claw mount model 9872-K

Holds More Than Just Lenses

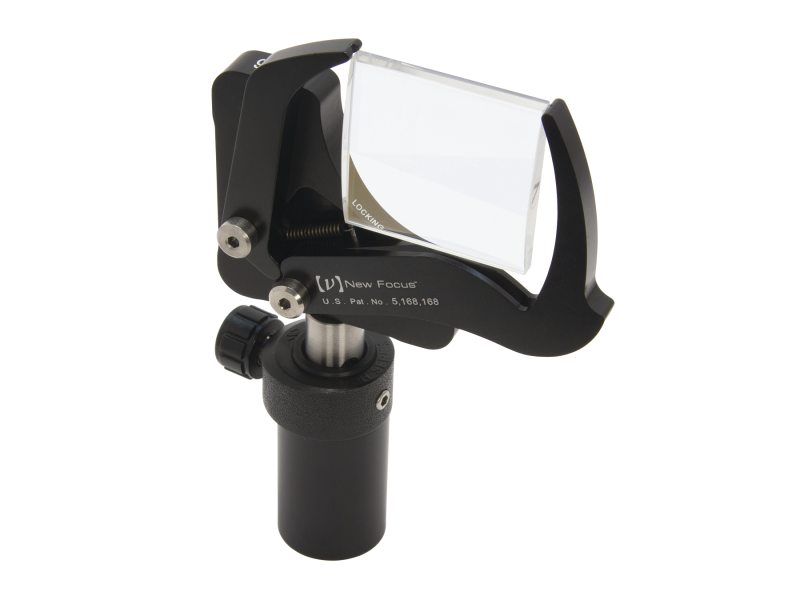

The 3-point optic mount on the Opti-Claw allows it to hold square or cylindrical optics in addition to round lenses.

Lenses Held as Firm as Fixed Lens Mounts

Once in place, a setscrew locks the jaws solidly as a fixed-diameter mount by pushing them against the mounting plate.
