9854 Opti-Claw Mount

Opti-Claw Mount, Tilting.1 to 2.0 in., 3 Knob Adjustment

Model: 9854

$228

In Stock

Compare

Add to List

Product Series Overview

Opti-Claw Self-Centering Variable Size Lens Mounts

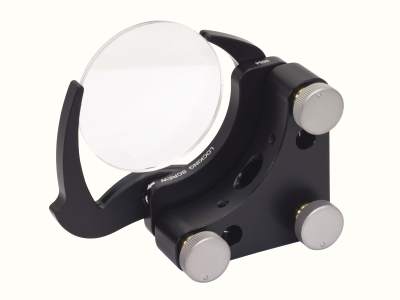

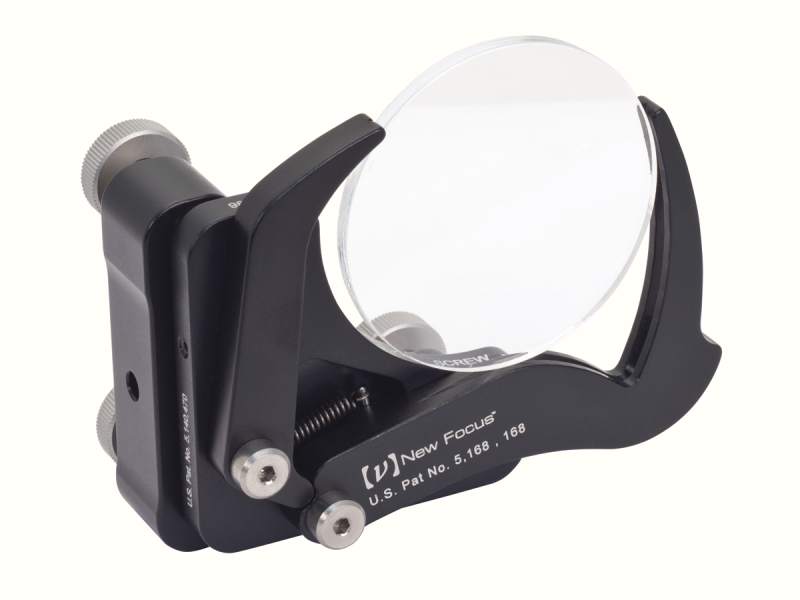

The 9854 Tilting Opti-Claw™ Mount allows you to not have to adjust the height of the mount every time you want to use a different-diameter optic. This clever mount automatically centers any optic with a diameter from 0.10 in. (2.5 mm) to 2.0 in. (51 mm) to within 0.005 in. When used together, two Opti-Claw mounts are ideal for mounting HeNe lasers or other cylindrical objects. For mounting thin optics, the jaws have V-grooves.

Specifications

Technical Specs

Type

Variable Size Lens Mount
Optic Diameter

2.5-50.8 mm
Optical Axis Height

50.8 mm
Adjustments

Z θXθY

Angular Range

±4°
Thread Type

8-32 (M4) CLR
Material

Anodized Aluminum

Type

Variable Size Lens Mount
Optic Diameter

2.5-50.8 mm
Optical Axis Height

50.8 mm
Adjustments

Z θXθY

Angular Range

±4°
Thread Type

8-32 (M4) CLR
Material

Anodized Aluminum
