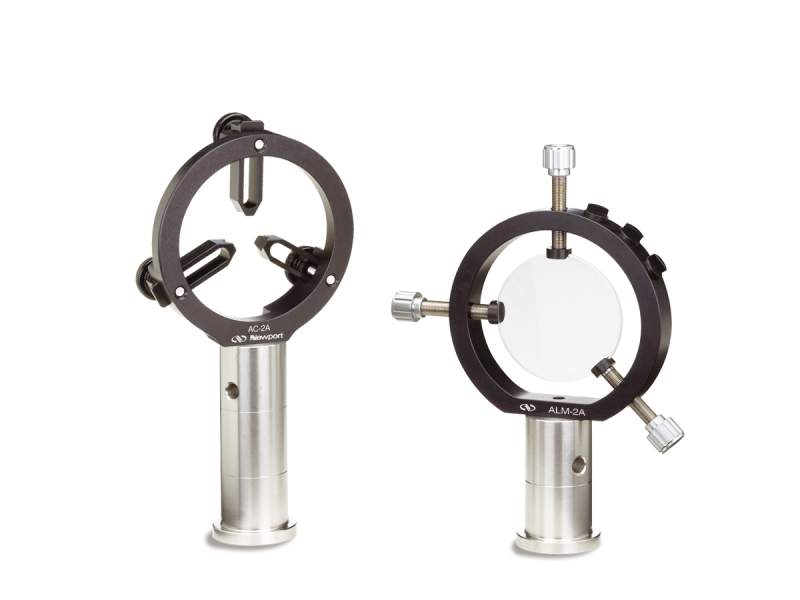

2 common optical axis variable size lens mounts are shown

Overview

Universal variable lens mounts provide support and XY positioning for optics of various size and thickness. The XY adjustability allows for lenses of different sizes to have the same optical axis height.

Variable size lens mounting for 6 to 60 mm lenses
Lenses can be on a common optical axis regardless of size
Provides fine XY centering adjustability
Positive optic loading without risk of damage
Adjustable mounts with rigid, individually adjustable support arms

See All Features

Products

Show entries

Search:

Compare	Model	Optic Diameter	Availability	Price	Brand
AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms $58.00 In Stock	AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms	5.0-46.2 mm	In Stock	$58.00	Newport
AC-2A Variable Size Lens Mount, 17.8-57.1 mm, Thumbscrew Support Arms $76.00 In Stock	AC-2A Variable Size Lens Mount, 17.8-57.1 mm, Thumbscrew Support Arms	17.8-57.1 mm	In Stock	$76.00	Newport
ALM-1A Variable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters $208.00 In Stock	ALM-1A Variable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters	12.7-35.0 mm	In Stock	$208.00	Newport
ALM-2A Variable Size Lens Mount, 25.4-60 mm, 40 TPI XY Adjusters $222.00 In Stock	ALM-2A Variable Size Lens Mount, 25.4-60 mm, 40 TPI XY Adjusters	25.4-60.0 mm	In Stock	$222.00	Newport

Showing 1 to 4 of 4 entries

Previous1Next

Specifications

Search:

Models	AC-1A Model: AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms $58.00 In Stock See Full Product Details Product Series Overview XY Adjustable Variable Size Lens Mounts	AC-2A Model: AC-2A Variable Size Lens Mount, 17.8-57.1 mm, Thumbscrew Support Arms $76.00 In Stock See Full Product Details Product Series Overview XY Adjustable Variable Size Lens Mounts	ALM-1A Model: ALM-1A Variable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters $208.00 In Stock See Full Product Details Product Series Overview XY Adjustable Variable Size Lens Mounts	ALM-2A Model: ALM-2A Variable Size Lens Mount, 25.4-60 mm, 40 TPI XY Adjusters $222.00 In Stock See Full Product Details Product Series Overview XY Adjustable Variable Size Lens Mounts
Optic Diameter	5.0-46.2 mm	17.8-57.1 mm	12.7-35.0 mm	25.4-60.0 mm
Adjustments	Fixed	Fixed	XY	XY
Optical Axis Height	31.8 mm	38.1 mm	25.4 mm	38.1 mm
Thread Type	8-32 (M4) CLR	8-32 (M4) CLR	8-32 (M4) CLR	8-32 (M4) CLR
Use	On-Axis Lens Mounting	On-Axis Lens Mounting	XY Lens Positioning	XY Lens Positioning

Showing 1 to 5 of 5 entries

Features

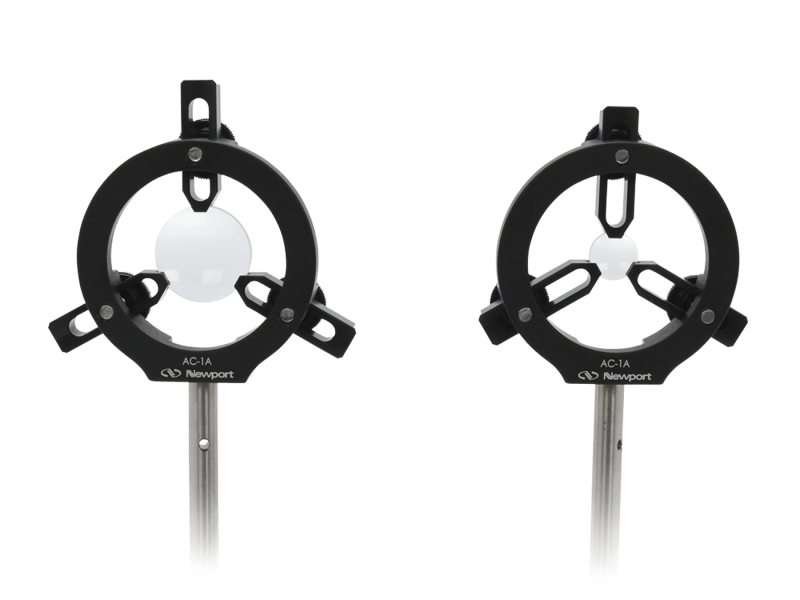

Common Optical Axis for All Size Lenses

The radial design of these universal lens mounts allows lenses to always be on a common optical axis regardless of diameter.

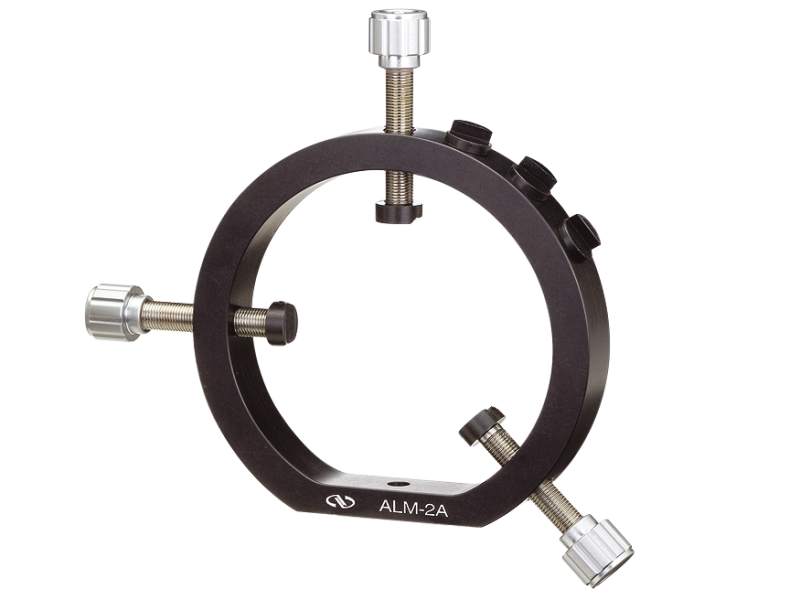

Fine XY Adjustable Versions

Lenses can be precisely located within a XY range of +/- 2 mm by three 40 TPI stainless steel shaft assemblies, two rigid and one spring-loaded; each has removable Delrin V-groove tips. Installing optics is easy. Set the two rigid steel shafts to the desired radius, insert your element and adjust the spring loaded shaft until the optic is held securely in place. In addition to the snap-in V-groove tips for mounting thin optics, a set of L-shaped tips for mounting thick lenses, mirrors and beamsplitters is also included.
