Compare Model Drawings, CAD & Specs Availability Price
Optical Post Holder, 1.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
$11
In Stock
In Stock
Optical Post Holder, 1.75 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
$13.50
In Stock
In Stock
Optical Post Holder, 2.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
$14.50
In Stock
In Stock
Optical Post Holder, 2.35 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
$15.50
In Stock
In Stock

Specifications

Features

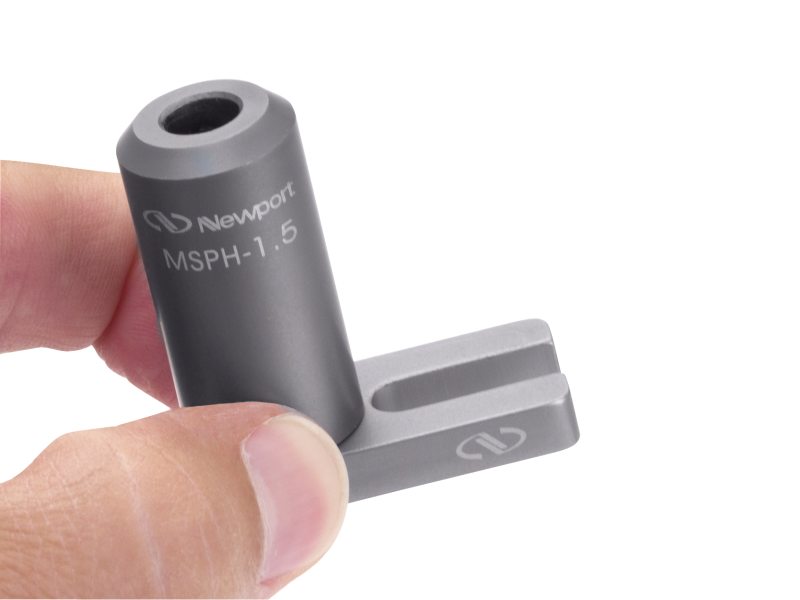

Low-cost, Secure, Miniature Optical Post Mounts

Available in four heights, 1.25, 1.75, 2.25, and 3.25 in. (31.8, 44.5, 57.2, 82.6 mm), these 5/16th in. (7.9 mm) diameter posts securely support our MSP and TSP series miniature posts for compact optical system needs at the lowest cost. These post holders have a double bored inner diameter to provide full two-line contact with the MSP series miniature posts and can be mounted alongside their standard-size versions for easy integration into a wide variety of set-ups.

Open-Slotted Base for Versatile Positioning

Using the same mechanism as the standard-size versions, the slotted base design holds these bases to standard optical tables with 1/4-20 or M6 screws within the range of the base that provides positioning versatility.

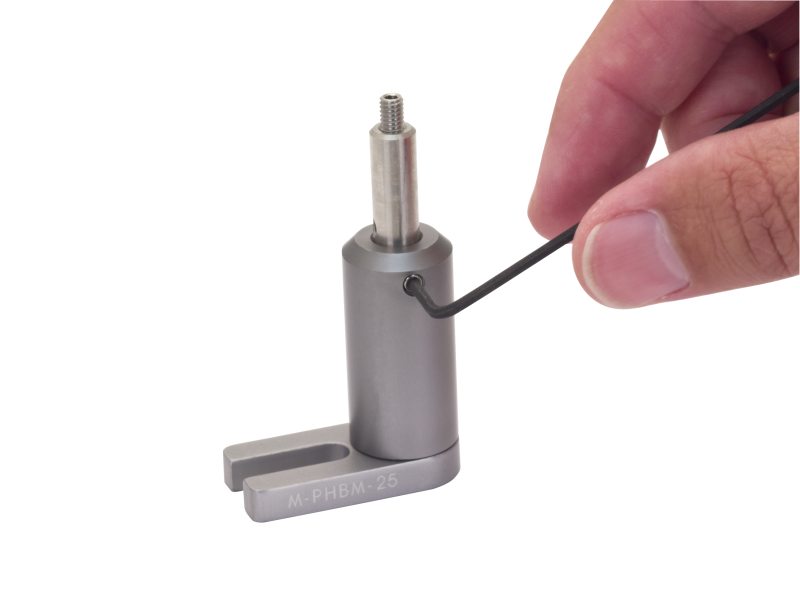

Hex-Key Set Screw Minimizes Profile

The miniature posts these bases support lock into place at the desired height using an M4 set screw, instead of a protruding knob. The set screw locks using a hex-key to keep the profile of these bases to a minimum and provide the most versatility for arranging a compact system.

More Compact

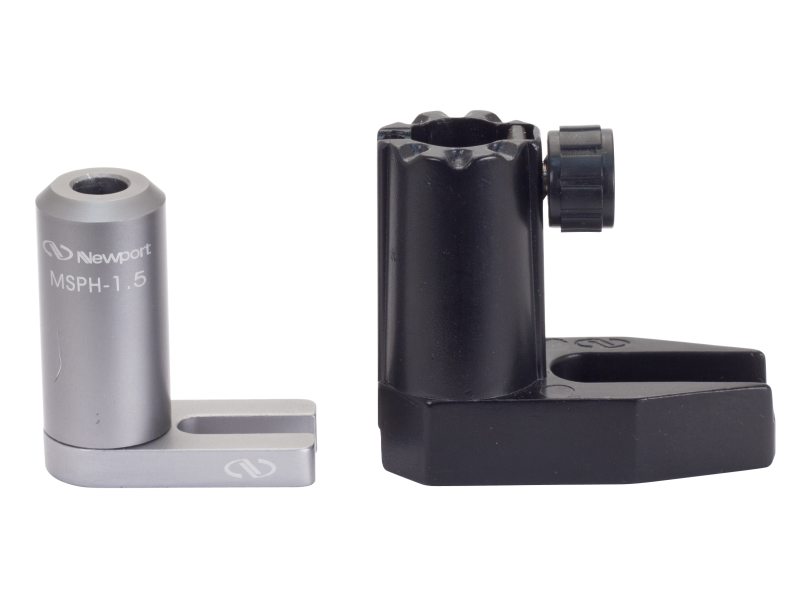

These miniature optical post holders are 25% more compact than our standard holders.

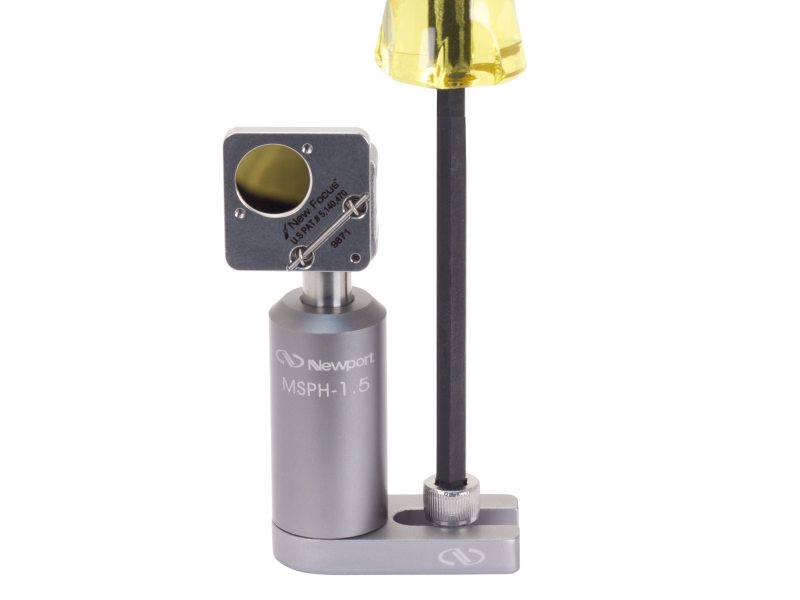

Works Great With Miniature Optical Mounts

The small size of these miniature optical post holders when used with our miniature optical mounts facilitates miniature optical setups.
