Optical Post, 0.75 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads
Optical Post, 0.75 in. Height, 0.313 in. Diameter, 2-56 & 8-32 Threads
Model: TSP-0.75
In Stock
Product Series Overview

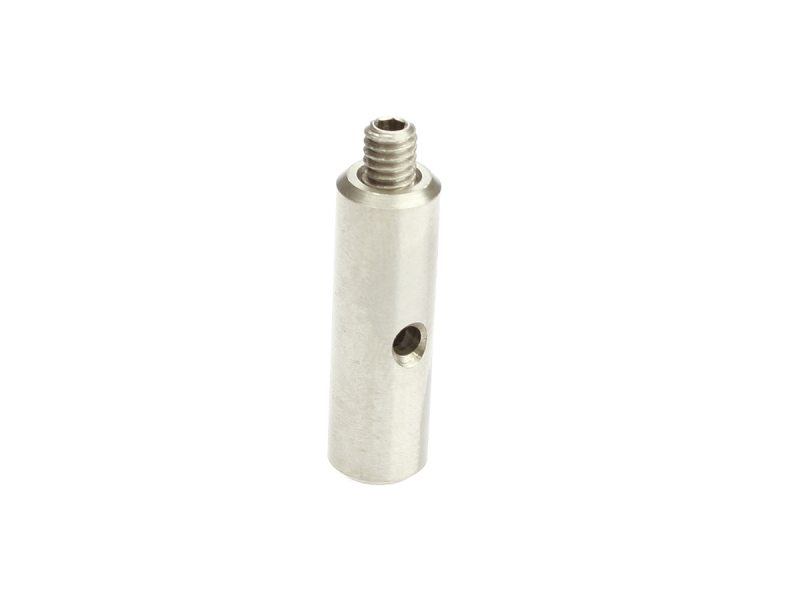

Miniature Optical Mounting PostsThe TSP-0.75 Precision Ground, Miniature Stainless Steel Optical Post is 0.313 in diameter by 0.75 in. in length. It has an 2-56 tapped hole on one end and an 8-32 hole tapped hole on the other. TSP posts are compatible with MSPH Series Post Holders. These posts, with their 2-56 threads, are ideal for mounting 1/2 in. mirror mounts like the SN050 and SS050 Suprema® mirror mounts or the New Focus 987X series Tiny Mounts.
Resources & Downloads
2D Product Drawings
MSP-S(155 kB, PDF)
Other
TSP-0.75 RoHS Certificate(278.2 kB, PDF) TSP-0-75_RoHS2021.pdf(681.8 kB, PDF)
