M-MR1.4
Manual Linear Stage, Miniature, 4 mm Travel, 4.9 N Load Capacity
$230
In Stock

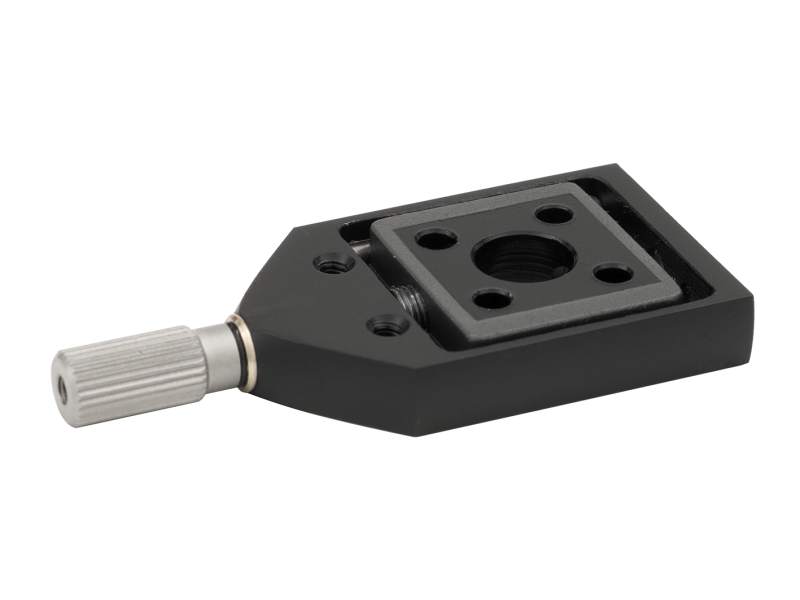

 M-MR1.4 Manual Linear Stage, Miniature, 4 mm Travel, 4.9 N Load Capacity
In Stock
 $230
Notes:

An adjustment screw is included with this stage.

Specifications

  • Axes of Travel
    X
  • Maximum Stage Travel
    4 mm
  • Centered Normal Load Capacity
    4.9 N
  • Sensitivity
    5 µm
  • Angular Deviation
    5 mrad
  • Material
    Alloy Steel
  • Bearings
    Dowel Pin Bearing
  • Drive Location
    Center drive

Features

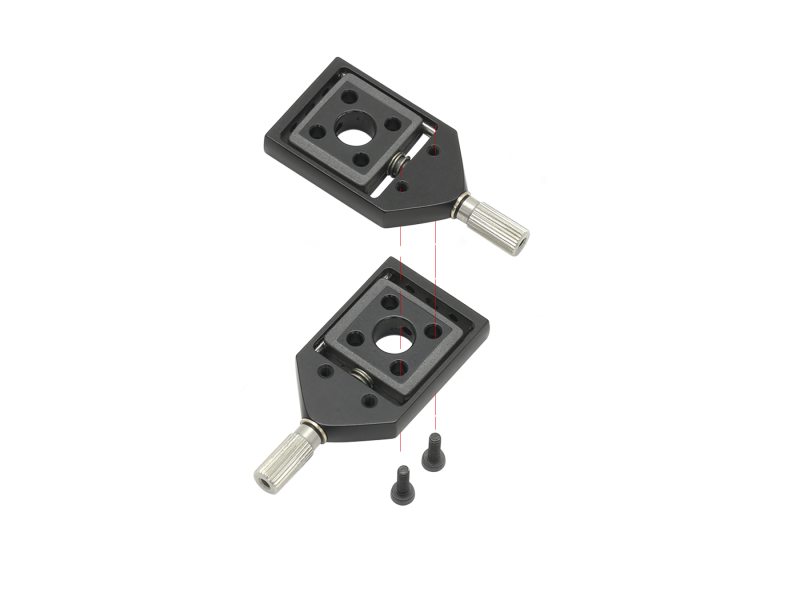

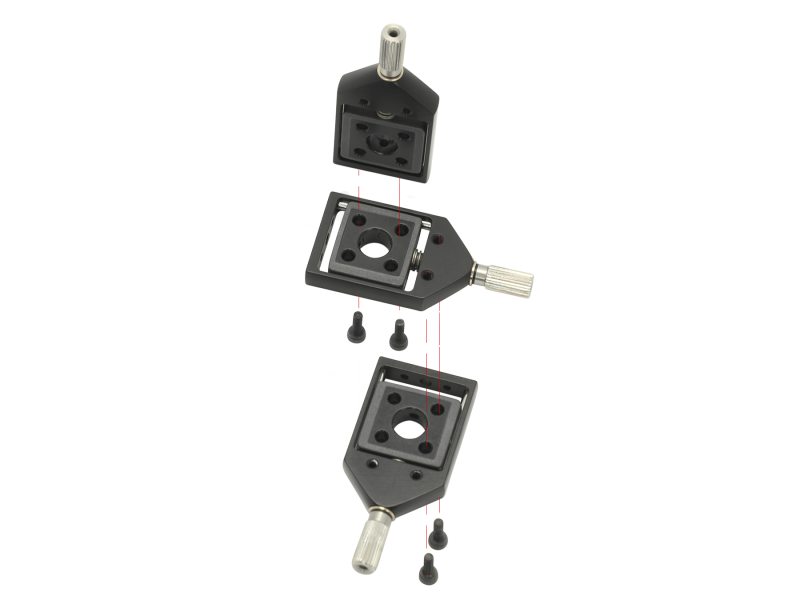

Build Miniature Multi-axis Stage Stacks

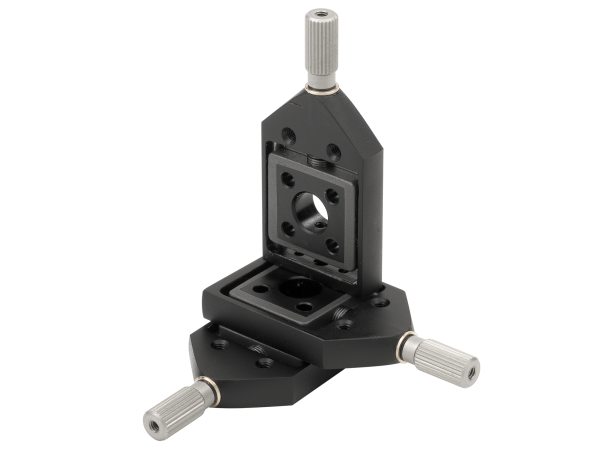

M-MR1.4 stages can be stacked to build an XY, XZ or XYZ stage configuration using the provided M2 mounting holes.
