Flange Mounted Manual Iris Diaphragms

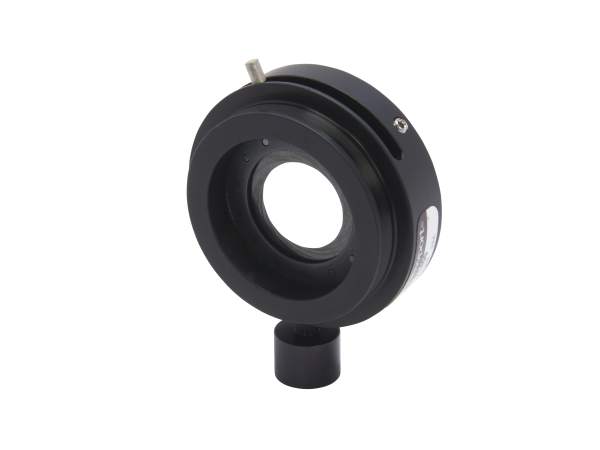

Manually operated iris diaphragms are an inexpensive and excellent option for light attenuation and can act as lens aperture stops as well. They are easily operated by the manual lever at the top of the diaphragm. These irises provide adjustable apertures, as small as 1 mm or as large as 36 mm, and have a standard 1.5 Inch Series flange for simple integration into Oriel^® lamp housings or detectors. If rod mounting is preferred, a 1/4-20 tapped hole is located on the bottom.

Useful for light attenuation or as light aperture stops
1.5 inch male and female flanges for simple coupling to Oriel components
Suitable for light sources up to 50 W
1/4-20 threaded hole for rod mounting

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Minimum Aperture	Maximum Aperture	Optical Axis Height	Thread Type	Avail.	Price
		62030Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange	UNIVERSAL		2.0 mm	36 mm	39 mm	1/4-20	4 Weeks	$450
		71400Manual Iris Diaphragm, 0.04 to 1.0 in. Range, 1.5 Inch Flange	UNIVERSAL		1 mm	25 mm	38 mm	1/4-20	In Stock	$230

Features

Wide Range of Possible Aperture Sizes

The Flange Mounted Manual Iris Diaphragms feature an easy-to-grip housing and provide continuously variable apertures for a multitude of optical applications, such as beam alignment, light attenuation, or as baffles to block spurious reflections and scattered light. Two models are available with aperture size ranges 2.0mm to 36 mm and 1 mm to 25 mm. Irises have a 1/4-20 threaded hole on the bottom for rod mounting.

Accessories

Flange Couplers and Adapters

Description	Compatibility	Avail.	Price
66292Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$160
66290Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$500
77791Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	In Stock	$300
77792Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL	Contact Us	$95
77790Flange Converter, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	Contact Us	$560
LT10-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 1-Inch LT Series	UNIVERSAL	In Stock	$105
77829Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw	UNIVERSAL	In Stock	$95
LT20-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 2-Inch LT Series	UNIVERSAL	In Stock	$365
