Manual Iris Diaphragm, 0.04 to 1.0 in. Range, 1.5 Inch Flange
Manual Iris Diaphragm, 0.04 to 1.0 in. Range, 1.5 Inch Flange
Model: 71400
In Stock
Product Series Overview

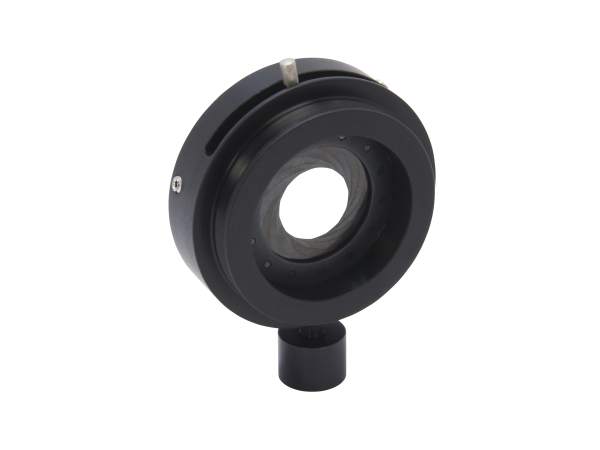

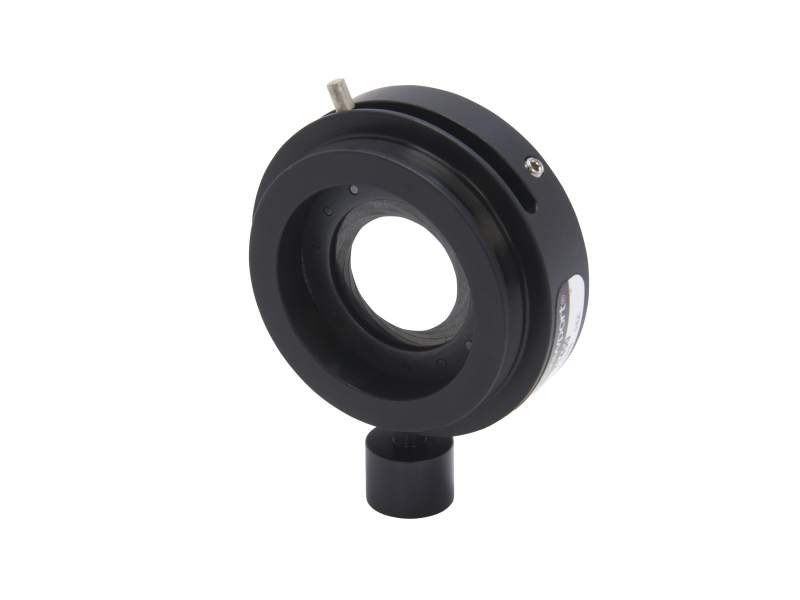

Flange Mounted Iris DiaphragmsThe 71400 Manual Iris Diaphragm is excellent for light attenuation or as a lens aperture stop. A lever on the top of the diaphragm controls the 1 to 25 mm aperture range. It has 1.5 Inch Series male and female flanges and a 1/4-20 tapped hole at the bottom.
Resources & Downloads
2D Product Drawings
Manual Iris Dimensions(476.2 kB, PDF)
