Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange

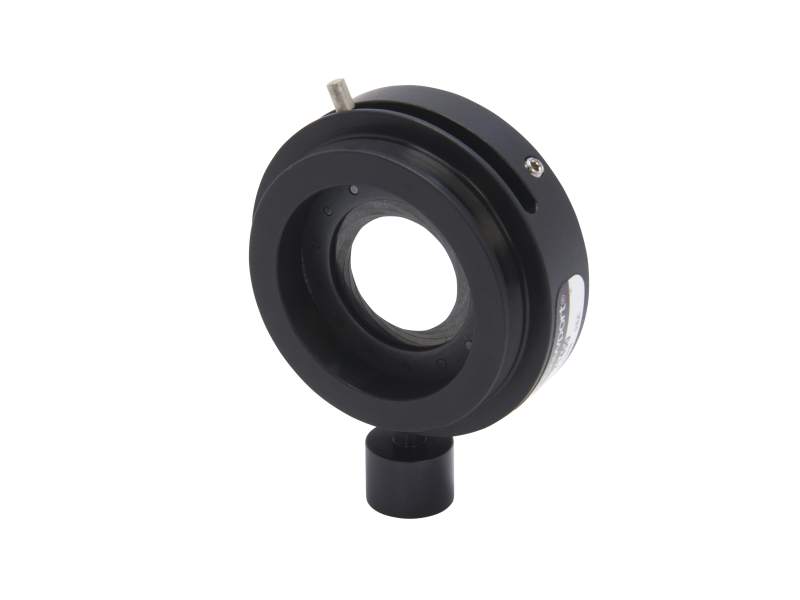

flange mounted iris diaphragm for light sources model 71400

The 62030 Manual Iris Diaphragm is excellent for light attenuation or as a lens aperture stop. A lever on the top of the diaphragm controls the 2.0 to 36.0 mm aperture range. It has 1.5 Inch Series male and female flanges and a 1/4-20 tapped hole at the bottom.

Specifications

Technical Specs

Type
Lever-Actuated Iris Diaphragm
Minimum Aperture
2.0 mm
Maximum Aperture
36 mm
Thread Type
1/4-20

Optical Axis Height
39 mm
Flange Series
1.5 Inch

Type
Lever-Actuated Iris Diaphragm
Minimum Aperture
2.0 mm
Maximum Aperture
36 mm
Thread Type
1/4-20

Optical Axis Height
39 mm
Flange Series
1.5 Inch

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

Manual Iris Dimensions(476.2 kB, PDF)
