Compare Model Drawings, CAD & Specs Type Fiber Type Fiber Connector Operating Wavelength Availability Price
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1310 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1310 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1310 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1310 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1310 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1550 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1550 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1550 nm
In Stock
$95
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1550 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1550 nm
In Stock
$95
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1550 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1550 nm
In Stock
$36
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1550 nm
In Stock
$30
In Stock
Fiber-optic Attenuator Singlemode FC/PC 1550 nm
In Stock
$35
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1550 nm
In Stock
$141
Fiber-optic Attenuator Singlemode FC/UPC 1310nm and 1550nm
$80
In Stock
Fiber-optic Attenuator Bare Fiber 1310nm and 1550nm
In Stock
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310nm and 1550nm
In Stock
In Stock
Fiber-optic Attenuator Singlemode FC/UPC 1310nm and 1550nm
In Stock
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310nm and 1550nm
In Stock
In Stock
Fiber-optic Attenuator Singlemode FC/UPC 1310nm and 1550nm
In Stock
$87
In Stock
Fiber-optic Attenuator Bare Fiber 1310nm and 1550nm
In Stock
In Stock
Fiber-optic Attenuator Singlemode FC/APC 1310nm and 1550nm
In Stock

Features

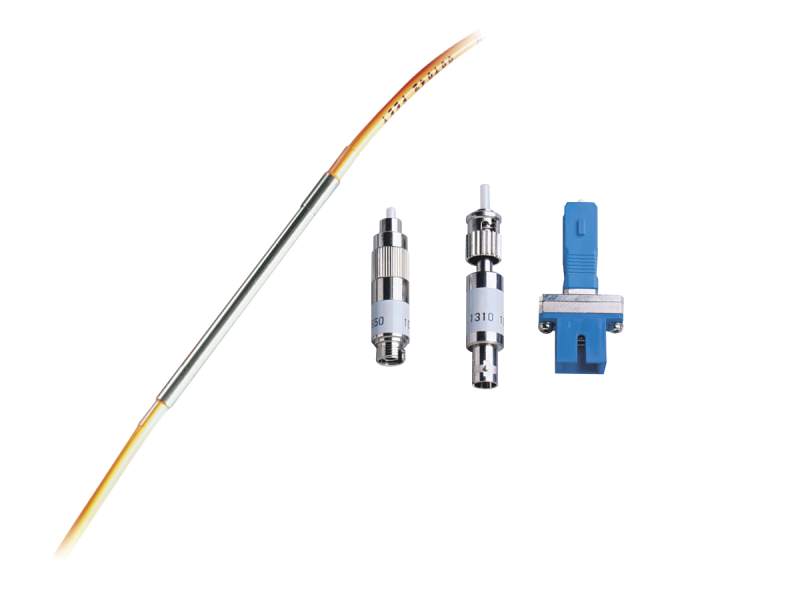

Compact, Bulkhead Packaged Versions

The F-ADAT Series Adaptor Type Attenuators are optimized for operation at either 1310 or 1550 nm and have a bandwidth of ±40 nm. These compact attenuators have a male connector at one end and a female connector at the other end, enabling them to be placed in the optical path without additional fiber pigtails and connectors. Attenuation accuracy is <±1.0 dB for values less than 10 dB, and <±10% for values greater than10 dB.

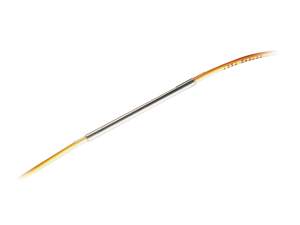

In-Line Fiber Pigtailed Attenuators

The F-FIA Series In-Line Fiber Attenuators are configured for dual window use at both 1310 and 1550 nm. Attenuation accuracy is <±0.3 dB for values up to 10 dB, and <±0.5 dB for values 10–20 dB. The product comes with 1 m fiber each side with a choice of termination option.
