Fiber Optic In-Line Polarizers
Fiber Optic In-Line Polarizers
The F-ILP Series is based on integrating a high PER micro-polarizer in a rugged stainless steel package for high optical performance and stability. These products are designed for fiber optic networks and measurement applications.
- Low insertion loss
- Compact size
- High extinction ratio
- Rugged design
- Bulkhead (No-pigtail) models available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-ILP-1-F-SP-FAPolarizer, 1310 nm, SM to PM, Pigtailed, FC/APC Connectors. | |||||
| F-ILP-1-F-SS-FAPolarizer, 1310 nm, SM to SM, Pigtailed, FC/APC Connectors. | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| F-ILP-1-F-SS-FPPolarizer, 1310 nm, SM to SM, Pigtailed, FC/PC Connectors. | In Stock | ||||
| F-ILP-2-F-SP-FAPolarizer, 1550 nm, SM to PM, Pigtailed, FC/APC Connectors. | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| F-ILP-2-F-SP-FPPolarizer, 1550 nm, SM to PM, Pigtailed, FC/PC Connectors. | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| F-ILP-2-F-SS-FAPolarizer, 1550 nm, SM to SM, Pigtailed, FC/APC Connectors. | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| F-ILP-2-F-SS-FPPolarizer, 1550 nm, SM to SM, Pigtailed, FC/PC Connectors. | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | F-ILP-2-N-SP-FPPolarizer, 1550 nm, SM to PM, FC/PC Bulkhead Connectors. | In Stock |
Specifications
- Center Wavelength1310 or 1550 nm
- Fiber TypeSM: Corning SMF-28
PM: Fujikura PM Panda fiber - Extinction Ratio30 or 40 dB (typical)
- Typical Insertion Loss0.3 dB
- Maximum Insertion Loss0.5 dB
- Return Loss50 dB
- Maximum Optical Power300 mW
- Center Wavelength Tolerance±50 nm
- Operating Temperature0 to 70°C
- DimensionsPigtailed: Ø5.5 x 35 mm
Bulkhead: Ø9.5 x 65 mm
Features
Pigtailed Versions Available

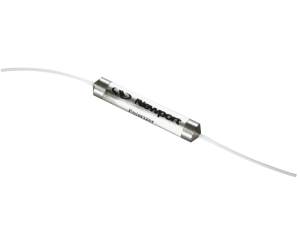

The pigtailed versions come with ~1 m long fiber pigtails with 900 µm loose tube. These devices are more economical and provide the user with added fiber length in a fiber optic system.
Rugged Bulkhead Design Available

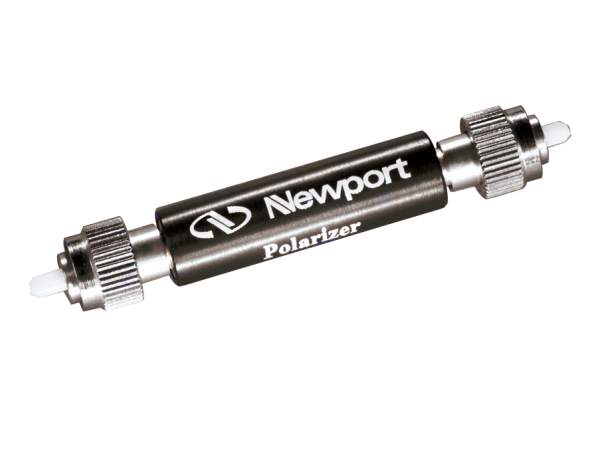

The Bulkhead models are compact, rugged devices designed without fiber pigtails. Without pigtails, these device make handling much easier as users do not need to worry about fragile fibers. These Bulkhead versions have the advantage of eliminating the polarization disturbances caused by fiber pigtails.
Compact with Excellent Performance
These compact devices offer low insertion loss, low back reflection and high extinction ratio.
Combinations of Single-mode (SM) and Polarization Maintaining (PM) Available
Users can select a combination of input and output fibers. SM to SM, PM to PM or SM to PM.
FC/PC and FC/APC Connectors Available
Users can select from both FC/PC and FC/APC connectors for both Pigtailed and Bulkhead Fiber Polarizers
Combine with F-POL Series for a Variable Attenuator
When combined with Newport's F-POL Series Manual Polarization Controllers the F-ILP Series can function as a variable fiber optic attenuator.
Applications
- Eliminating unwanted polarization states
- Polarization analyzing
- Polarization monitoring and control
- Signal-to-Noise Ratio (SNR) monitoring
- Polarization Mode Dispersion (PMD) monitoring
- Spectrum filtering and control
- Polarization Extinction Ratio (PER) improvement
- Fiber laser mode-locking
- Polarization interferometry
Resources
Tutorials
Application Notes
Polarization Control and Measurement for Optical Fibers(792.6 kB, PDF)
