Overview

Our battery biased fiber-optic detectors are coupled to a 1 m length singlemode fiber with an FC connector. We have already done the alignment for you with these fiber models as the PIN diodes used for these particular models are quite small (<40 µm).

Singlemode fiber-coupled photodetector
PIN photodiodes
Internal battery biased

See All Features

Products

Compare	Model	Compatibility	rankScore	Wavelength Range	3 dB Bandwidth	Fiber Type	Rise Time	Output Connector	Availability	Price	Brand
818-BB-35F Fiber-Optic Detector, 1000-1650 nm Battery Biased InGaAs Detector, 15 GHz, FC/UPC $1,850 In Stock	818-BB-35F Fiber-Optic Detector, 1000-1650 nm Battery Biased InGaAs Detector, 15 GHz, FC/UPC	UNIVERSAL	1.0	830-1650 nm	DC to 15 GHz	Singlemode	25 ps	SMA	In Stock	$1,850	Newport
818-BB-36F Fiber-Optic Detector, Battery Biased InGaAs, 22 GHz, FC/UPC $5,600 In Stock	818-BB-36F Fiber-Optic Detector, Battery Biased InGaAs, 22 GHz, FC/UPC	UNIVERSAL	1.0	1000-1650 nm	DC to 22 GHz	Singlemode	16 ps	SMA	In Stock	$5,600	Newport
818-BB-45F Fiber-Optic Detector, 500-900 nm Battery Biased GaAs Detector, 12.5 GHz, FC/UPC $1,575 Show	818-BB-45F Fiber-Optic Detector, 500-900 nm Battery Biased GaAs Detector, 12.5 GHz, FC/UPC	UNIVERSAL	1.0	500-890 nm	DC to 12.5 GHz	Singlemode	30 ps	SMA	Show	$1,575	Newport
818-BB-51F Fiber-Optic Detector, 830-2150 nm Battery Biased Extended InGaAs, 10 GHz, FC/UPC $1,840 In Stock	818-BB-51F Fiber-Optic Detector, 830-2150 nm Battery Biased Extended InGaAs, 10 GHz, FC/UPC	UNIVERSAL	1.0	830-2150 nm	DC to 10 GHz	Singlemode	28 ps	SMA	In Stock	$1,840	Newport

Show All

Specifications

Models	818-BB-35F	818-BB-45F	818-BB-51F	818-BB-36F
Detector Material	InGaAs	GaAs	Extended InGaAs	InGaAs
Detector Diameter	0.032 mm	0.060 mm	0.040 mm	0.020 mm
Detector Type	PIN	PIN	PIN	PIN
Wavelength Range	830-1650 nm	500-890 nm	830-2150 nm	1000-1650 nm
Bias Voltage	6 V	6 V	3 V	3 V
3 dB Bandwidth	DC to 15 GHz	DC to 12.5 GHz	DC to 10 GHz	DC to 22 GHz
Rise Time	25 ps	30 ps	28 ps	16 ps
Responsivity	0.65 A/W @ 1300 nm	0.38 A/W @ 850 nm	0.95 A/W @ 2000 nm	0.70 A/W @1300 nm
Fiber-Optic Connector	FC/UPC	FC/UPC	FC/UPC	FC/UPC
Fiber Type	Singlemode	Singlemode	Singlemode	Singlemode
NEP	28 pW/√Hz at 1300 nm	<45 pW/√Hz	<20 pW/√Hz @ 2000 nm	26 pW/√Hz at 1300 nm
Dark Current	< 3 nA	< 0.5 nA	<1 µA	< 1 nA
Saturation Current	10 mA	10 mA
Reverse Breakdown	25 V	30 V
Junction Capacitance	<0.12 pF	<0.3 pF
Output Connector	SMA	SMA	SMA	SMA
Thread Type	8-32 and M4	8-32 and M4	8-32 and M4	8-32 and M4

Specifications

Models	818-BB-35F	818-BB-45F	818-BB-51F	818-BB-36F
Detector Material	InGaAs	GaAs	Extended InGaAs	InGaAs
Detector Diameter	0.032 mm	0.060 mm	0.040 mm	0.020 mm
Detector Type	PIN	PIN	PIN	PIN
Wavelength Range	830-1650 nm	500-890 nm	830-2150 nm	1000-1650 nm
Bias Voltage	6 V	6 V	3 V	3 V
3 dB Bandwidth	DC to 15 GHz	DC to 12.5 GHz	DC to 10 GHz	DC to 22 GHz
Rise Time	25 ps	30 ps	28 ps	16 ps
Responsivity	0.65 A/W @ 1300 nm	0.38 A/W @ 850 nm	0.95 A/W @ 2000 nm	0.70 A/W @1300 nm
Fiber-Optic Connector	FC/UPC	FC/UPC	FC/UPC	FC/UPC
Fiber Type	Singlemode	Singlemode	Singlemode	Singlemode
NEP	28 pW/√Hz at 1300 nm	<45 pW/√Hz	<20 pW/√Hz @ 2000 nm	26 pW/√Hz at 1300 nm
Dark Current	< 3 nA	< 0.5 nA	<1 µA	< 1 nA
Saturation Current	10 mA	10 mA
Reverse Breakdown	25 V	30 V
Junction Capacitance	<0.12 pF	<0.3 pF
Output Connector	SMA	SMA	SMA	SMA
Thread Type	8-32 and M4	8-32 and M4	8-32 and M4	8-32 and M4

Features

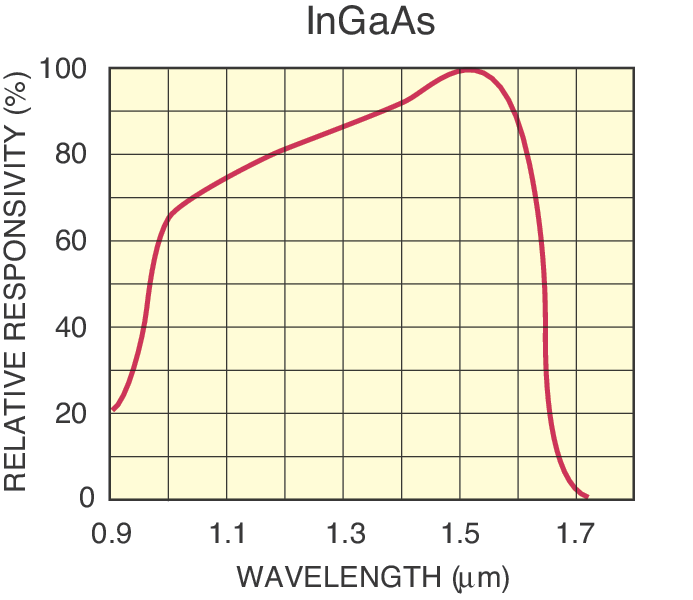

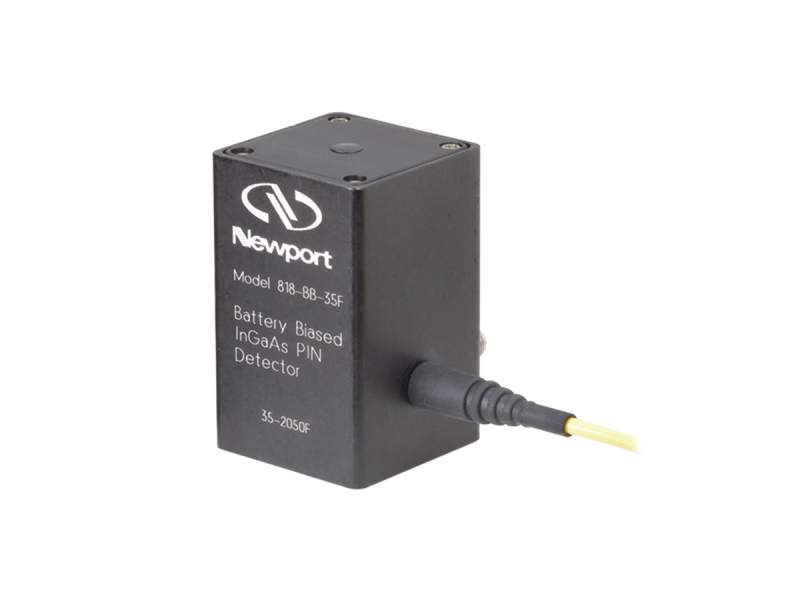

Biased InGaAs Fiber-Optic Detector

The 818-BB-35F features a 0.032 mm diameter battery biased InGaAs photodetector with a wavelength range of 1000 to 1650 nm. The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector. The PIN Photodetector utilizes the photovoltaic effect to convert optical power into an electrical current.

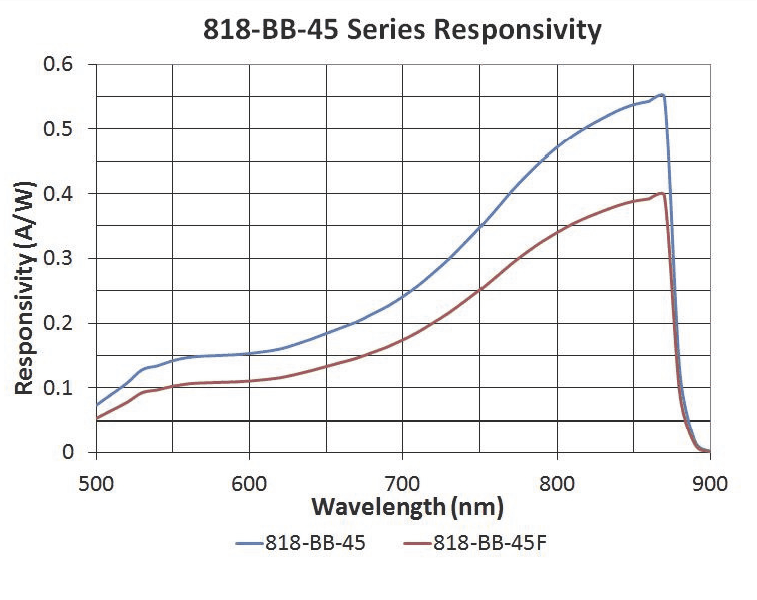

Battery Biased GaAs Fiber-Optic Detector

The 818-BB-45F features a high speed 0.04 mm diameter battery biased GaAs photodetector with a wavelength range of 400 to 900 nm. The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector.

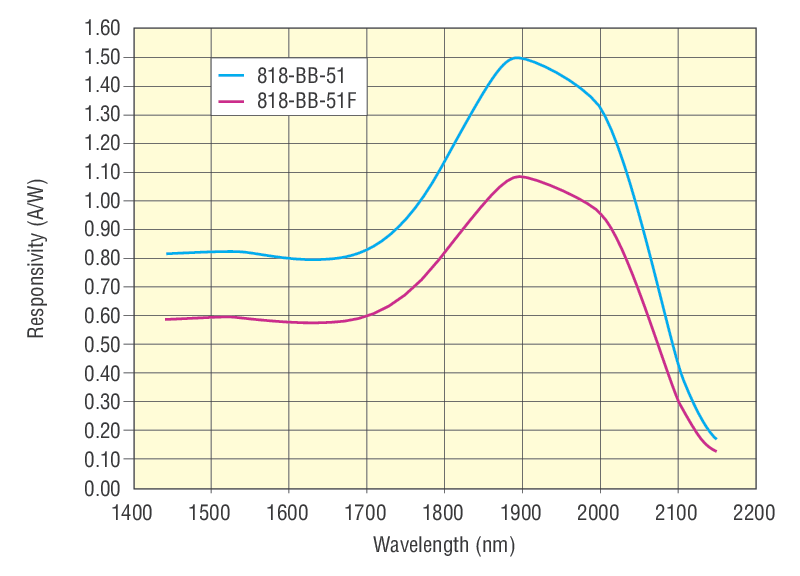

Extended InGaAs Fiber-Optic Detectors

The 818-BB-51F features a high speed 0.04 mm diameter battery biased Extended InGaAs photodetector with an extended wavelength range of 1475 to 2100 nm allowing monitoring of Thulium (Tm) and Holmium (Ho) doped lasers and other NIR lasers. The detector is coupled to a 1 meter singlemode SMF 28e fiber with a FC/UPC connector.

DC to 12.5 GHz Bandwidth

All of these high speed battery biased fiber-optic detectors offer a 3 dB bandwidth from DC to 12.5 GHz. The Frequency response of the 818-BB-51F is shown below.

Frequency response of the 818-BB-51F

Measure Pulsewidth or Frequency Response

These high speed detectors make a great fiber-optic front end for a scope or spectrum analyzer. When terminated into 50Ω into an oscilloscope, the pulse width of a laser can be measured. When terminated into a spectrum analyzer, the frequency response of a laser can be measured.

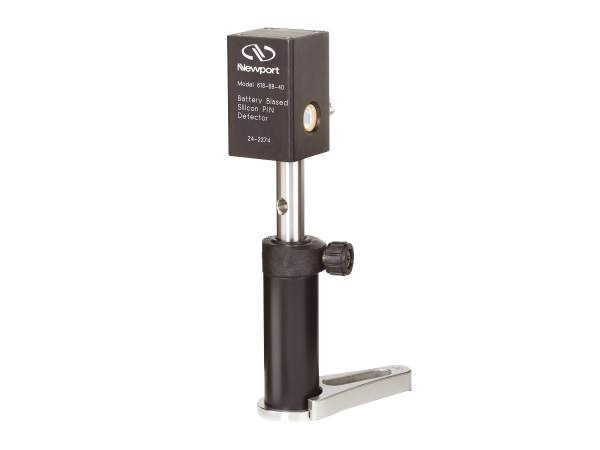

Optical Post Mounting

An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.

Handle With ESD Care

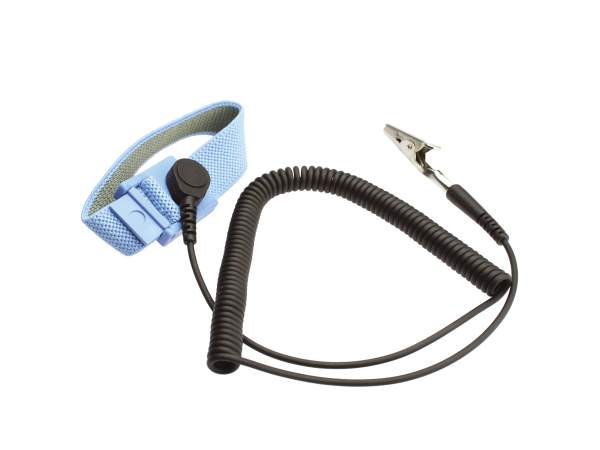

These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP, when unpacking and handling these devices.
